TRÓJNIK / EQUAL TEES ZASLEPKA / CAPS TRÓJNIK REDUKCYJNY / REDUCING TEES ZWEZKA SYMETRYCZNA/CONCENTRIC REDUCERS
Place of Origin | China |
---|---|
Brand Name | Best |
Certification | API/CE/ISO /TUV |
Model Number | 1/2''-48'' |
Minimum Order Quantity | 1 PCS |
Price | 1 usd/pcs |
Packaging Details | wooden case and pallet or as per client demand |
Delivery Time | oil gas water industrial |
Payment Terms | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability | 100000 Ton/ year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Carbon Steel | Technics | Forged |
---|---|---|---|
Connection | Welding | Surface | Black Painting, Rust-proof Oil, |
Tolerances | ASME B16.9 | Usage | Oil Gas Water Industrial |
Standard | Oil Gas Water Industrial | Production Year | 2018 |
Product Name : BUTT WELDING FITTINGS ACCORDING TO ANSI/ASME from 1/2 in. to 24 incertified acc. to EN 10204/3.1.
Fitting specifications
Materials
carbon steels body: 1.0570
press ring sets: 42CrMo4 (1.7225, 1.7227)
stainless steels body: 1 .4404, 1.4571
press ring sets: 42CrMo4 (1.7225, 1.7227)
Outside pipe diameter (acc. to DIN/EN and ASTM)
carbon steels 10.0 – 88.9 mm
stainless steels 10.0 – 76.1 mm
Temperatures -55°C - 400°C (depending on approval)
Pressures
carbon steels up to 630 bar operating pressure
stainless steels up to 260 bar operating pressure
Coating
carbon steels body and press ring sets: zinc-nickel 6-16 μm
stainless steels press ring sets: zinc-nickel 6-16 μm
Seamless precision steel tubes
Standard EN 10305-1
Dimensions 4 x 0.5 mm to 200 x 10 mm
Lengths 4 to 7 m
other lengths and fixed lengths on request
Delivery conditions +C (BK)
+N (NBK)
+SR (BKS)
other delivery conditions on request
Materials Steel grade (EN)
E235
E355
other materials on request
Certification 2.2 acc. to EN 10204
other certifications on request
Seamless precision steel tubes for hydraulic and pneumatic lines (HPL-tubes)
Standard EN 10305-4
Dimensions 4 x 0.5 mm to 114.3 x 20 mm
Lengths 6 m
other v and fixed lengths on request
Delivery conditions +N (NBK)
other delivery conditions on request
Materials Steel grade (EN)
E235
E355
other materials on request
Surface treatment bonderized and oiled, non-bonderized and oiled, outside galvanized and
yellow chromated or passivated (CR-VI-free) acc. to End of Life Vehicle Directive)
other surface treatment on request
Ends tube ends closed with plugs or caps
Marking continuous marking along the entire tube length
Certification 3.1 acc. to EN 10204
other certifications on request
KS : KOREAN INDUSTRIAL STANDARDS
KSB 1522 : Steel Butt Welding Pipe Fittings for Oidinary use and Fuel Gas.
KSB 1541: Steel Butt Welding Pipe Fittings.
KSB 1542 : Steel Socket Welding Pipe Fittings.
KSB 1543 : Steel Plate Butt Welding Pipe Fittings.
JIS : JAPANESE INDUSTRIAL STANDARDS
JIS B2311 : Steel Butt Welding Pipe Fittings for Ordinary use.
JIS B2312: Steel Butt Welding Pipe Fittings.
JIS 2313 : Steel Plate Butt Welding Pipe Fittings.
JIS B2316 : Steel Socket Welding Pipe Fittings.
ASTM : AMERICAN SOCIETY FOR TESTING AND MATERIALS
ASTM A105: Carbon Steel Forgings for Piping Applications
ASTM A182: Forged or Rolled Alloy Steel Pipe Flanges, Forged Fittings, and Valves and Parts for high Temperature Service
ASTM A234: Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A350: Carbon and Low-Alloy Steel Forgings, Requiring Notch
Toughness Testing for Piping Components
ASTM A403 : Wrought Austenitic Stainless Steel Piping Fittings
ASTM A420 : Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
ASTM A694: Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service
ASTM A815 : Wrought Ferritic, Ferritic/Austenitic, and Martensitic
Stainless Steel Piping Fittings
ASTM A860: Wrought High-Strength Low-Alloy Steel Butt-Welding
Fittings
ASTM B366 : Factory-Made Wrought Nickel and Nickel Alloy Fittings
MSS : MANUFACTURERS STANDARDIZATION SOCIETY OF THE VALVE AND FITTINGS INDUSTRY
MSS SP-25: Standard Marketing System for Valves, Fittings, Flanges and Unions.
MSS SP-43: Wrought Stainless Steel Butt Welding Fittings.
MSS SP-44: Standard for Steel Pipe Line Flanges.
MSS SP-75: Specification for High Test Wrought Butt Welding Fittings.
MSS SP-79: Socket Welding Reducer Inserts.
MSS SP-83: Carbon Steel Pipe Union Socket welding and Threaded.
MSS SP-87: Factory-Made Butt Welding Fittings for Class 1 Nuclear Piping Applications.
MSS SP-95: Swage(d) Nipples and Bull Plugs.
MSS SP-97: Integrally Reinforced Forged Branch Outlet Fittingssocket
Welding, Threaded and Butt Welding Ends
ASME : AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASME : ASME BOILER AND PRESSURE VESSEL CODE AN
INTERNATIONAL CODE
ASME B16.5 : Pipe Flanges and Flanged Fittings.
ASME B16.9 : Factory Made Wrought Steel Butt Welding Fittings.
ASME B16.11 : Forged Fittings, Socket welding and Threaded
ASME B16.25 : Butt Welding Ends.
ASME B36.10 : Welded and Seamless Wrought Steel Pipe.
ASME B36.19: Stainless Steel Pipe.
ASME B31.1 : Power piping.
ASME B31.3: Process piping.
ASME Section : Materials.
ASME Section: Rules for Construction of Nuclear Facirity Components.
ASME Section:Nondestructive Examination.
ASME Section: Rule for Construction of Pressure Vessels.
ASME Section: Welding and Brazing Qualifications.
Product Information :
size | 1/2"-72"(DN15-DN1200)1.5*1.5~80*80 |
connection | welding |
technic | forged |
varieties | SCH20, SGP, STD, SCH40, SCH80, SCH160 |
material | carbon steel ,alloy steel ,stainless steel WPBA234,Q235,20#,A420 A403-WP304,A403-WP316,A403-WP316L,A403-WP317,A403-WP321 etc. |
standard | BS, DIN ,JIS,etc. ANSI B16.9/16.28, ASTM,API 5L, DIN2605/2615/2616, JIS P2311/2312 ASME B36.10M---1996 |
connection | welding |
quality | first grade |
Certification | ISO9001 - 2000, CE, SGS, etc. |
Application | petroleum, electricity, chemicals, natural gas, construction, shipbuilding and other fields because of its high pressure, high temperature, etc |
Packaging | wooden case,pallet ,container or in accordance with the requirements of customers |
principle | quality first,customer first,credit first, |
delivery time | 7-25 days after payment |
payment | L/C T/T |
Surface treatment | Black rust-proof oil, transparent oil, hot galvanizing |
notes | The bevel can be made according to the special requirements of the customers |
others | we can also produce the products accordance with the requirements of customers |
Pipe Caps Information :
PIPE CAP | |
Type | BW(butt-welding); High pressure cap ; Threaded cap, Seamless cap; Welded cap, carbon steel pipe fitting |
Standard | ANSI B16.9 / 16.28, API 5L, ASME B36.10M---1996, DIN2605/2615/2616, JIS P2311/2312 |
Size | 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded) |
Wall Thickness | SGP ~ SCH XXS |
Surface treatment | Transparent oil, rust-proof oil or hot galvanizing. |

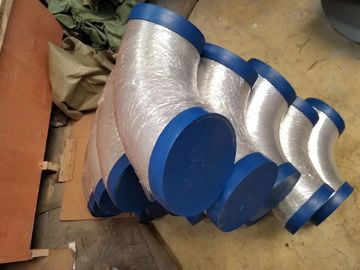

Elbow Information :
ELBOW TECHNICAL INFORMATION: | |
Type | BW(butt-welding); SW(socket-welding); Threaded elbow; Seamless elbow; Welded elbow carbon steel pipe fitting |
Standard |
ASME/ANSI B16.9, B16.11, B16.28, B16.5; MSS SP-43, 83, SY/T051-1998, SY5257-91 |
Size | 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded) |
Wall Thickness | SCH 5 ~ SCH XXS |
Radius | LR(R=1.5D); SR(R=1.0D), Special design available. |
Angel | 45°,60°, 90°,180°,Special design available. |
Surface treatment | Transparent oil, rust-proof black oil or hot galvanized. |

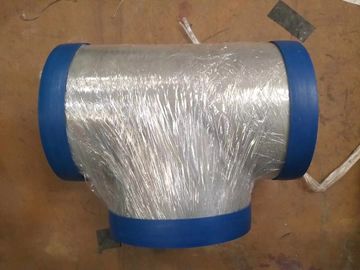

Tee Information :
TEE | |
Type carbon pipe fittings | Equal tee; Reducing tee; Y type; 45°type; welded tee; seamless tee; BW(butt-welding) |
Standard | ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS |
Size | 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded) |
Wall Thickness | SCH 5 ~ SCH XXS |
Surface treatment | Transparent oil, rust-proof oil or hot galvanizing. |
Company Information :
We are a real and direct manufacturer of B.W. pipe fitting,such as elbow, bend, reducer,cap, flange and tee. The above item is a very common-uesd Tee.
Nearly every mill of pipe fitting can produce.But capability of manufacturing is not the
key to make the customer sastified.The capability of quality-controlling shows
the importance.
In order to make every piece of products in good quality, Best Pipeline, invested USD285000.00 to build professional testing laboratory and trained a team of technicians.
So, the metallographical examination,chemicial composition, mechnical properties
,hardness and all out-side measurements will be carefully checked and well-controlled.
With the development of 10 years, our pipe fittings are exported to all over the world, the middle east, southeast Asia, south America, central Asia, Taiwan etc.
Product Show

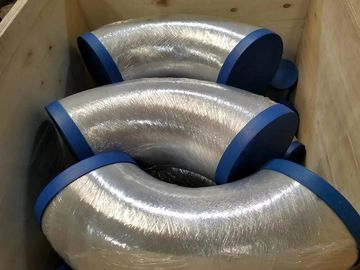

Packing &Shipping
