xProduct Details
| Material | C35 | Steel Number | 1.0501 |
|---|---|---|---|
| Type | Weld Butt Fittings | Standard | Asme B16.9 |
Product Description

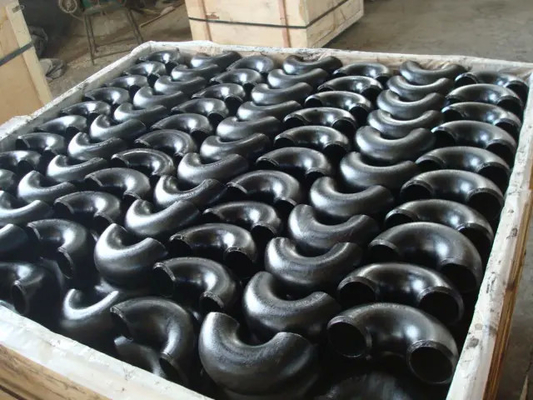

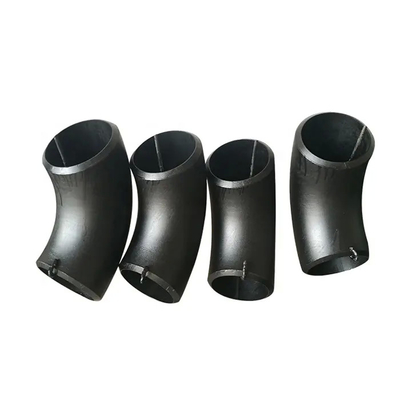

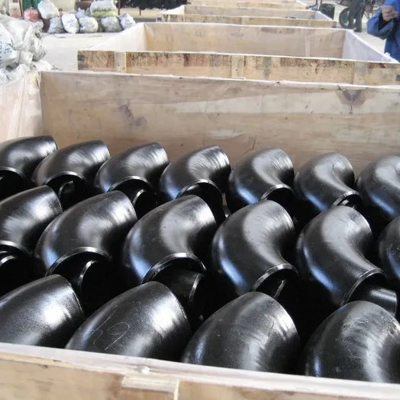

C35 butt weld fitting 1.0501 Weld butt fittings ASME B16.9 Seamless Steel fittings
| Grade : | C35 butt weld fitting | |||
| Number: | 1.0501 weld butt fittings | |||
| Classification: | Non-alloy quality steel | |||
| Standard: |
|
C35 butt weld fitting Chemical composition % of steel C35 (1.0501): EN 10277-2-2008
| Cr + Mo + Ni = max 0.63 |
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.32 - 0.39 | max 0.4 | 0.5 - 0.8 | max 0.4 | max 0.045 | max 0.045 | max 0.4 | max 0.1 |
C35 butt weld fitting Mechanical properties of steel C35 (1.0501)
| Nominal thickness (mm): | to 16 | 16 - 100 | 100 - 250 | 250 - 500 | 500 - 1000 |
| Rm - Tensile strength (MPa) (+N) | 550 | 520 | 500 | 480 | 470 |
| Nominal thickness (mm): | 5 - 10 | 10 - 16 | 16 - 40 | 40 - 63 | 63 - 100 |
| Rm - Tensile strength (MPa) (+C) | 650-1000 | 600-950 | 580-880 | 550-840 |
520-800
|
| Nominal thickness(mm): | to 16 | 16 - 100 | 100 - 250 | 250 - 500 | 500 - 1000 |
| Re - Upper yield strength or Rp0.2 - 0.2% proof strength (MPa) (+N) |
300 | 270 | 245 | 220 | 210 |
| Nominal thickness(mm): | 5 - 10 | 10 - 16 | 16 - 40 | 40 - 63 | 63 - 100 |
| Rp0.2 0.2% proof strength (MPa) (+C) | 510 | 420 | 320 | 300 | 270 |
| A - Min. elongation at fracture (%) transverse, (+N) | 15 |
| Nominal thickness (mm): | 5 - 10 | 10 - 16 | 16 - 40 | 40 - 63 | 63 - 100 |
| A - Min. elongation at fracture (%) (+C) | 6 | 7 | 8 | 9 | 9 |
| Nominal thickness (mm): | to 16 | 16 - 100 | 100 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) (+N) | 18 | 19 | 19 |
| Brinell hardness (HBW): (+SH) | 154 - 207 |
C35 butt weld fitting Properties of steel C35 (1.0501)
| Weldability: It can be welded quite well without any precautions. Hardenability: Low hardenability; core quenching in water till a diameter of 12-15 mm; as far as bigger diameters are concerned, it hardens only till a certain depth, inversely proportional to diameter, like all nonalloy steels with medium-high carbon content. |
C35 butt weld fitting Equivalent grades of steel C35 (1.0501)
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
Spain UNE |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Austria ONORM |
Russia GOST |
Inter ISO |
||||||||||||||||||||||
| C35 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
