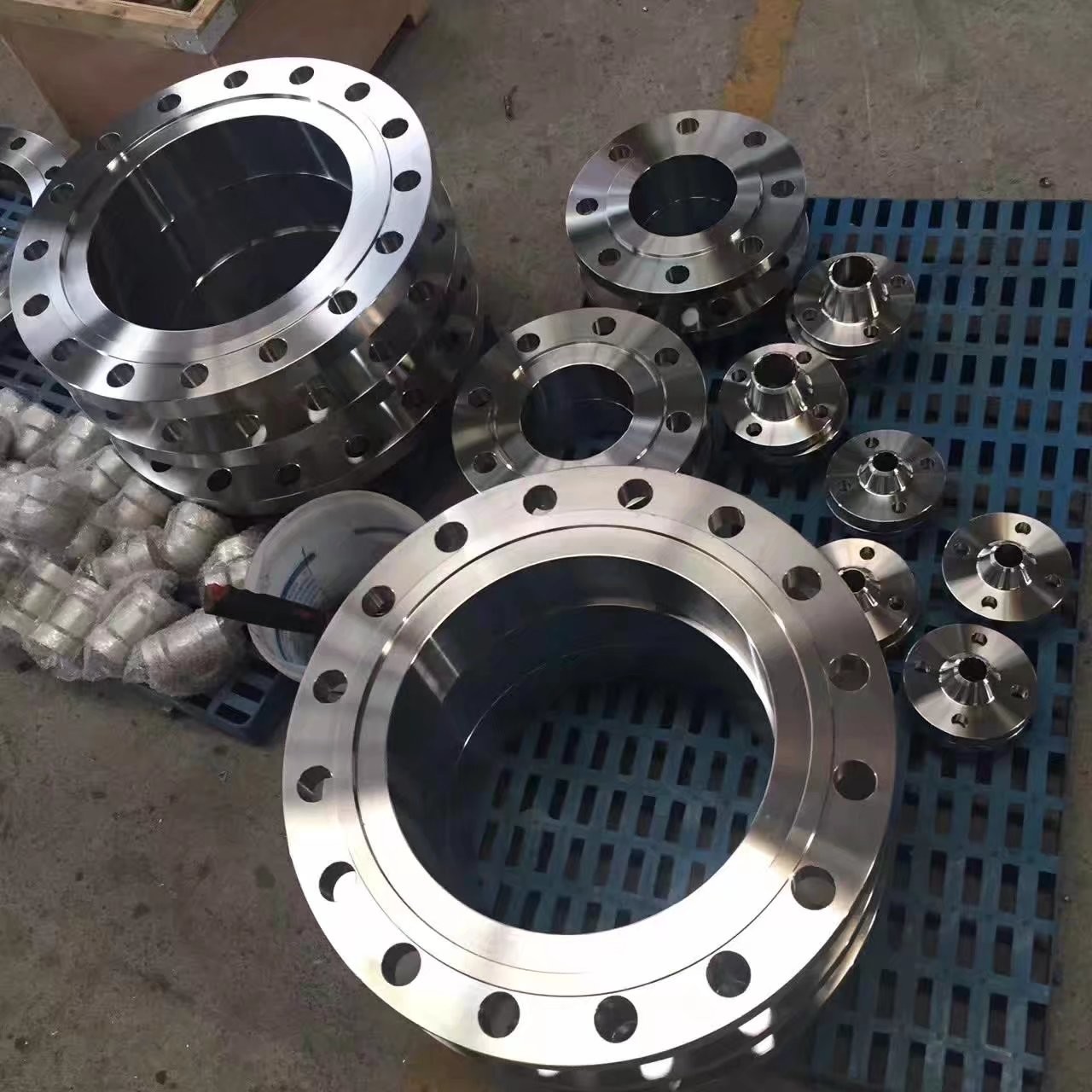

Copper Nickel Forged Steel Flanges Bulkhead Pieces DIN 86068 Carbon Steel Fittings
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO/PED |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1 Pcs |
| Price | 1 usd/pcs |
| Packaging Details | Standard export seaworthy package,by wooden box,or as required |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C/ TT |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Lap Joint Flange | Pressure | 300LBS |
|---|---|---|---|
| Material | 304L | Place Of Origin | China |
| Model Number | RC-BL Flange | Type | Forged Steel Flanges |
| High Light | stainless steel flanges,weld neck flanges |
||
Product Description
Product Name :COPPER NICKEL FLANGES
bulkhead pieces - DIN 86068 in copper nickel and
carbon steel
fittings
STANDARD : DIN 86 068
Kołnierz luźny typ 02 z wg EN 1092-1 PN 6 Kołnierz luźny typ 02 z wg EN 1092-1 od PN 10 do PN 25
Kołnierz płaski typ 01 EN 1092-1 od PN 10 do PN 16 Kołnierz płaski typ 01 EN 1092-1 od PN 2,5 do PN 6 Kołnierz płaski
Kołnierz szyjkowy wg DIN 2631 PN 6 Kołnierz szyjkowy wg DIN 2632 PN 10 Kołnierz szyjkowy wg DIN 2633 PN 16
Kołnierz szyjkowy 900 IBS wg ANSI B16.5 Kołnierz szyjkowy 1500 IBS wg ANSI B16.5 Kołnierz szyjkowy 2500 IBS wg ANSI B
A táblázatokban a PN 6, PN 10, PN 16, PN 25, PN 40
nyomásfokozatokat tüntettük fel.
Egyedi ajánlatkérés alapján akár
PN 63, PN 100, PN 160 nyomásfokozatú
karimákra is adunk ajánlatot.
Járatos anyagminőségek:
C22.8 ( P250GH ), St 37, St 37-2, St 35.8,
CSAPÁGY CSÖVEK, CSAPÁGY GYŰRÜK
Csapágykészítéshez hengerelt és kovácsolt csapágygyűrű
Méretválaszték: Ø 34,1-4000 mm
Szabványok:
Minőségek: 100Cr6
A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.
Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.
Forged steel flanges are made in seven primary ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500
Flange Types
· Weld Neck Flanges
· Slip-On Flanges
· Lap Joint Flanges
· Threaded Flanges
· Socket Weld Flanges
· Blind Flanges
Forged Flanges
| Size : | ½" TO 54" | ||||||||||||
| Pressure Rating : | 150#, 300#, 600#, 900#, 1500#, 2500# | ||||||||||||
| Material : |
|
||||||||||||
| Standards : | ASME B 16.5, ASME B 16.47, API 6A | ||||||||||||
| Type : | SORF, WNRF, SWRF, BLRF, Threaded etc. | ||||||||||||
| Specials : | Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc. |
150lb Flange
Length through Hub Y
| Nominal Bore | Pipe OD A | Flange dia. B | Raised Face dia. D | Flange Thickness T | Welding Neck | Slip-on Screwed Socket-weld | Bolt PCD | No. of Bolts | Bolt Hole dia. |
| 15 | 21.4 | 88.9 | 34.9 | 11.1 | 47.6 | 15.9 | 60.3 | 4 | 15.9 |
| 20 | 27.0 | 98.4 | 42.9 | 12.7 | 52.4 | 15.9 | 69.8 | 4 | 15.9 |
| 25 | 34.1 | 107.9 | 50.8 | 14.3 | 55.6 | 17.5 | 79.4 | 4 | 15.9 |
| 32 | 42.9 | 117.5 | 63.5 | 15.9 | 57.1 | 20.6 | 88.9 | 4 | 15.9 |
| 40 | 48.4 | 127.0 | 73.0 | 17.5 | 61.9 | 22.2 | 98.4 | 4 | 15.9 |
| 50 | 60.3 | 152.4 | 92.1 | 19.0 | 63.5 | 25.4 | 120.6 | 4 | 19.0 |
| 65 | 73.0 | 177.8 | 104.8 | 22.2 | 69.8 | 28.6 | 139.7 | 4 | 19.0 |
| 80 | 88.9 | 190.5 | 127.0 | 23.8 | 69.8 | 30.2 | 152.4 | 4 | 19.0 |
| 90 | 101.6 | 215.9 | 139.7 | 23.8 | 71.4 | 31.7 | 177.8 | 8 | 19.0 |
| 100 | 114.3 | 228.6 | 157.2 | 23.8 | 76.2 | 33.3 | 190.5 | 8 | 19.0 |
| 125 | 141.3 | 254.0 | 185.7 | 23.8 | 88.9 | 36.5 | 215.9 | 8 | 22.2 |
| 150 | 165.1 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 168.3 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 | |
| 200 | 219.1 | 342.9 | 269.9 | 28.6 | 101.6 | 44.4 | 298.4 | 8 | 22.2 |
| 250 | 273.1 | 406.4 | 323.8 | 30.2 | 101.6 | 49.2 | 361.9 | 12 | 25.4 |
| 300 | 323.9 | 482.6 | 381.0 | 31.7 | 114.3 | 55.6 | 431.8 | 12 | 25.4 |
| 350 | 355.6 | 533.4 | 412.7 | 34.9 | 127.0 | 57.1 | 476.2 | 12 | 28.6 |
| 400 | 406.4 | 596.9 | 469.9 | 36.5 | 127.0 | 63.5 | 539.7 | 16 | 28.6 |
| 450 | 457.2 | 635.0 | 533.4 | 39.7 | 139.7 | 68.3 | 577.8 | 16 | 31.7 |
