EN10253-2 Standard P355N Steel Elbow Butt Weld Fitting in P265GH Material
Basic Properties
Place of Origin:
china
Brand Name:
OK
Certification:
CE
Model Number:
1/2‘’-84''
Trading Properties
Minimum Order Quantity:
1 pcs
Price:
USD
Payment Terms:
D/A,L/C,D/P,T/T,Western Union,
Supply Ability:
10000 PCS
Product Summary
EN10253-2 Standard P355N Steel Elbow for high-pressure piping systems. Available in P355N, P235TR2, and P265GH materials with CE certification. Sizes range from 1/2'' to 84 inches. Features outstanding durability, heat resistance, and chemical resistance for robust industrial applications.
Product Details
Highlight:
P265GH Steel Elbow
,Pipe Fittings Steel Elbow
,P355N Steel Elbow
Size:
1/2‘’ To 84inch
Certificates:
Ce
Material:
P355n , P235tr2 , P265gh
Standard:
En10253-2
Product Description
EN10253-2 Standard P355N Steel Elbow for Pipe Fittings in P265GH Material
P355N steel (material number 1.0562) is a highly versatile grade widely used for manufacturing piping components including elbows and reducers. As part of the P-Grade steel family, it is specifically designed for high-pressure applications, ensuring outstanding durability and resistance to heat and chemicals. This makes it ideal for constructing robust elbows that change flow direction in piping systems.
Other notable materials in similar applications include P235TR2 steel elbows and P265GH steel reducers. P235TR2 offers excellent toughness at lower temperatures, while P265GH excels in high-temperature environments, providing suitable options for various industrial requirements.
These materials form a comprehensive portfolio addressing different piping needs—from altering flow direction with elbows to adjusting pipe sizes with reducers. Their superior strength and resilience make them indispensable for reliable fluid transfer systems under varied pressures and temperatures.
Material Specifications
| Grade | P355N |
|---|---|
| Number | 1.0562 |
| Classification | Non-alloy room temperature quality steel |
| Standard |
EN 10028-3: 2009 Flat products made of steels for pressure purposes. Weldable fine grain steels, normalized EN 10216-3: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Alloy fine grain steel tubes EN 10217-3: 2002 Welded steel tubes for pressure purposes. Alloy fine grain steel tubes EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements |
Chemical Composition (%) - EN 10028-3-2009
According to EN 10216-3:2014: C≤0.2; 0.9≤Mn≤1.7; S≤0.02; N≤0.02; Ti≤0.04
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| max 0.18 | max 0.5 | 1.1 - 1.7 | max 0.5 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.1 | max 0.012 | max 0.05 | max 0.03 | max 0.02 | max 0.3 | Nb+Ti+V < 0.12 |
Mechanical Properties
Tensile Strength (Rm) - MPa (+N)
| Nominal thickness (mm) | to 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|
| Rm | 490-630 | 470-610 | 460-600 | 450-590 |
Minimum Yield Strength (ReH) - MPa (+N)
| Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|---|---|
| ReH | 355 | 345 | 335 | 315 | 305 | 295 |
Impact Energy (KV) - J (+N)
| Temperature | -20°C | 0°C | +20°C |
|---|---|---|---|
| Transverse | 27-30 | 35-40 | 39-50 |
| Longitudinal | 40-45 | 47-65 | 55-75 |
Elongation at Fracture (A) - % (+N)
| Nominal thickness (mm) | to 60 | 60 - 250 |
|---|---|---|
| A | 22 | 21 |
Equivalent Grades
Warning! Only for reference EU
| EN | USA | Germany DIN,Wnr | Japan JIS | France AFNOR | England BS | Italy UNI | Spain UNE | China GB | Sweden SS | Finland SFS | Russia GOST | Inter ISO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P355N | A537CL1 | StE355 | SM490B | A510AP E355R | 223Gr.490 50DD | FeE355KG | AE355KG | 20 | 2106 | Fe355DP | 15GF | E355 |

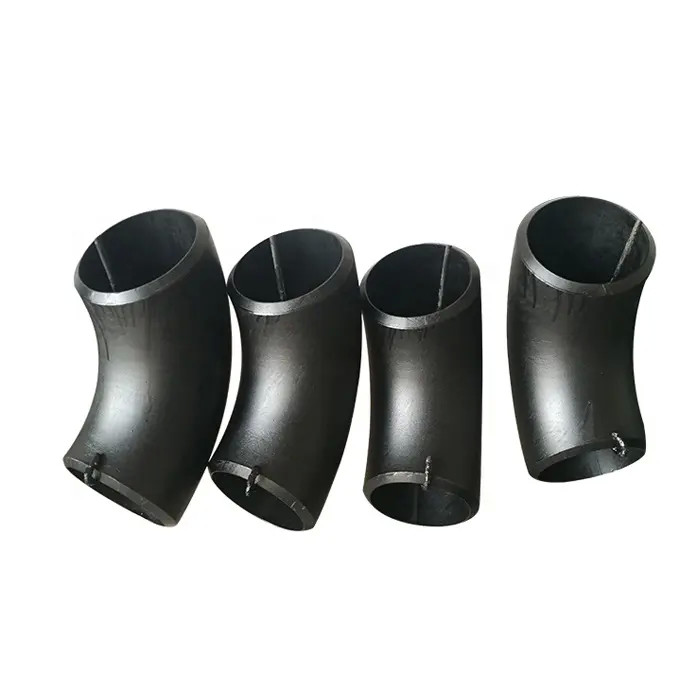

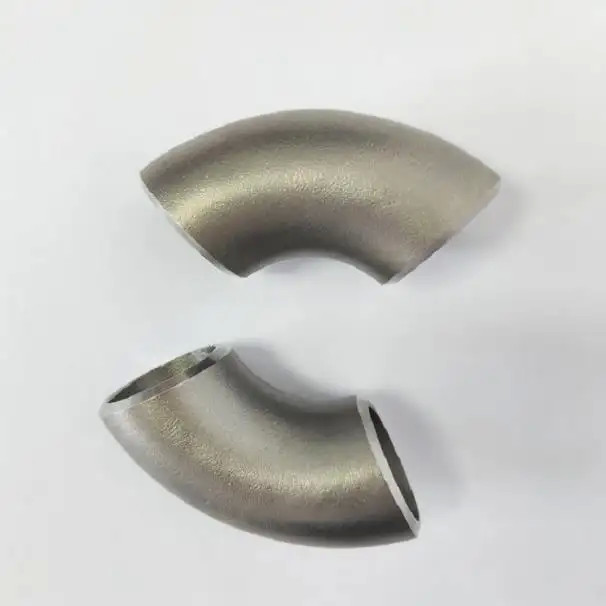

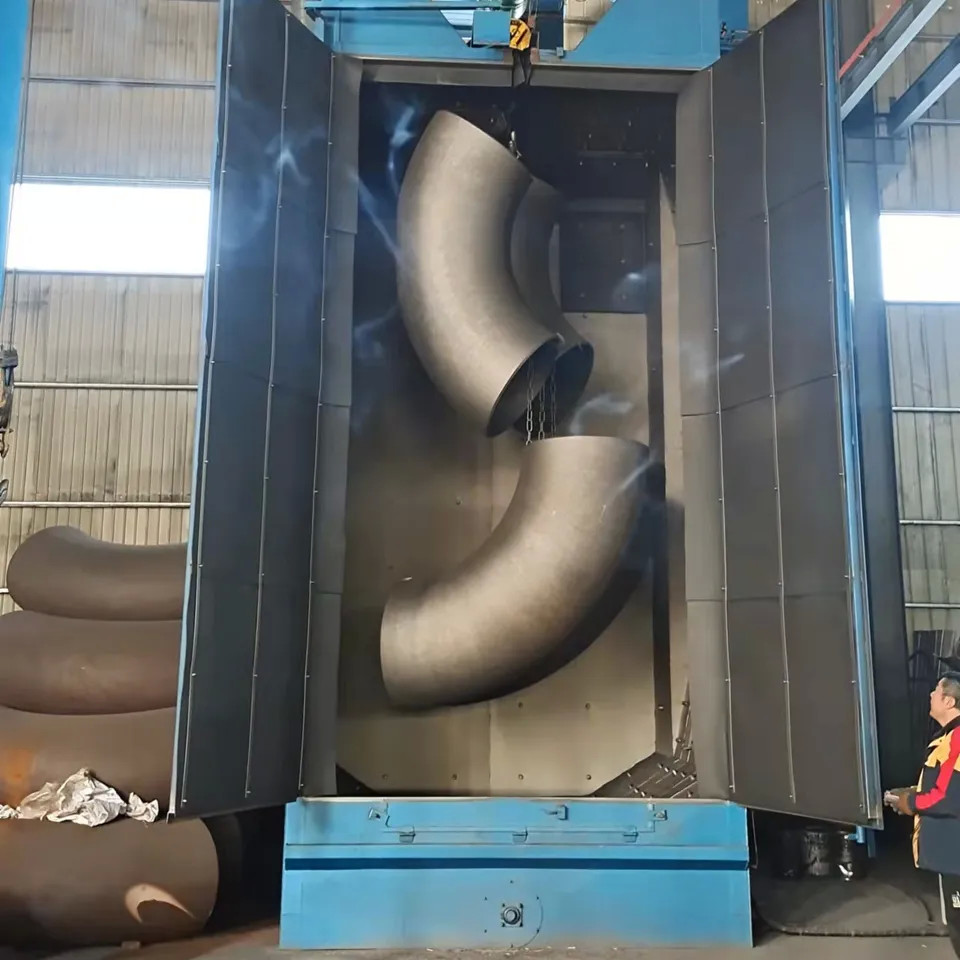

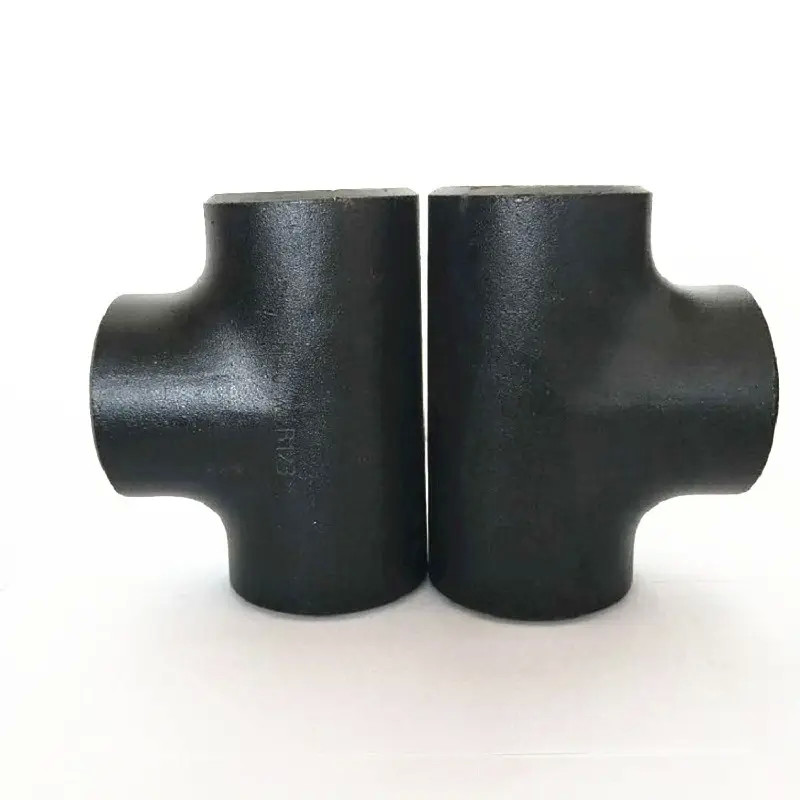

Product Images
