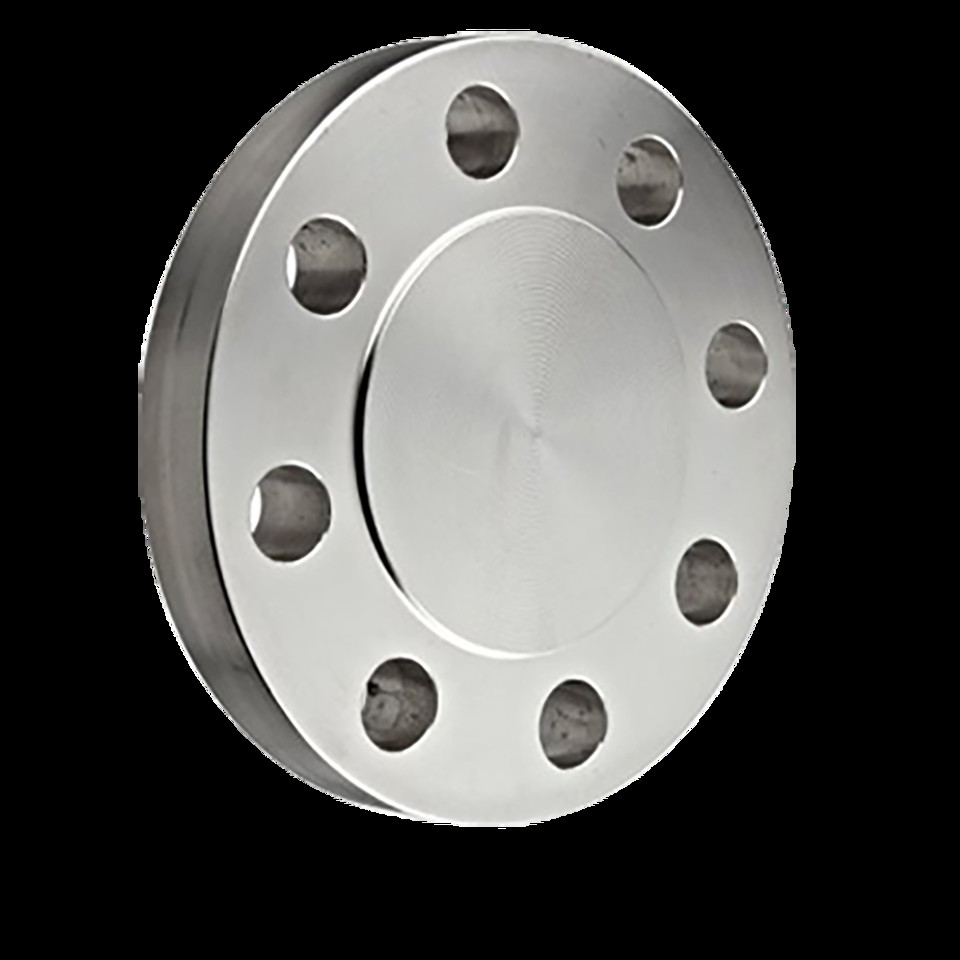

L415NB Steel Blind Flanges 1.8972 Forged Steel EN1092 Flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | L415NB | Steel Number | 1.8972 |
|---|---|---|---|
| Standard | EN1092-1 Type 01 | Face | RF. FF |
| High Light | L415NB Steel Blind Flanges,Forged Steel EN1092 Flange,1.8972 EN1092 Flange |
||
Product Description
L415NB Steel Blind flanges ( 1.8972 )so flange forged steel flange EN1092-1 Flanges
| Grade : | L415NB | ||
| Number: | 1.8972 | ||
| Classification: | Alloy special steel | ||
| Density: | 7.85 g/cm ³ | ||
| Standard: |
|
Chemical composition % of steel L415NB (1.8972): EN 10253-2-2007
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
| max 0.21 | max 0.45 | max 1.6 | max 0.3 | max 0.025 | max 0.02 | max 0.3 | max 0.1 | max 0.15 | max 0.012 | max 0.05 | max 0.04 | 0.015 - 0.06 | max 0.25 | V+Nb+Ti < 0.15 |
Mechanical properties of steel L415NB (1.8972)
| Rm - Tensile strength (MPa) | 520 |
| Rt0.5 - Yield strength for 0.5% total elongation(MPa) | 415-565 |
| KV - Impact energy (J) transverse, | 0° 40 |
| KV - Impact energy (J) longitud., | 0° 60 |
| A - Min. elongation at fracture (%) | 18-20 |
Equivalent grades of steel L415NB (1.8972)
| EU EN |
USA - |
Germany DIN,WNr |
||
| L415NB |
|
|
