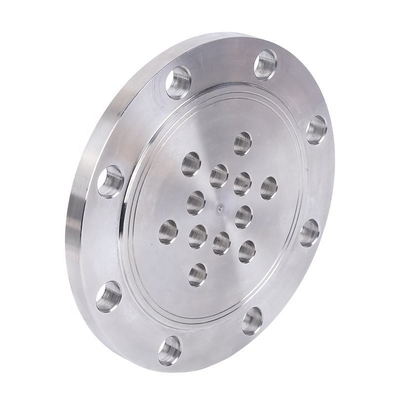

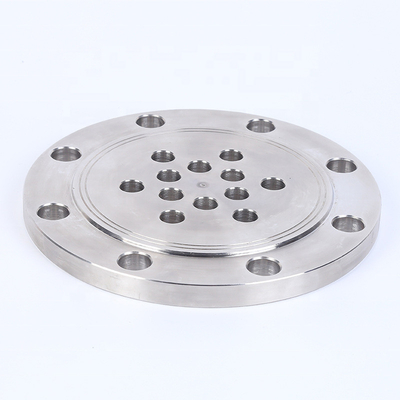

L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges

  • L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges
  • L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges
  • L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges
  • L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material L360QB Steel Number 1.8948
Standard EN1092-1 Type 01 Face RF, FF
High Light

1.8948 Blind Flanges

,

EN1092-1 Type 01 Blind Flanges

,

L360QB Steel Forged Flanges
Leave a Message
Product Description

L360QB SO FLANGES ( 1.8948 ) BLIND FLANGES EN1092-1 FLANGES STEEL FORGED FLANGES





Grade : L360QB
Number: 1.8948
Classification: Non-alloy quality steel
Density: 7.85 g/cm ³
Standard:
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
EN 10208-2: 2009 Steel pipes for pipelines for combustible fluids. Pipes of requirement class B. Technical delivery conditions.






Chemical composition % of steel L360QB (1.8948): EN 10253-2-2007
C Si Mn Ni P S Cr Mo V N Nb Ti Al Cu -
max 0.16 max 0.45 max 1.4 max 0.3 max 0.025 max 0.02 max 0.3 max 0.1 max 0.05 max 0.012 max 0.05 max 0.04 0.015 - 0.06 max 0.25 CEV < 0.42


Mechanical properties of steel L360QB (1.8948)

Rm - Tensile strength (MPa) 460

Rt0.5 - Yield strength for 0.5% total elongation(MPa) 360-510

KV - Impact energy (J) transverse, 0°
40
KV - Impact energy (J) longitud., 0°
60

A - Min. elongation at fracture (%) 20-22

L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges 0
L360QB 1.8948 Blind Flanges EN1092-1 Type 01 Standard Steel Forged Flanges 1
