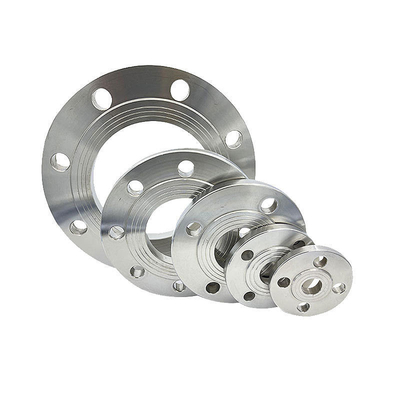

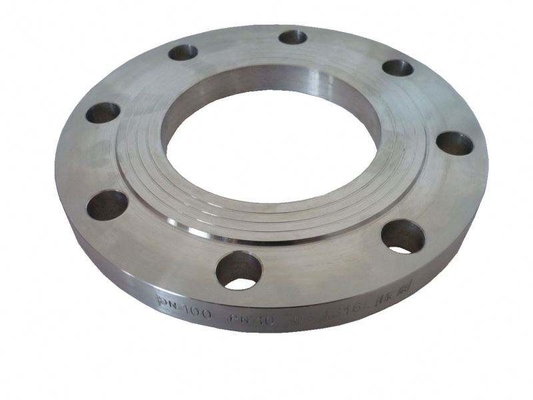

1.8850 Slip On Plate Flanges S460MLH On Plate Flanges En1092 For Heavy Duty Applications

  • 1.8850 Slip On Plate Flanges S460MLH On Plate Flanges En1092 For Heavy Duty Applications
  • 1.8850 Slip On Plate Flanges S460MLH On Plate Flanges En1092 For Heavy Duty Applications
  • 1.8850 Slip On Plate Flanges S460MLH On Plate Flanges En1092 For Heavy Duty Applications
  • 1.8850 Slip On Plate Flanges S460MLH On Plate Flanges En1092 For Heavy Duty Applications

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 1.8850 Steel Material S460MLH
Stanard En1092 Flanges Slip On Plate Flanges
High Light

S460MLH slip on plate flanges

,

steel Slip On Plate Flanges

,

en1092 Slip On Plate Flanges
Leave a Message
Product Description
Grade : S460MLH
Number: 1.8850
Classification: Structural steel
Standard:
EN 10219-1: 2006 Cold formed welded structural hollow sections of non-alloy and fine grain steels. Technical delivery requirements




Chemical composition % of steel S460MLH (1.8850): EN 10219-1-2006
C Si Mn Ni P S Mo V N Nb Ti Al -
max 0.16 max 0.6 max 1.7 max 0.3 max 0.03 max 0.025 max 0.2 max 0.12 max 0.025 max 0.05 max 0.05 max 0.02 Cr+Cu+Mo < 0.6


Mechanical properties of steel S460MLH (1.8850)

Nominal thickness (mm): to 40
Rm - Tensile strength (MPa) 530-720

Nominal thickness (mm): to 16 16 - 40
ReH - Minimum yield strength (MPa) 460 440

KV - Impact energy (J) -50°
27

Nominal thickness (mm): to 40
A - Min. elongation at fracture (%) 17


Mechanical properties
ReH Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale
Rm Tensile strength / Zugfestigkeit / Resistance a la traction
A Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal
J Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc


Heat treatment conditions

+A Soft annealed
+AC Annealed to achieve spheroidization of the carbides
+AR As rolled
+AT Solution annealed
+C Cold drawn / hard
+CR Cold rolled
+FP Treated to ferrite-pearlite structure and hardness range
+I Isothermal annealing
+LC Cold drawn / soft
+M Thermo mechanical rolling
+N Normalized
+NT Normalized and tempered
+P Precipitation hardened
+PE Peeled
+QA Air quenched and tempered
+QL Liquid quenched and tempered
+QT Quenched and tempered
+S Treated to improve shearability
+SH As rolled and turned
+SR Cold drawn and stress relieved
+T Tempered
+TH Treated to hardness range
+WW Warm worked
+U Untreated

Structural steel
Chemical composition of steel S460MLH (1.8850), Standards of steel S460MLH (1.8850)
Mechanical Properties of steel S460MLH (1.8850)
steel S460MLH (1.8850) Tensile Strength, Elongation, Proof strength , Hardness
