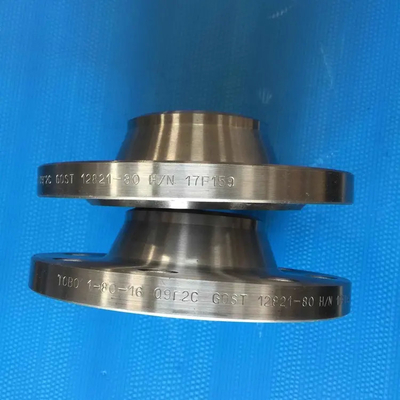

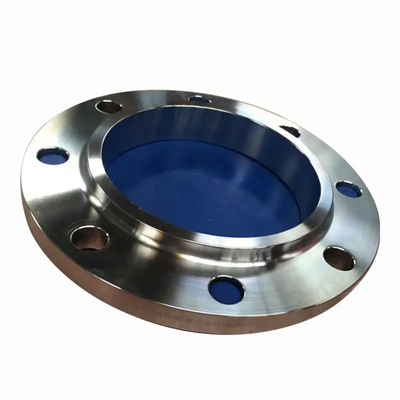

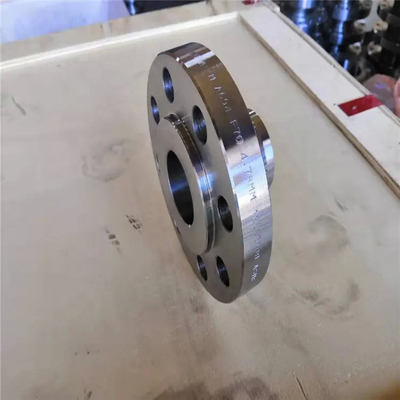

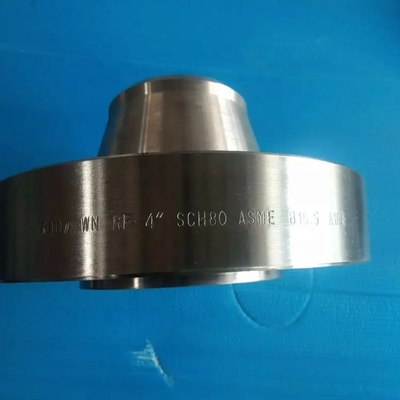

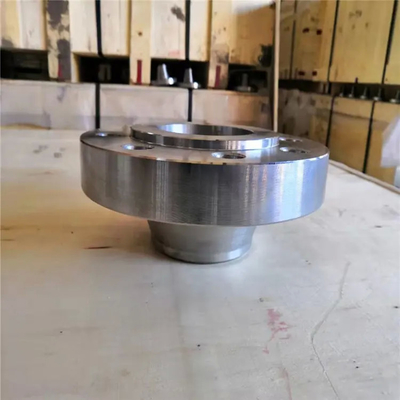

S355J2H 1.0576 Fine Grain Steel Welding Neck Flange WN Neck Forged Flange
Product Summary
S355J2H (1.0576) welding neck flanges made from fine grain steel. Features include high tensile strength (470-630 MPa), excellent impact resistance (27J at -20°C), and compliance with EN 10210-1/EN 10219-1 standards for structural applications.
Product Details
Highlight:
S355J2H welding neck flanges
,fine grain steel forged flanges
,exported welding neck flanges
Steel Number:
1.0576
Material:
S355J2H
Type:
Wn Neck Flanges
Steel:
Grain Steel
Product Description
1.0576 Welding Neck Flanges - S355J2H Fine Grain Steel
Material Specifications
| Grade: | S355J2H |
| Number: | 1.0576 |
| Classification: | Non-alloy structural steel |
| Standard: | EN 10210-1: 2006 Hot finished structural hollow sections of non-alloy and fine grain steels. Technical delivery requirements EN 10219-1: 2006 Cold formed welded structural hollow sections of non-alloy and fine grain steels. Technical delivery requirements |
Chemical Composition
Method of deoxidation FF = fully killed steel
CEV < 0.45 / 0.53 for thickness 16 / 65 mm
CEV < 0.45 / 0.53 for thickness 16 / 65 mm
| Element | Content (%) |
|---|---|
| C (Carbon) | max 0.22 |
| Si (Silicon) | max 0.55 |
| Mn (Manganese) | max 1.6 |
| P (Phosphorus) | max 0.03 |
| S (Sulfur) | max 0.03 |
Mechanical Properties
Tensile Strength (Rm)
| Nominal Thickness (mm) | Tensile Strength (MPa) |
|---|---|
| to 3 | 510-680 |
| 3 - 100 | 470-630 |
| 100 - 120 | 450-600 |
Yield Strength (ReH)
| Nominal Thickness (mm) | Minimum Yield Strength (MPa) |
|---|---|
| to 16 | 355 |
| 16 - 40 | 345 |
| 40 - 63 | 335 |
| 63 - 80 | 325 |
| 80 - 100 | 315 |
| 100 - 120 | 295 |
Impact Energy
| Test Condition | Impact Energy (J) |
|---|---|
| -20°C | 27 |
Elongation at Fracture
| Nominal Thickness (mm) | Min. Elongation (%) |
|---|---|
| to 40 | 22 |
| 40 - 63 | 21 |
| 63 - 100 | 20 |
| 100 - 120 | 18 |
