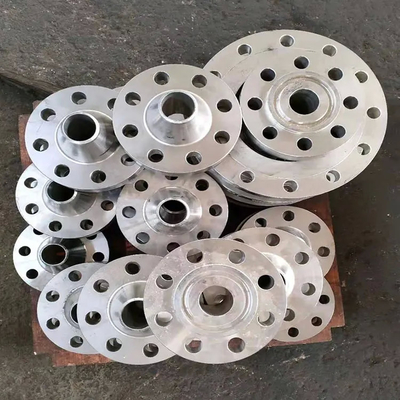

ASME B16.47 Welding Neck Flange Sizes 24'' - 60'' MSS SP44 Standard
Product Summary
FLANGES ASME B16.47 SERIES A Flanges according to ASME B16.47 A are manufactured for WN (Welding Neck) type for sizes 24” to 60”. The standard ASME B16.47 A (former MSS SP44) specifies dimensions for big size Steel flanges. The flange marking should be in accordance with MSS SP25
Product Details
Highlight:
ASME B16.47 Welding Neck Flange
,24'' Welding Neck Flange
,60'' Welding Neck Flange
Material:
A105
Standard:
ASME B16.47
Size:
24inch To 60inch
Standard 2:
MSS SP44
Product Description
FLANGES ASME B16.47 SERIES A
Flanges according to ASME B16.47 A are
manufactured for WN (Welding Neck) type for sizes 24” to 60”.
The standard ASME B16.47 A (former MSS SP44)
specifies dimensions for big size Steel flanges. The flange marking should be in accordance with MSS SP25
