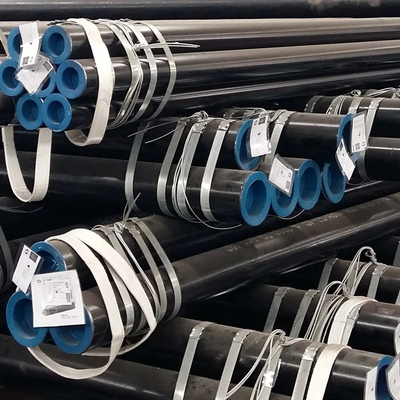

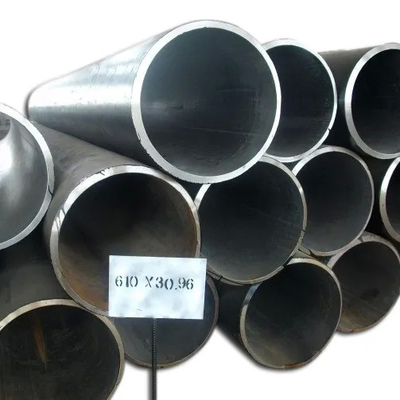

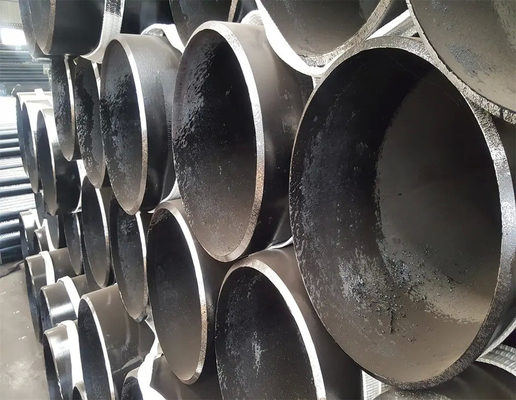

X8CrNiNb16-13 Alloy Seamless Steel Pipes EN 10216-5 1.4961 Steel Seamless Pipes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X8CrNiNb16-13 | Steel Number | 1.4961 |
|---|---|---|---|
| Type | Alloy Seamless Pipes | Standard | En10216-5 |
| High Light | X8CrNiNb16-13 Alloy Seamless Steel Pipes,1.4961 Steel Seamless Pipes |
||
Product Description
| Grade : | X8CrNiNb16-13 | ||||
| Number: | 1.4961 | ||||
| Classification: | Austenitic creep resisting steel | ||||
| Density: | 7.9 g/cm ³ | ||||
| Standard: |
|
| Nb = 10 * C to 1.2 |
| C | Si | Mn | Ni | P | S | Cr | Nb |
| 0.04 - 0.1 | 0.3 - 0.6 | max 1.5 | 12 - 14 | max 0.035 | max 0.015 | 15 - 17 | max 1.2 |
Mechanical properties of steel X8CrNiNb16-13 (1.4961)
| Rm - Tensile strength (MPa) (+A) | 510-690 |
| Rm - Tensile strength (MPa) (+AT) | 510-690 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 200 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 205 |
| KV - Impact energy (J) transverse, (+A) | +20° 60 |
| KV - Impact energy (J) longitud., (+A) | +20° 100 |
| A - Min. elongation at fracture (%) (+A) | 35 |
| A - Min. elongation at fracture (%) (+AT) | 30-35 |
Properties of steel X8CrNiNb16-13 (1.4961)
| Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes (EN 10028-7). ??? Resistance to intergranular corrosion -no (EN 10216-5) |
