P275NL1 Steel EN 10028-3 Standard Welding Neck Flange with 1.0488 Steel Number
Product Summary
P275NL1 (1.0488) welding neck flanges made from non-alloy low temperature quality steel. Certified to EN 10028-3 and EN1092-1 standards, offering excellent mechanical properties including high tensile strength and impact resistance at low temperatures.
Product Details
Highlight:
P275NL1 welding neck flanges
,EN 10028-3 wn neck flanges
,1.0488 steel forged flanges
Material:
P275NL1
Steel Number:
1.0488
Type:
Wn Flanges
Standard:
EN1092-1 Type 01
Product Description
P275NL1 Welding Neck Flanges EN 10028-3 WN Neck Flanges 1.0488 Steel Forged WN Flanges
Product Specifications
| Grade: | P275NL1 |
| Number: | 1.0488 |
| Classification: | Non-alloy low temperature quality steel |
Applicable Standards
- EN 10028-3: 2009 Flat products made of steels for pressure purposes. Weldable fine grain steels, normalized
- EN 10216-3: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Alloy fine grain steel tubes
- EN 10217-3: 2002 Welded steel tubes for pressure purposes. Alloy fine grain steel tubes
Chemical Composition % of Steel P275NL1 (1.0488)
According to EN 10216-3:2014: 0.5≤ Mn≤1.5; S≤0.008; N≤0.02; Ti≤0.04;
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| max 0.16 | max 0.4 | 0.8 - 1.5 | max 0.5 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.05 | max 0.012 | max 0.05 | max 0.03 | max 0.02 | max 0.3 | Nb+Ti+V < 0.05 |
Mechanical Properties of Steel P275NL1 (1.0488)
Tensile Strength (Rm)
| Nominal thickness (mm) | to 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|
| Rm - Tensile strength (MPa) (+N) | 390-510 | 370-490 | 360-480 | 350-470 |
Minimum Yield Strength (ReH)
| Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|---|---|
| ReH - Minimum yield strength (MPa) (+N) | 275 | 265 | 255 | 235 | 225 | 215 |
Impact Energy (KV) - Transverse
| Temperature | -40° | -20° | 0° | +20° |
|---|---|---|---|---|
| KV - Impact energy (J) transverse, (+N) | 27 | 35 | 43-50 | 47-60 |
Impact Energy (KV) - Longitudinal
| Temperature | -50° | -40° | -20° | 0° | +20° |
|---|---|---|---|---|---|
| KV - Impact energy (J) longitud., (+N) | 30 | 40 | 50-53 | 65-70 | 70-80 |
Minimum Elongation at Fracture (A)
| Nominal thickness (mm) | to 60 | 60 - 250 |
|---|---|---|
| A - Min. elongation at fracture (%) (+N) | 24 | 23 |
Equivalent Grades of Steel P275NL1 (1.0488)
Warning! Only for reference EU
| EN | USA | Germany DIN, WNr | England BS |
|---|---|---|---|
| P275NL1 | A633A A662Gr.A |
TStE285 | 43EE |

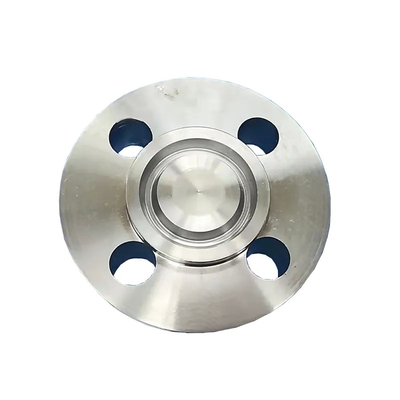

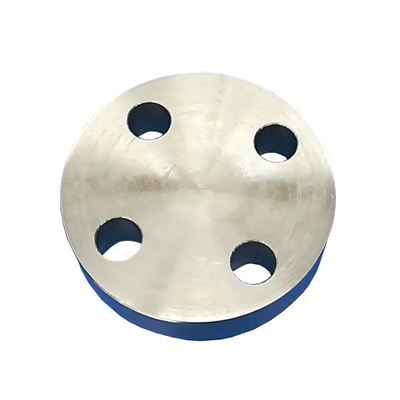

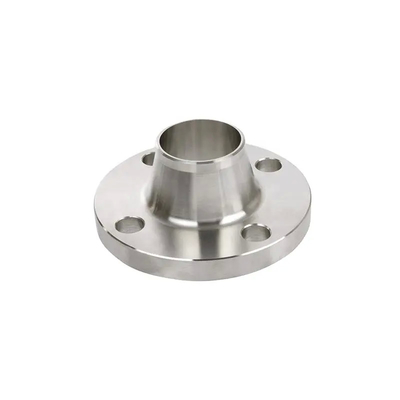

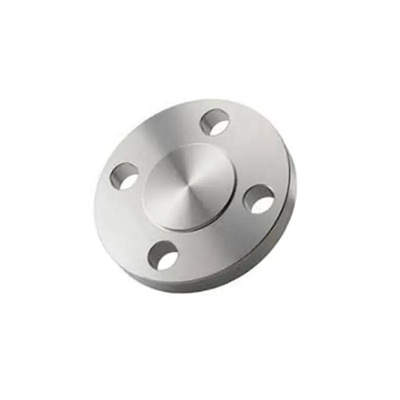

Product Images
