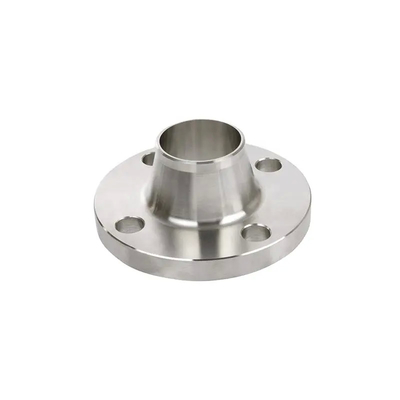

12CrMo9-10 EN 10028-2 WN Flange 1.7375 Forged Welding Neck Flange
Product Summary
12CrMo9-10 (1.7375) welding neck flanges are EN 10028-2 certified alloy steel forged flanges with RF/FF faces. Featuring 540-690 MPa tensile strength, 355 MPa yield strength, and excellent impact resistance, these durable flanges are ideal for high-pressure applications.
Product Details
Highlight:
12CrMo9-10 welding neck flanges
,EN 10028-2 wn forged flanges
,1.7375 steel wn flanges
Material:
12CrMo9-10
Steel Number:
1.7375
Type:
Wn Forged Flanges
Face:
RF, FF
Product Description
12CrMo9-10 Welding Neck Flanges - EN 10028-2 WN Flange - 1.7375 Steel Forged Flanges
Product Specifications
Grade: 12CrMo9-10
Material Number: 1.7375
Classification: Alloy special steel
Standard: EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties
Chemical Composition (%)
| C | Si | Mn | Ni | P | S | Cr | Mo | N | Al | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 - 0.15 | max 0.3 | 0.3 - 0.8 | max 0.3 | max 0.015 | max 0.01 | 2 - 2.5 | 0.9 - 1.1 | max 0.012 | 0.01 - 0.04 | max 0.25 |
Mechanical Properties
| Nominal thickness (mm) | to 250 |
|---|---|
| Rm - Tensile strength (MPa) (+NT) | 540-690 |
| ReH - Minimum yield strength (MPa) (+NT) | 355 |
| A - Min. elongation at fracture (%) (+NT) | 18 |
Impact Energy (J) - Transverse (+NT)
| -20°C | 0°C | +20°C |
|---|---|---|
| 27 | 40 | 70 |
