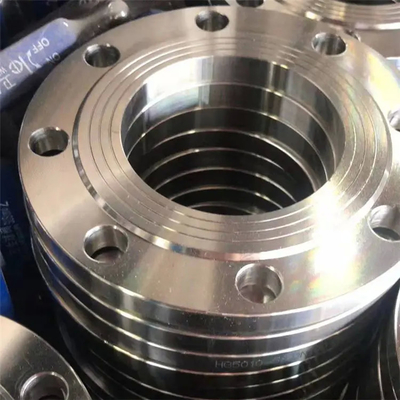

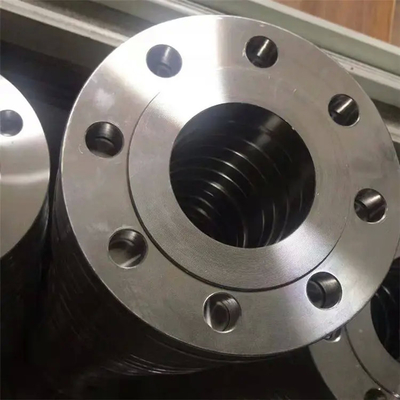

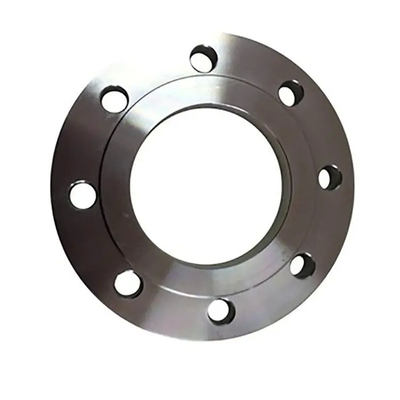

13MnNi6-3 Slip On Plate Flange EN 10222-3 SO Flange 1.6217 Steel Forged Plate Flange
Product Summary
13MnNi6-3 slip on plate flanges, EN 10222-3 compliant. Alloy special steel 1.6217 offers excellent low-temperature impact resistance, tensile strength 490-610 MPa, and yield strength up to 355 MPa. Certified for pressure applications with superior durability.
Product Details
Highlight:
13MnNi6-3 slip on plate flanges
,EN 10222-3 steel forged flanges
,1.6217 slip on plate flanges
Material:
13MnNi6-3
Standard:
EN1092-1 Type 01
Type:
So Flanges
Flange:
Slip On Plate Flange
Product Description
13MnNi6-3 Slip On Plate Flanges - EN 10222-3 SO Flanges 1.6217 Steel Forged Plate Flanges
Product Specifications
| Grade | 13MnNi6-3 |
| Number | 1.6217 |
| Classification | Alloy special steel |
Applicable Standards
- EN 10028-4: 2009 - Flat products made of steels for pressure purposes. Nickel alloy steels with specified low temperature properties
- EN 10222-3: 1999 - Steel forgings for pressure purposes. Nickel steels with specified low-temperature properties
- EN 10216-4: 2014 - Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified low temperature properties
Chemical Composition (%) - EN 10028-4-2003
Cr+Cu+Mo < 0.5%
| Element | Content |
|---|---|
| C | max 0.16 |
| Si | max 0.5 |
| Mn | 0.85 - 1.7 |
| Ni | 0.3 - 0.85 |
| P | max 0.025 |
| S | max 0.01 |
| V | max 0.05 |
| Nb | max 0.05 |
| Al | max 0.02 |
Mechanical Properties
| Nominal thickness: to 80 mm | |
|---|---|
| Rm - Tensile strength (MPa) (+N) | 490-610 |
| Rm - Tensile strength (MPa) (+NT) | 420-610 |
| Nominal thickness (mm) | to 30 | 30 - 50 | 50 - 80 |
|---|---|---|---|
| ReH - Minimum yield strength (MPa) (+N) | 355 | 345 | 335 |
| Nominal thickness (mm) | to 35 | 35 - 50 | 50 - 70 |
|---|---|---|---|
| ReH - Minimum yield strength (MPa) (+NT) | 285 | 275 | 265 |
| KV - Impact energy (J) longitudinal, (+N) | +20° | 0° | -20° | -40° | -50° | -60° |
|---|---|---|---|---|---|---|
| Value | 70 | 60 | 55 | 50 | 45 | 40 |
| KV - Impact energy (J) transverse, (+N) | +20° | 0° | -20° | -40° | -50° | -60° |
|---|---|---|---|---|---|---|
| Value | 45-50 | 50 | 40-45 | 35 | 30 | 27 |
| Nominal thickness: to 80 mm | |
|---|---|
| A - Min. elongation at fracture (%) (+N) | 22 |
Equivalent Grades
Warning! Only for reference EU
| EN | France AFNOR |
|---|---|
| 13MnNi6-3 | 0.5Ni355 |
