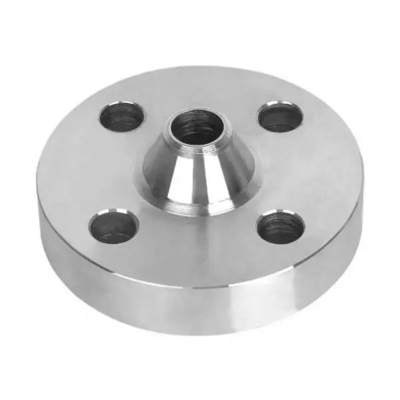

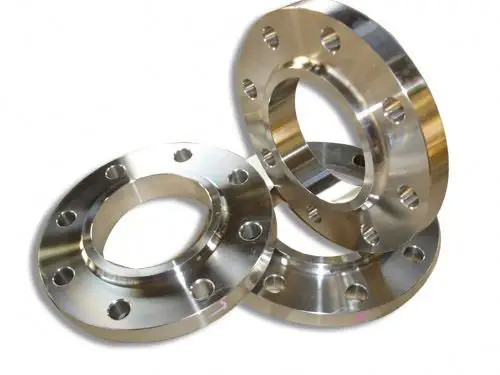

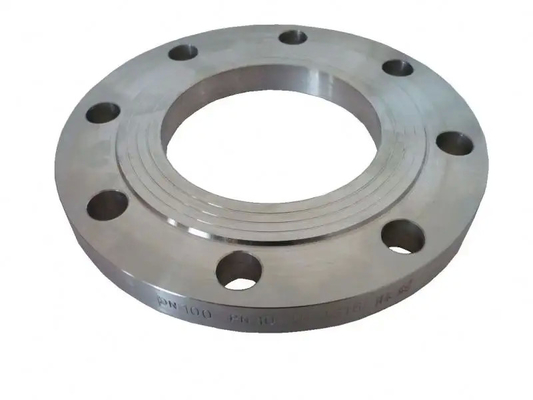

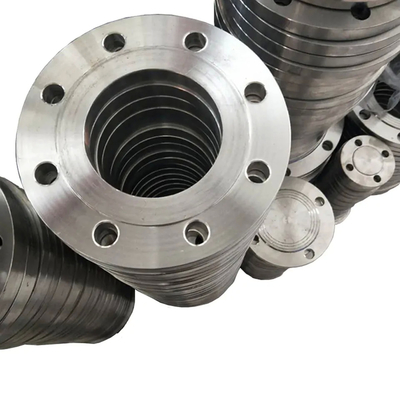

X6CrNi18-10 steel lap joint flanges EN 10222-5 lap joint flanges 1.4948 steel forged lap joint flanges
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X6CrNi18-10 | Steel Number | 1.4948 |
|---|---|---|---|
| Type | Steel Lap Joint Flanges | Standard | ČSN 131160 Typ 13 EN 1092-1, Typ 13 |
Product Description
| Grade : | X6CrNi18-10 | |||||
| Number: | 1.4948 | |||||
| Classification: | Austenitic creep resisting steel | |||||
| Density: | 7.9 g/cm ³ | |||||
| Standard: |
|
| C | Si | Mn | Ni | P | S | Cr | N |
| 0.04 - 0.08 | max 1 | max 2 | 8 - 11 | max 0.035 | max 0.015 | 17 - 19 | max 0.1 |
Mechanical properties of steel X6CrNi18-10 (1.4948)
| Rm - Tensile strength (MPa) (+A) | 510-740 |
| Rm - Tensile strength (MPa) (+AT) | 490-700 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 190-230 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 185 |
| KV - Impact energy (J) transverse, (+A) | +20° 60 |
| KV - Impact energy (J) longitud., (+A) | +20° 100 |
| A - Min. elongation at fracture (%) (+A) | 45 |
| A - Min. elongation at fracture (%) longitud., (+AT) | 40 |
| A - Min. elongation at fracture (%) transverse, (+AT) | 30 |
Properties of steel X6CrNi18-10 (1.4948)
| Resistance to intergranular corrosion: in the delivery condition - no; in the sensitized condition - no |
Equivalent grades of steel X6CrNi18-10 (1.4948)
| EU EN |
USA - |
Japan JIS |
France AFNOR |
Russia GOST |
Inter ISO |
||||||
| X6CrNi18-10 |
|
|
|
|
|
