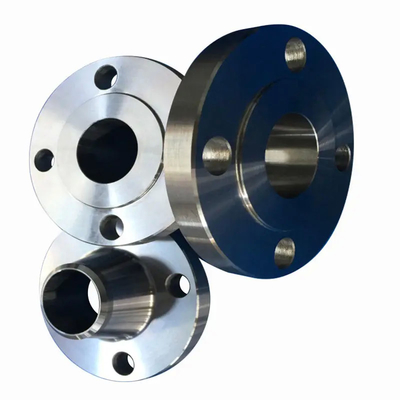

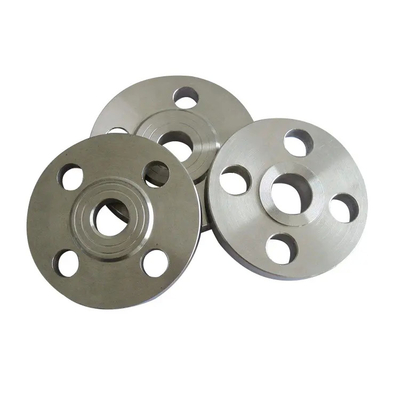

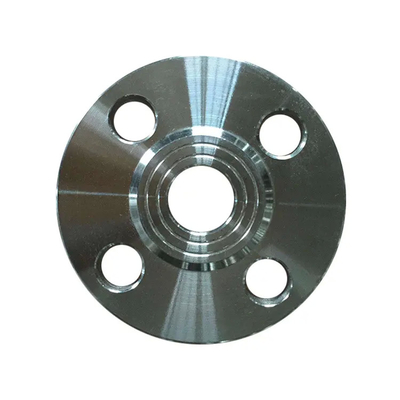

P285QH Slip on plate flange EN 10222-4 so plate flanges 1.0478 steel slip on plate flanges
Product Summary
Grade : P285QH Number: 1.0478 Classification: Non-alloy steel Standard: EN 10222-4: 1999 Steel forgings for pressure purposes. Weldable fine-grain steels with high proof strength Chemical composition % of steel P285QH (1.0478): EN 10222-4-1999 C Si Mn Ni P S Cr Mo V N Nb Al Cu - max 0.18 max 0.4 0.6 ...
Product Details
Highlight:
Slip on plate flange EN 10222-4
,Steel slip on plate flanges
,Slip on plate flange 1.0478
Material:
P285QH
Standard:
EN1092-1 Type 01
Steel Number:
1.0478
Type:
Slip On Flanges
Product Description
| Grade : | P285QH | |
| Number: | 1.0478 | |
| Classification: | Non-alloy steel | |
| Standard: |
|
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Al | Cu | - |
| max 0.18 | max 0.4 | 0.6 - 1.4 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.05 | max 0.02 | max 0.03 | 0.02 - 0.06 | max 0.2 | Nb+V < 0.05 |
Mechanical properties of steel P285QH (1.0478)
| Rm - Tensile strength (MPa) | 370-510 |
| ReH - Minimum yield strength (MPa) | 205-285 |
| KV - Impact energy (J) longitud., (+QT) | +20° 63 |
0° 55 |
-20° 47 |
-40° 34 |
| KV - Impact energy (J) transverse, (+QT) | +20° 40 |
0° 34 |
-20° 27 |
| A - Min. elongation at fracture (%) longitud., | 22-24 |
| A - Min. elongation at fracture (%) transverse, | 21-23 |
