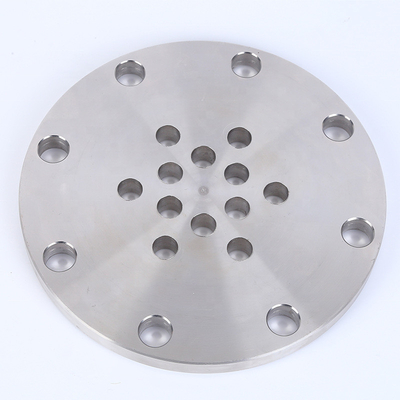

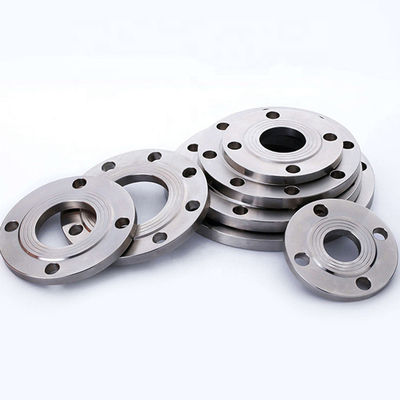

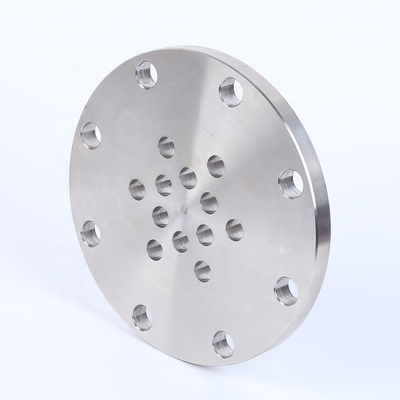

X2CrNiMoN17-11-2 wn flanges EN 10222-5 Large dimension ASME B16.5 stainless steel 1.4406 forged flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X2CrNiMoN17-11-2 | Steel Number | 1.4406 |
|---|---|---|---|
| Type | Stainless Steel Flanges | Standard | EN 10222-5 |
Product Description
| Grade : | X2CrNiMoN17-11-2 | |||||||||
| Number: | 1.4406 | |||||||||
| Classification: | Austenitic stainless steel | |||||||||
| Density: | 8 g/cm ³ | |||||||||
| Standard: |
|
| Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015 % to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008 % to 0.030 % is recommended and permitted. For polishability, a controlled sulphur content of 0.015 % max is recommended. Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. |
| C | Si | Mn | Ni | P | S | Cr | Mo | N |
| max 0.03 | max 1 | max 2 | 10 - 12.5 | max 0.045 | max 0.015 | 16.5 - 18.5 | 2 - 2.5 | 0.12 - 0.22 |
Mechanical properties of steel X2CrNiMoN17-11-2 (1.4406)
| Rm - Tensile strength (MPa) (+A) | 580-800 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 280-315 |
| KV - Impact energy (J) transverse, (+A) | +20° 60 |
-196° 60 |
| KV - Impact energy (J) longitud., (+A) | +20° 100 |
| A - Min. elongation at fracture (%) (+A) | 30-40 |
| A - Min. elongation at fracture (%) longitud., (+AT) | 45 |
| Brinell hardness (HB): (+A) | 250 |
Properties of steel X2CrNiMoN17-11-2 (1.4406)
| Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes Steel shal not be applied at a metal temperature lower than -270 ° C |
Equivalent grades of steel X2CrNiMoN17-11-2 (1.4406)
| EU EN |
USA - |
Japan JIS |
France AFNOR |
England BS |
|||||
| X2CrNiMoN17-11-2 |
|
|
|
|
