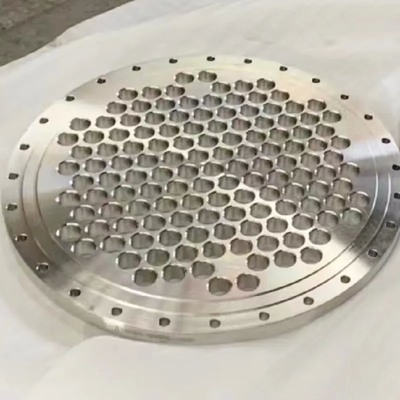

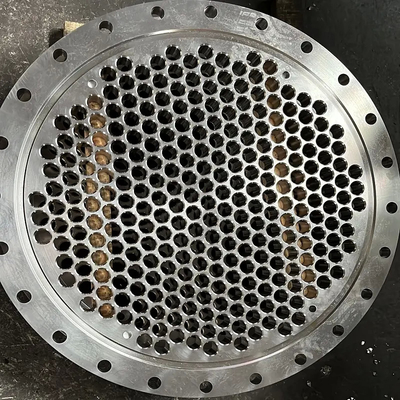

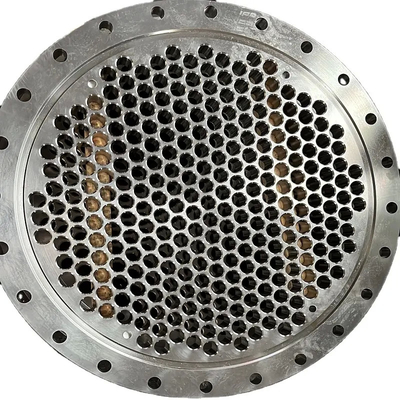

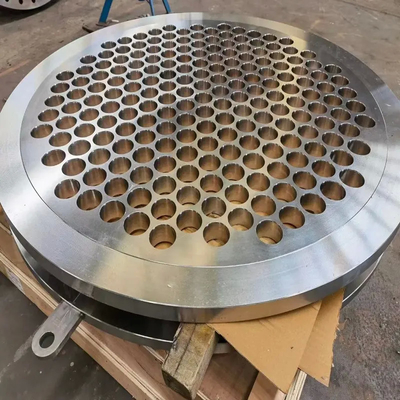

X6CrNiTiB18-10 CNC Machining Heat Exchanger Duplex Stainless Steel Hole Flange Tube Sheet Flange 1.4941 FLANGES
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X6CrNiTiB18-10 | Steel Number | 1.4941 |
|---|---|---|---|
| Type | Flanges | Stainless Flanges | Duplex Stainless Steel Flanges |
Product Description
| Grade : | X6CrNiTiB18-10 | ||||||
| Number: | 1.4941 | ||||||
| Classification: | Austenitic creep resisting steel | ||||||
| Density: | 7.9 g/cm ³ | ||||||
| Standard: |
|
| Ti = 5 * C to 0.8 |
| C | Si | Mn | Ni | P | S | Cr | Ti | B |
| 0.04 - 0.08 | max 1 | max 2 | 9 - 12 | max 0.035 | max 0.015 | 17 - 19 | max 0.8 | 0.0015 - 0.005 |
Mechanical properties of steel X6CrNiTiB18-10 (1.4941)
| Rm - Tensile strength (MPa) (+A) | 490-710 |
| Rm - Tensile strength (MPa) (+AT) | 490-690 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 200-220 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 175-195 |
| KV - Impact energy (J) transverse, (+A) | +20° 60 |
| KV - Impact energy (J) longitud., (+A) | +20° 100 |
| A - Min. elongation at fracture (%) (+A) | 40 |
| A - Min. elongation at fracture (%) (+AT) | 30-40 |
Properties of steel X6CrNiTiB18-10 (1.4941)
| Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes (EN 10028-7). ??? Resistance to intergranular corrosion -no (EN 10216-5) |
Equivalent grades of steel X6CrNiTiB18-10 (1.4941)
| EU EN |
France AFNOR |
|
| X6CrNiTiB18-10 |
|
