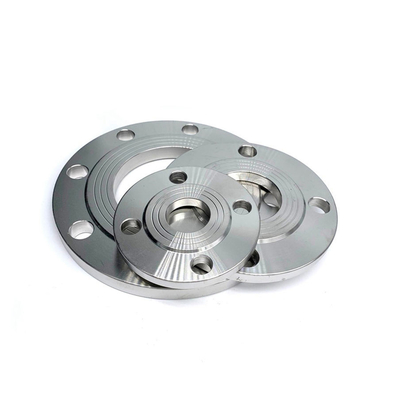

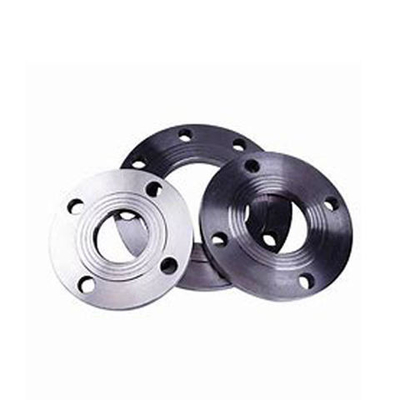

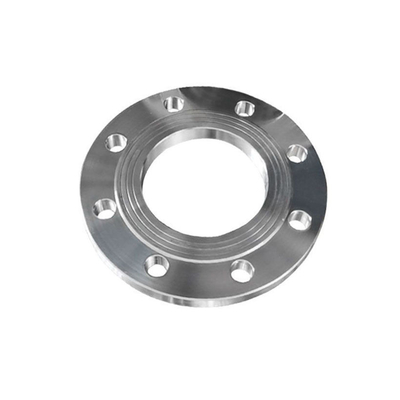

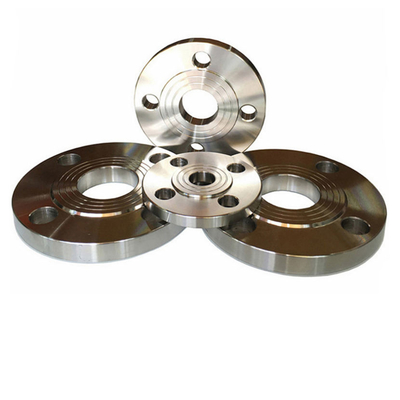

1.0460 Welding neck flanges C22.8 Weld neck flanges P250GH Steel Welding neck flanges
Product Summary
1.0460 Welding neck flanges C22.8 Weld neck flanges P250GH Steel Welding neck flanges according to EN1092-1 typ 11 DIN 2631; DIN 2632; DIN 2633; DIN 2634; DIN 2635; DIN 2636; DIN 2637; DIN 2638 ANSI B16.5 Delivered In Dimensions DN 15 – DN 1600 pressure PN 6 – PN 250 Most of dimensions in material ...
Product Details
Highlight:
C22.8 steel welding neck flanges
,P250GH weld neck flanges
,1.0460 welding neck flanges
Material:
C22.8
Steel Number:
1.0460
Flange:
Welding Neck Flanges
Face:
RF, FF
Product Description
1.0460 Welding neck flanges C22.8 Weld neck flanges P250GH Steel Welding neck flanges
- according to
- EN1092-1 typ 11
- DIN 2631; DIN 2632; DIN 2633; DIN 2634; DIN 2635; DIN 2636; DIN 2637; DIN 2638
- ANSI B16.5
Delivered In Dimensions
- DN 15 – DN 1600
- pressure PN 6 – PN 250
- Most of dimensions in material P245GH/P250GH and A105 available from stock. Non-stock flanges will be offered as soon as possible.
| Grade : | P250GH | |
| Number: | 1.0460 | |
| Classification: | Non-alloy quality steel | |
| Density: | 7.85 g/cm ³ | |
| Standard: |
|
| C | Si | Mn | Ni | P | S | Cr | V | Nb | Ti | Al | - |
| 0.18 - 0.23 | max 0.4 | 0.3 - 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 - 0.05 | Cr+Cu+Mo+Ni < 0.7 |
Mechanical properties of steel P250GH (1.0460)
| Nominal thickness (mm): | to 150 |
| Rm - Tensile strength (MPa) (+N) | 410-540 |
| Nominal thickness (mm): | to 50 | 50 - 100 | 100 - 150 |
| ReH - Minimum yield strength (MPa) (+N) | 250 | 240 | 230 |
| KV - Impact energy (J) longitud., | +20° 47 |
| Nominal thickness (mm): | to 150 |
| A - Min. elongation at fracture (%) (+N) | 25 |
