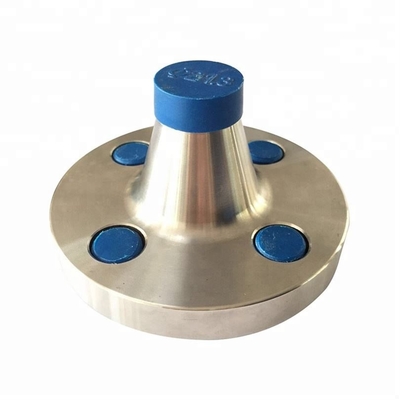

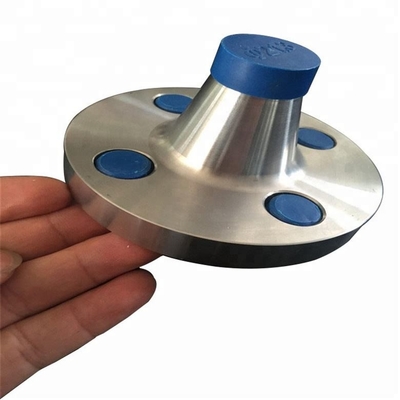

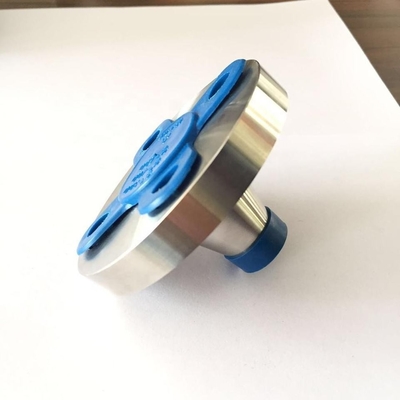

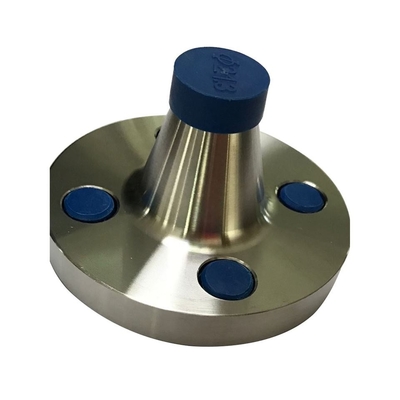

1.0038 welding neck flanges RST37.2 Weld neck flanges S235JR Steel forged flanges
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | RST37.2 | Steel Number | 1.0038 |
|---|---|---|---|
| Type | Welding Neck Flanges | Standard | En1092-1 Type11 |
Product Description
1.0038 welding neck flanges RST37.2 Weld neck flanges S235JR Steel forged flanges
| Grade : | S235JRG2 | |
| Number: | 1.0038 | |
| Classification: | According EN 10025-2 steel number 1.0038 named S235JR | |
| Standard: |
|
| For forgings with an equivalent diameter or thickness > 100 mm the carbon content shall be agreed beetween purchaser and supplier. |
| C | Si | Mn | Ni | P | S | Cr | Mo | Al | - |
| max 0.2 | max 0.55 | max 1.4 | max 0.3 | max 0.045 | max 0.045 | max 0.3 | max 0.08 | min 0.02 | Cr+Mo+Ni < 0.48 |
Mechanical properties of steel S235JRG2 (1.0038)
| Nominal thickness (mm): | to 100 | 100 - 250 | 250 - 500 |
| Rm - Tensile strength (MPa) (+N) | 340 | 340 | 340 |
| Nominal thickness(mm): | to 100 | 100 - 250 | 250 - 500 |
| Re - Upper yield strength (MPa) (+N) | 215 | 175 | 165 |
| Nominal thickness (mm): | to 100 | 100 - 250 | 250 - 500 |
| A - Min. elongation at fracture (%) longitud., (+N) | 24 | 23 | 23 |
| A - Min. elongation at fracture (%) transverse, (+N) | 17 |
Equivalent grades of steel S235JRG2 (1.0038)
| EU EN | USA - | Germany DIN,WNr | Japan JIS | France AFNOR | England BS | European old EN | Italy UNI | Spain UNE | China GB | Sweden SS | Poland PN | Czechia CSN | Finland SFS | Austria ONORM | Russia GOST | Inter ISO | ||||||||||||||||||
| S235JRG2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
