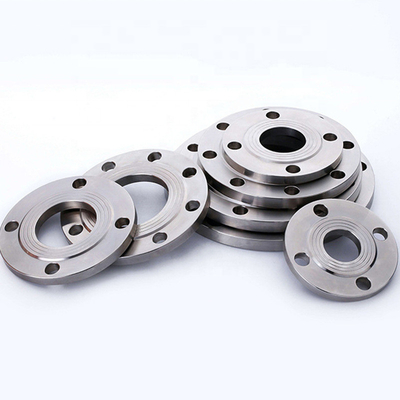

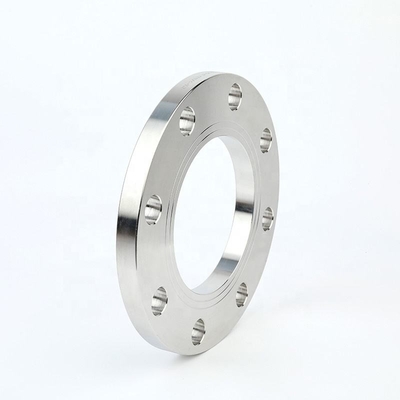

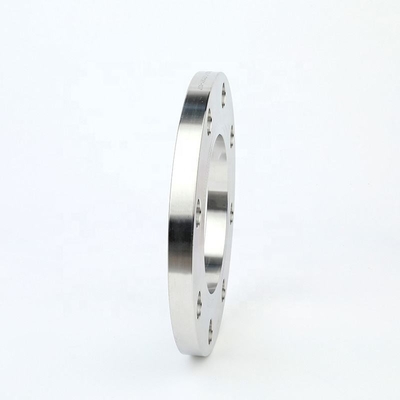

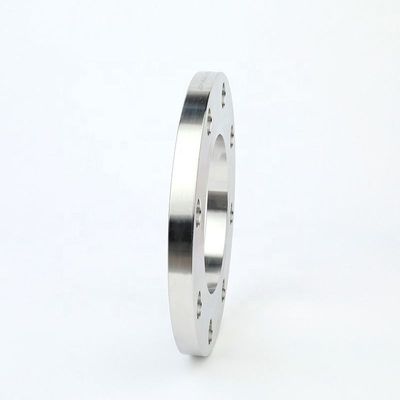

X11CrMo5 So Flanges Alloy Special Steel 1.7362 EN1092-1 Forged Steel Flanges
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X11CrMo5 | Steel Number | 1.7362 |
|---|---|---|---|
| Standard | EN1092-1 Type 01 | Face | FF, RF |
| High Light | X11CrMo5 So Flanges,1.7362 Forged Steel Flanges,EN1092-1 Forged Steel Flanges |
||
Product Description
X11CrMo5 SO Flanges ( 1.7362) forged flange EN1092-1 Forged Steel Flanges
| Grade : | X11CrMo5 | ||
| Number: | 1.7362(dubl) | ||
| Classification: | Alloy special steel According EN 10028 - 2 : 2003 steel 1.7362 named X12CrMo5 | ||
| Standard: |
|
| According EN 10028 - 2 : 2003 steel 1.7362 named X12CrMo5 According EN 10216-2:2014 S=<0.01 |
| C | Si | Mn | P | S | Cr | Mo | Al | Cu |
| 0.08 - 0.15 | 0.15 - 0.5 | 0.3 - 0.6 | max 0.025 | max 0.02 | 4 - 6 | 0.45 - 0.65 | max 0.04 | max 0.3 |
Mechanical properties of steel X11CrMo5 (1.7362(dubl))
| Rm - Tensile strength (MPa) (+I) | 430-580 |
| Rm - Tensile strength (MPa) (+NT) | 480-740 |
| Rp0.2 0.2% proof strength (MPa) (+I) | 175 |
| Rp0.2 0.2% proof strength (MPa) (+NT) | 280-390 |
| KV - Impact energy (J) longitud., | +20° 40 |
| KV - Impact energy (J) transverse, | +20° 27 |
| A - Min. elongation at fracture (%) longitud., (+I) | 22 |
| A - Min. elongation at fracture (%) longitud., (+NT) | 18-20 |
