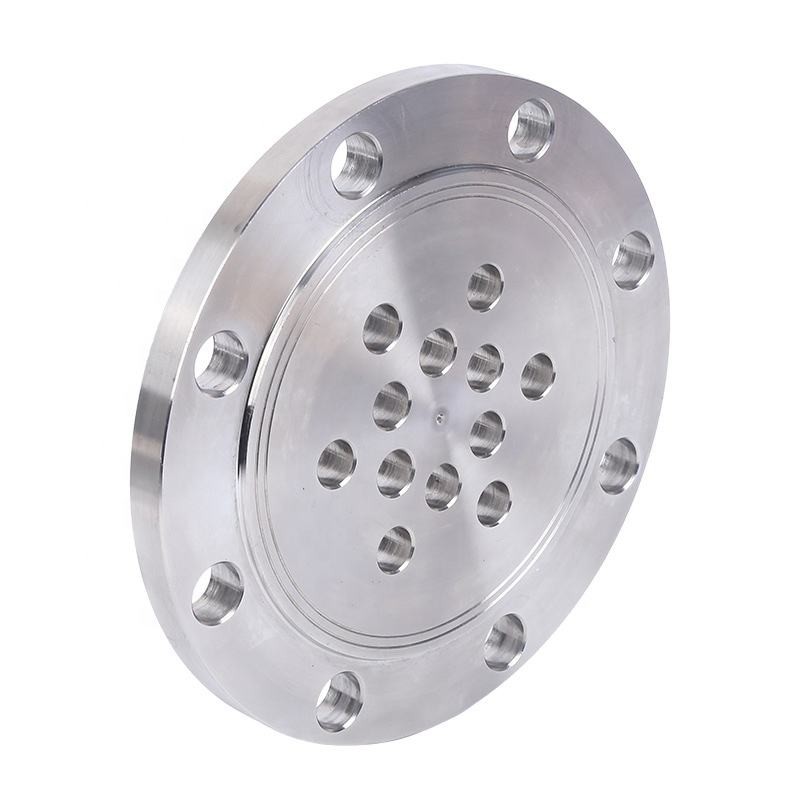

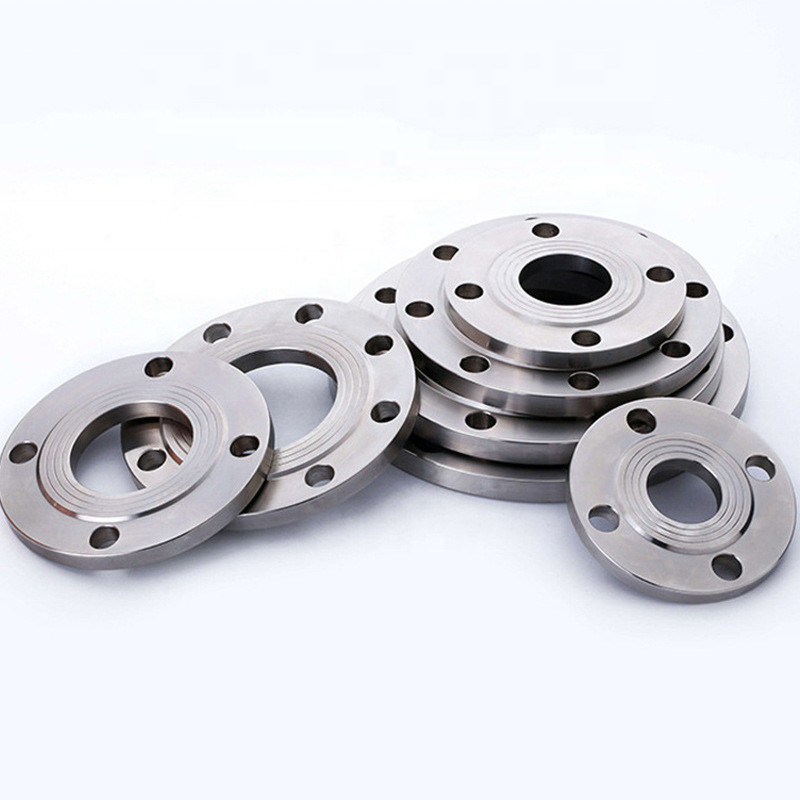

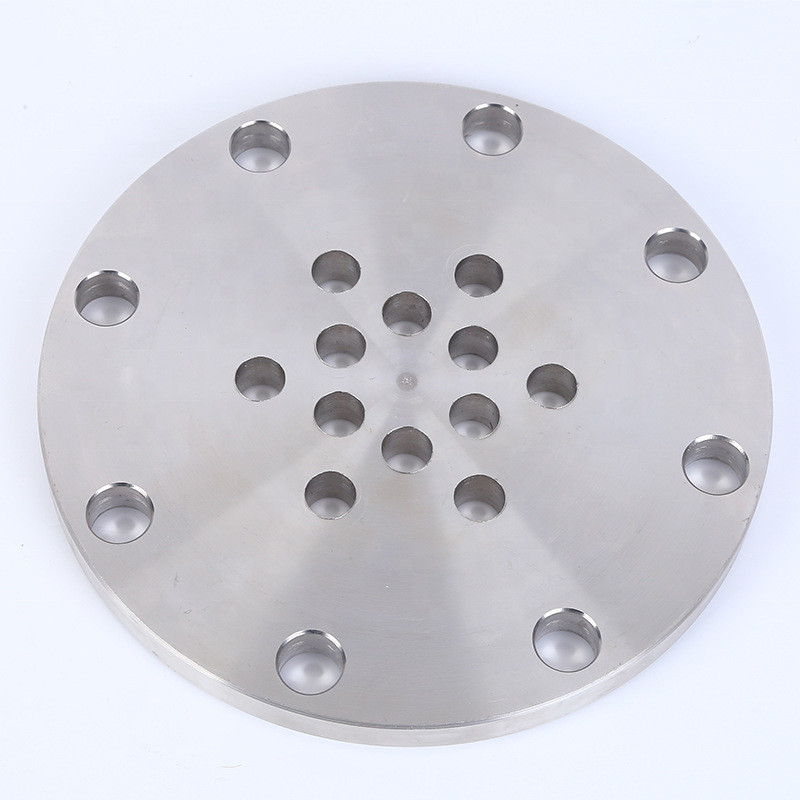

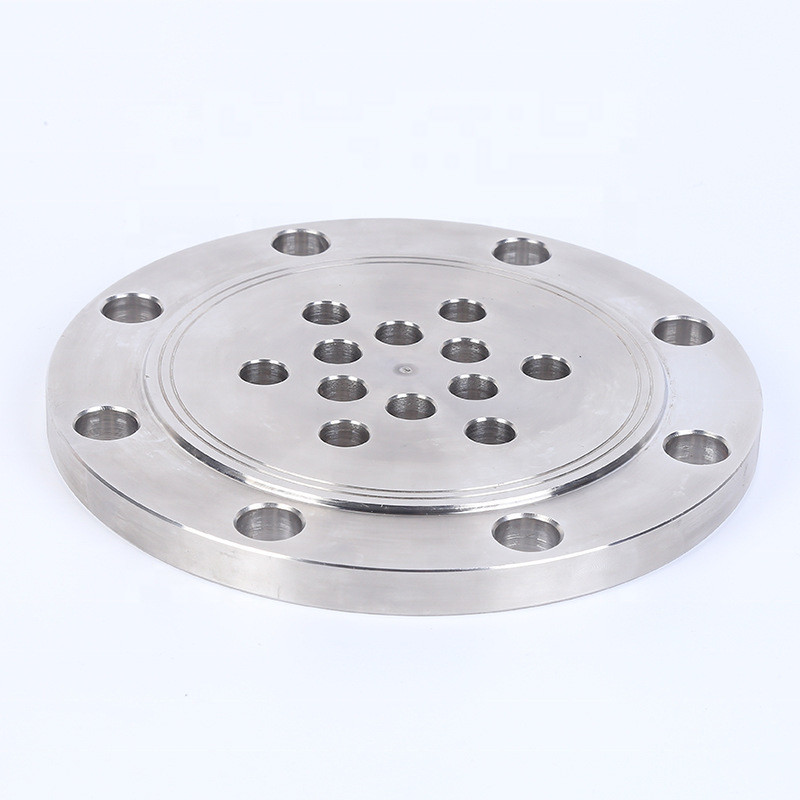

10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges

  • 10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges
  • 10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges
  • 10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges
  • 10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 10CrMo5-5 Steel Number 1.7338
Standard EN1092-1 Type 01 Flange Face Ff, Rf
High Light

10CrMo5-5 SO flange

,

1.7338 Steel Forged Flanges

,

Plate Steel Forged Flanges
Leave a Message
Product Description

10CrMo5-5 SO flange 1.7338 so plate en1092-1 plate Steel forged flanges en1092-1 so flange





Grade : 10CrMo5-5
Number: 1.7338
Classification: Alloy special steel
Standard:
EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements





Chemical composition % of steel 10CrMo5-5 (1.7338): EN 10216-2-2014
C Si Mn Ni P S Cr Mo Al Cu
max 0.15 0.5 - 1 0.3 - 0.6 max 0.3 max 0.025 max 0.01 1 - 1.5 0.45 - 0.65 max 0.04 max 0.3


Mechanical properties of steel 10CrMo5-5 (1.7338)

Nominal thickness (mm): to 60
Rm - Tensile strength (MPa) (+NT) 410-560

Nominal thickness(mm): to 16 16 - 40 40 - 60
Rp0.2 0.2% proof strength (MPa) (+NT) 275 275 265

KV - Impact energy (J) longitud., +20°
40
KV - Impact energy (J) transverse, +20°
27

A - Min. elongation at fracture (%) longitud., (+NT) 22
A - Min. elongation at fracture (%) transverse, (+NT) 20

Pressure 150LBS-2500LBS
Standard ASME B16.9 DIN2616 DIN2615 DIN2605 BS 1640-3-1968 BS 1640-4-1968 JIS B2313 GOST17375 GOST17378 GB/T
Material Stainless Steel F304 304L 304H 316 316L 310 310S 321 321H 317 317L 347 347H 904L SS31803 2205 2507
Forming type Forged or as required
Main product Seamless & Welded steel pipe flange
