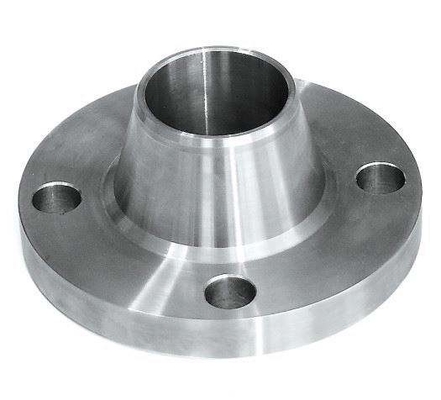

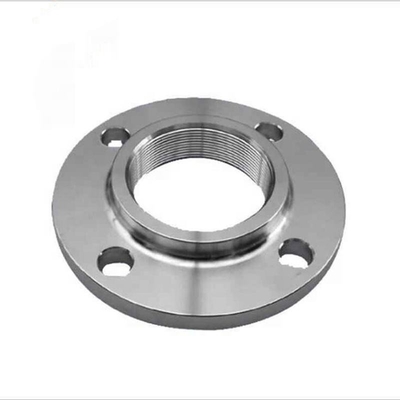

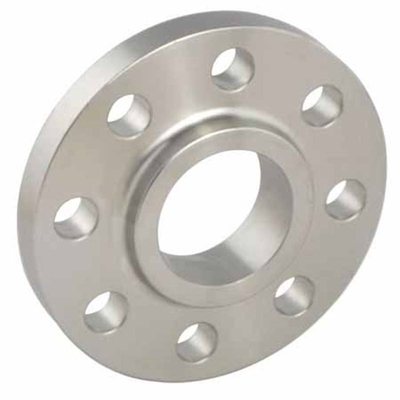

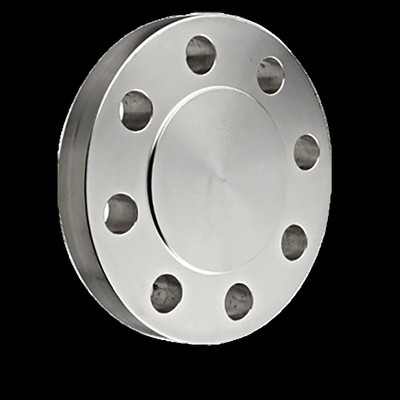

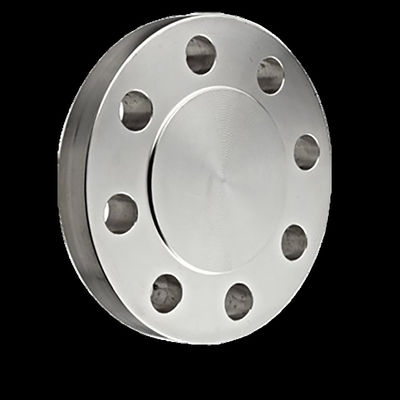

A105 3" Carbon Steel Flange Stainless Steel Forged ANSI B16.5 Lap Joint Flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | A105 , 347h | Standard | Ansi B 16.5 |
|---|---|---|---|
| Type | Lap Joint Flanges | Flange Type | Steel Lap Joint Flanges |
| High Light | 3" Carbon Steel Flange,A105 Carbon Steel Flange,ANSI B16.5 Lap Joint Flange |
||
Product Description
A105 CARBON STEEL &347H STAINLESS STEEL FORGED ANSI B16.5 LAP JOINT FLANGE A105 3"
| Size | 1/2"—72" |
| Pressure |
150# ,300#, 600#, 900#,1500#, 2500#, PN16, PN25, PN40, 5K,10K, 6bar, 16bar, 25bar |
| Standard |
ANSI B 16.5, ANSI B16.45, JIS B2220, DIN2633,ASME, ASTM,,JIS , DIN , EN, |
| Material |
Q235, 20#, Q345 A105, ST37.0,ST35.8,St37.2,St35.4/8,St42,St45,St52,St52.4 STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49 |
| Application |
Low and middle pressure fluid pipeline,boiler, petroleum and natural gas industry, drilling,chemical industry,electric industry,shipbuilding, fertilizer equipment and pipeline, structure,petrochemical,pharmaceutical industry |
| Surface |
Transparent anti rust oil, yellow anti rust oil, black paint, or acc. to clients request |
| Package | Plastic film, wooden cases ,wooden pallet or on customers' request |
| Certificate | ISO9001:2008, SGS,BV, etc |
| Capacity | 50000tons/year |
| Advantages |
1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4. Reliable forwarder, 2-hour away from port. |
Introduction of Flange:
Application:
Used for the connection between the tube end in chemical, construction, water supply, drainage, light and heavy industrial, refrigeration, sanitation, plumbing, fire protection, electrical, aerospace, shipbuilding and other infrastructure projects
Type:
Welding Neck(WN), Plate(PL), Slip On(SO), Blind(BL), Socket Welding(SW),
Threaded(THc), LapJoint(LJ), Long Welding Neck(LWN)
Widely Used Material for Plate Flange:
Stainless Steel: A182 F304/310/316/317/321/347
Carbon Steel: A105
Alloy Steel: A182 F5/F9/F11/F22/F51/F53 INCONEL600 625 825
Common Flange Standard:
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" |
LBS: 150 300 400 600 900 1500 2500 |
SO.WN,SW,TH,LJ,BL |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
| 3 |
LONG WELDING NECK FLANGES B16.5 |
1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
| 4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
| 7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
| 11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
| 12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
| 13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
| 14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
| 15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
| 16 | DIN FLANGE | DN10-4000 |
PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 |
SO.WN,SW,TH,LJ,BL |
| 17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 | TH SO WN BL |
