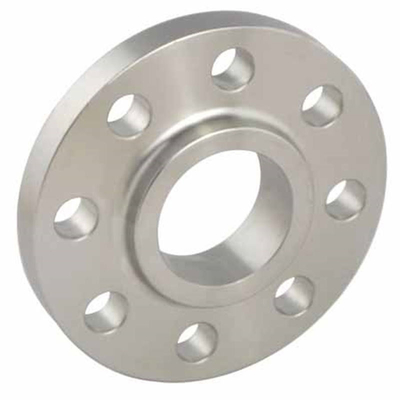

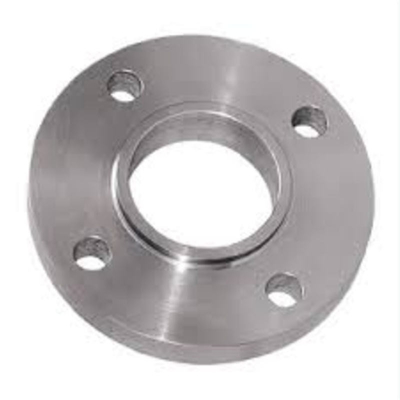

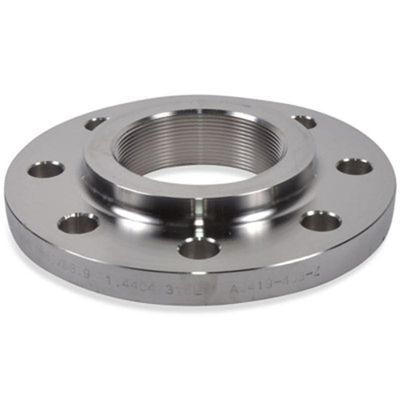

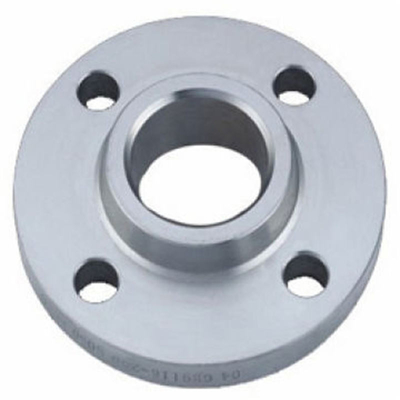

1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange

  • 1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange
  • 1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange
  • 1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange
  • 1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 1.4462 China Material X2CrNiMoN22-5-3
Standard EN1092-1 Type 01 Type Steel WN Flange
High Light

1.4462 Welding Plate Flange

,

X2CrNiMoN22-5-3 WN Flange

,

Steel WN Flange
Leave a Message
Product Description

1.4462 Plate Flange TYPE 01 EN1092-1 Plate flange for welding X2CrNiMoN22-5-3 neck flange



1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange 0

Grade : X2CrNiMoN22-5-3
Number: 1.4462
Classification: Austenitic-ferritic stainless steel
Density: 7.8 g/cm ³
Standard:
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
EN 10222-5: 2000 Steel forgings for pressure purposes. Martensitic, austenitic and austenitic-ferritic stainless steels
EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
EN 10217-7: 2005 Welded steel tubes for pressure purposes. Stainless steel tubes
EN 10296-2: 2005 Welded circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10253-3: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements
EN 10253-4: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements
EN 10272: 2007 Stainless steel bars for pressure purposes
EN 10263-5: 2001 Steel rod, bars and wire for cold heading and cold extrusion. Technical delivery conditions for stainless steels
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10297-2: 2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes



1.4462 Plate Flange TYPE 01 EN1092-1 Plate flange for welding X2CrNiMoN22-5-3 neck flange  Chemical composition % of steel X2CrNiMoN22-5-3 (1.4462): EN 10088-2-2005

Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.
C Si Mn Ni P S Cr Mo N
max 0.03 max 1 max 2 4.5 - 6.5 max 0.035 max 0.015 21 - 23 2.5 - 3.5 0.1 - 0.22



1.4462 Plate Flange TYPE 01 EN1092-1 Plate flange for welding X2CrNiMoN22-5-3 neck flange Mechanical properties of steel X2CrNiMoN22-5-3 (1.4462)



Rm - Tensile strength (MPa) (+A) 640-950
Rm - Tensile strength (MPa) (+AT) 640-920
Rm - Tensile strength (MPa) (+AT+C) 1000-1020




Rp0.2 0.2% proof strength (MPa) (+A) 450-500
Rp0.2 0.2% proof strength (MPa) (+AT) 450




KV - Impact energy (J) transverse, (+A) +20°
100		 -40°
40
KV - Impact energy (J) longitud., (+A) +20°
150
KV - Impact energy (J) longitud., (+AT) +20°
120-200
KV - Impact energy (J) transverse, (+AT) +20°
90-100		 -196°
40		 -40°
40




A - Min. elongation at fracture (%) (+A) 20-25
A - Min. elongation at fracture (%) transverse, (+AT) 22
A - Min. elongation at fracture (%) longitud., (+AT) 22-30




Nominal diameter (mm): 2 - 25
Z - Reduction in cross section on fracture (%) 50-55




Brinell hardness (HB): (+A) 270
Brinell hardness (HB): (+AT) 290


1.4462 Plate Flange TYPE 01 EN1092-1 Plate flange for welding X2CrNiMoN22-5-3 neck flange



Properties of steel X2CrNiMoN22-5-3 (1.4462)
Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes







1.4462 Plate Flange TYPE 01 EN1092-1 Plate flange for welding X2CrNiMoN22-5-3 neck flange





Equivalent grades of steel X2CrNiMoN22-5-3 (1.4462 steel flange )
Warning! Only for reference
EU
EN		 USA
-		 France
AFNOR		 England
BS		 Sweden
SS
X2CrNiMoN22-5-3
S32205
Z3CND22-05Az
318S13
2377





1.4462 Welding Plate Flange TYPE 01 EN1092-1 X2CrNiMoN22-5-3 Steel WN Flange 1
