Random Length Boiler Steel Pipe Boksburg Material Number S235JR ERW 1.0038
| Place of Origin | China |
|---|---|
| Brand Name | Global |
| Certification | API/CE/TUV/ISO |
| Model Number | 2inch sch40 |
| Minimum Order Quantity | 1tons |
| Price | 580 usd/ton |
| Packaging Details | Standard exported package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thickness | 1 - 60 Mm | Section Shape | Round With Other Shape |
|---|---|---|---|
| Alloy Or Not | Is Alloy | Standard2 | GB/T8162 |
| Length | Random Length Or Fixed Length | Product Name | A192 Boiler Tubes Seamless Tube Carbon Steel Pipe Price,20G Carbon Steel Boiler Pipe For High Pressure Use |
| High Light | stainless steel tubing,seamless stainless steel tubing |
||
Product Description
What's the Steel and Pipe Boksburg Material Number : S235JR ERW Pipes specification, Steel and Pipe Boksburg Material Number : S235JR ERW Pipes chemistry, Steel and Pipe Boksburg Material Number : S235JR ERW Pipes equivalent, Steel and Pipe Boksburg Material Number : S235JR ERW Pipes Mechanical Properties? Steel and Pipe Boksburg Material Number : S235JR ERW Pipes manufacturer in China.
Steel and Pipe Boksburg Material Number : S235JR ERW Pipes
| Grade : | S235JR | |
| Number: | 1.0038(dubl) | |
| Classification: | Non-alloy quality structural steel ??? According EN 10250-2:2000 steel S235JRG2 also named 1.0038 ??? |
|
| Standard: |
|
Steel and Pipe Boksburg Material Number : S235JR ERW Pipes
| Nominal thickness =< 40(mm) C max = 0.17 Nominal thickness =< 40(mm) CEV max = 0.35 |
| C | Mn | P | S | N | Cu | CEV |
| max 0.2 | max 1.4 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.38 |
Steel and Pipe Boksburg Material Number : S235JR ERW Pipes
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 360-510 | 360-510 | 350-500 | 340-490 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 235 | 225 | 215 | 215 | 215 | 195 | 185 | 175 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 17 | 18 | 19 | 20 | 21 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 26 | 25 | 24 | 22 | 21 |
Steel and Pipe Boksburg Material Number : S235JR ERW Pipes
| Weldability: This steel grade is generally suitable to welding |
Steel and Pipe Boksburg Material Number : S235JR ERW Pipes
Equivalent grades of steel S235JR (1.0038(dubl))
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Canada HG |
European old EN |
Italy UNI |
Belgium NBN |
Spain UNE |
China GB |
Sweden SS |
Austria ONORM |
Norway NS |
Russia GOST |
Inter ISO |
Portugal NP |
India IS |
||||||||||||||||||||||||||||||||||
| S235JR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

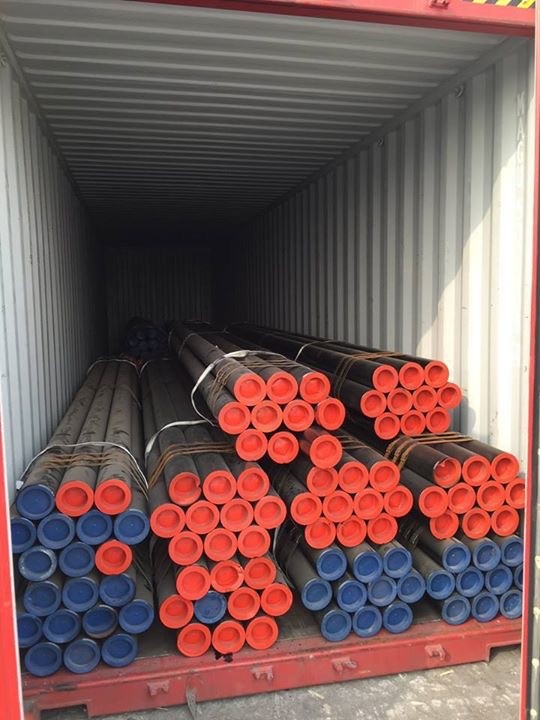

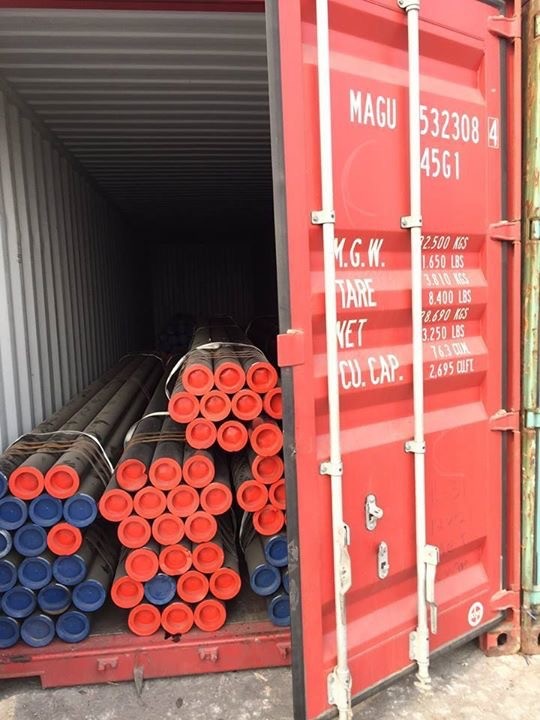

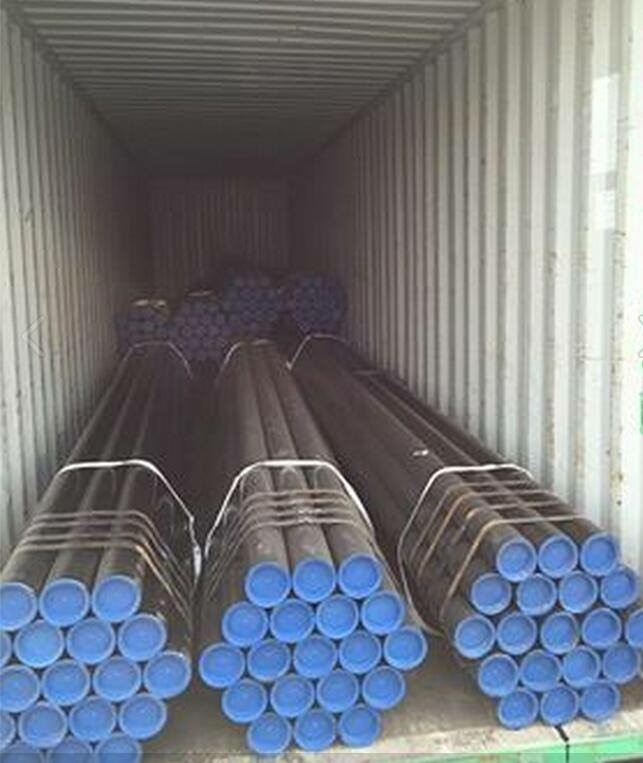

Steel and Pipe Boksburg Material Number : S235JR ERW Pipes Package
