Seamless Butt Weld Fittings Alloy 4140/ 4142 Shafts Gears Bolts Studs Connecting Rods Spindles
Place of Origin | China |
---|---|
Brand Name | Best |
Certification | API/CE/ISO /TUV |
Model Number | 1/2''-48'' |
Minimum Order Quantity | 1 PCS |
Price | 1 usd/pcs |
Packaging Details | wooden case and pallet or as per client demand |
Delivery Time | 7 working days , or negotiation |
Payment Terms | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability | 100000 Ton/ year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Name | Eccentric Reducer | Technics | Butt Welding Fittings |
---|---|---|---|
Standard | Oil Gas Water Industrial | Material | 304(L) .316L |
Type | Seamless | Usage | Oil Gas Water Industrial |
Production Year | 2018 | Product Name | +Kształtki +do +wspawania |
High Light | butt weld connection,butt weld steel pipe fittings |
Product Description
Product Name :Eccentric reducer seamless with Butt welding fittings Standard : ASME B16.9 Material : 304(L)
Product Name : +Kształtki +do +wspawania ,butt welded fittings
Alloy Cold Finished 4140 TG&G
Alloy Cold Finished AISI 4140 PRECISION GROUND SHAFTING (UNS G 41400)
- Turned, ground and polished shafting
- Straightness tolerance of 1 1/16” max in any five feet (5’)
Characteristics
− This high strength precision ground shafting is produced to exacting OD tolerances. The product offers the highest degree of overall accuracy and concentricity with a seam free surface finish of RMS 25 max. Precision ground shafting 4140 is available in both imperial and metric sizes
Typical Applications
− All forms of close tolerance shafting: camshafts, drive shafts, mill shafts, motor shafts, pump shafts, bolts, pins, studs, etc
Mechanical Properties
− For 215/16" or 74.9 mm diameter bar and smaller,
− ASTM A193, Grade B7 applies.
− For 3" or 76.2 mm diameter and greater, ASTM A434,
− Class BD or BC applies.
Type of fitting
Manufacturing process of the fi ttings
Heat treatment for fi ttings
Grades of steel
Mechanical properties
Dimensions and tolerances
Dimensions
Weld end types
Inspection requirements
Inspection lot sizes
Marking
Preparation for shipment, handling and packaging
Nominal Pipe Size | Length | Weight in Pounds | Nominal Pipe Size | Length | Weight in Pounds | |
1 1/4 x 1/2 | 2 | 0.42 | 1 1/4 x 1/2 | 2 | 0.53 | |
1 x 3/4 | 2 | 0.36 | 1 x 3/4 | 2 | 0.43 | |
1 x 1/2 | 2 | 0.36 | 1 x 1/2 | 2 | 0.42 | |
3/4 x 1 1/2 | 1 | 0.21 | 3/4 x 1 1/2 | 1.5 | 0.25 | |
1 1/2 x 1 1/4 | 2.5 | 0.65 | 1 1/2 x 1 1/4 | 2.5 | 0.78 | |
1 1/2 x 1 | 2.5 | 0.57 | 1 1/2 x 1 | 2.5 | 0.72 | |
1 1/2 x 3/4 | 2.5 | 0.56 | 1 1/2 x 3/4 | 2.5 | 0.65 | |
1 1/2 x 1/2 | 2.5 | 0.56 | 1 1/4 x 1/2 | 2.5 | 0.65 | |
1 1/4 x 1 | 2 | 0.48 | 1 1/4 x 1 | 2 | 0.57 | |
1 1/4 x 3/4 | 2 | 0.42 | 1 1/4 x 3/4 | 2 | 0.53 | |
1 1/4 x 1/2 | 2 | 0.42 | 2 1/2 x 2 | 3.5 | 2.1 | |
2 1/2 x 2 | 3.5 | 1.6 | 2 1/2 x 1 1/2 | 3.5 | 1.9 | |
2 1/2 x 1 1/2 | 3.5 | 1.5 | 2 1/2 x 1 1/4 | 3.5 | 1.7 | |
2 1/2 x 1 1/4 | 3.5 | 1.4 | 2 1/2 x 1 | 3.5 | 1.5 | |
2 1/2 x 1 | 3.5 | 1.3 | 2 1/2 x 12 x 1 1/2 | 3 | 1.2 | |
2 x 1 1/2 | 3 | 0.94 | 2 x 1 1/4 | 3 | 1.1 | |
2 x 1 1/4 | 3 | 0.88 | 2 x 1 | 3 | 1 | |
2 x 1 | 3 | 0.81 | 2 x 3/4 | 3 | 0.94 | |
2 x 3/4 | 3 | 0.74 | 3 1/2 x 3 | 4 | 4.1 | |
3 1/2 x 3 | 4 | 2.8 | 3 1/2 x 2 1/2 | 4 | 3.7 | |
3 1/2 x 2 1/2 | 4 | 2.7 | 3 1/2 x 2 | 4 | 3.5 | |
3 1/2 x 2 | 4 | 2.6 | 3 1/2 x 1 1/2 | 4 | 3.3 | |
3 1/2 x 1 1/2 | 4 | 2.6 | 3 1/2 x 1 1/2 | 4 | 3.3 | |
3 1/2 x 1 1/4 | 4 | 2.5 | 3 1/2 x 1 1/4 | 4 | 3.3 | |
3 x 2 1/2 | 3.5 | 2.2 | 3 x 2 1/2 | 3.5 | 2.8 | |
3 x 2 | 3.5 | 2 | 3 x 2 | 3.5 | 2.6 | |
3 x 1 1/2 | 3.5 | 1.9 | 3 x 1 1/2 | 3.5 | 2.4 | |
3 x 1 1/4 | 3.5 | 1.8 | 3 x 1 1/4 | 3.5 | 2.3 | |
3 x 1 | 3.5 | 1.7 | 3 x 1 | 3.5 | 2.2 | |
4 x 3 1/2 | 4 | 3.5 | 4 x 3 1/2 | 4 | 4.9 | |
4 x 3 | 4 | 3.3 | 4 x 3 | 4 | 4.7 | |
4 x 2 1/2 | 4 | 3.2 | 4 x 2 1/2 | 4 | 4.6 | |
4 x 2 | 4 | 3.1 | 4 x 2 | 4 | 4.3 | |
4 x 1 1/2 | 4 | 3 | 4 x 1 1/2 | 4 | 4.2 | |
4 x 1 1/4 | 4 | 3 | 4 x 1 1/4 | 4 | 4.1 | |
4 x 1 | 4 | 2.8 | 4 x 1 | 4 | 4 | |
5 x 4 | 5 | 5.5 | 5 x 4 | 5 | 7.5 | |
5 x 3 1/2 | 5 | 5.3 | 5 x 3 1/2 | 5 | 6.9 | |
5 x 3 | 5 | 5.1 | 5 x 3 | 5 | 6.3 | |
5 x 2 1/2 | 5 | 4.8 | 5 x 2 1/2 | 5 | 6.1 | |
5 x 2 | 5 | 4.7 | 5 x 2 | 5 | 6 | |
6 x 5 | 5.5 | 7.6 | 6 x 5 | 5.5 | 11.5 | |
6 x 4 | 5.5 | 7.4 | 6 x 4 | 5.5 | 10.7 | |
6 x 3 1/2 | 5.5 | 7.1 | 6 x 3 1/2 | 5.5 | 10 | |
6 x 3 | 5.5 | 6.9 | 6 x 3 | 5.5 | 9.7 | |
6 x 2 1/2 | 5.5 | 6.6 | 6 x 2 1/2 | 5.5 | 9.1 | |
6 x 2 | 5.5 | 6.5 | 6 x 2 | 5.5 | 8.6 | |
8 x 6 | 6 | 12.3 | 8 x 6 | 6 | 18.8 | |
8 x 5 | 6 | 11.5 | 8 x 5 | 6 | 17.6 | |
8 x 4 | 6 | 10.8 | 8 x 4 | 6 | 17 | |
8 x 3 1/2 | 6 | 10.6 | 8 x 3 1/2 | 6 | 15.9 | |
8 x 3 | 6 | 9.8 | 8 x 3 | 6 | 15 | |
10 x 8 | 7 | 22.1 | 10 x 8 | 8 | 29.4 | |
10 x 6 | 7 | 20.7 | 10 x 6 | 7 | 28.3 | |
10 x 5 | 7 | 19.5 | 10 x 5 | 7 | 26.9 | |
10 x 4 | 7 | 18.4 | 10 x 4 | 7 | 24.2 | |
12 x 10 | 8 | 32.4 | 12 x 10 | 8 | 41.5 | |
12 x 8 | 8 | 30.5 | 12 x 8 | 8 | 38.6 | |
12 x 6 | 8 | 29.5 | 12 x 6 | 8 | 37.4 | |
12 x 5 | 8 | 27.8 | 12 x 5 | 8 | 36.3 | |
12 x 4 | 8 | 26.2 | 12 x 4 | 8 | 34.7 | |
14 x 12 | 13 | 63.1 | 14 x 12 | 13 | 81 | |
14 x 10 | 13 | 61.4 | 14 x 10 | 13 | 76.7 | |
14 x 8 | 13 | 60 | 14 x 8 | 13 | 74.6 | |
14 x 6 | 13 | 59.2 | 14 x 6 | 13 | 72.3 | |
16 x 14 | 14 | 75.4 | 16 x 14 | 14 | 98 | |
16 x 12 | 14 | 72.7 | 16 x 12 | 14 | 95.8 | |
16 x 10 | 14 | 71.1 | 16 x 10 | 14 | 93.3 | |
16 x 8 | 14 | 69.4 | 16 x 8 | 14 | 91.1 | |
16 x 6 | 14 | 67.4 | 16 x 6 | 14 | 89.8 | |
18 x 16 | 15 | 87.3 | 18 x 16 | 15 | 118 | |
18 x 14 | 15 | 86 | 18 x 14 | 15 | 117 | |
18 x 12 | 15 | 84.8 | 18 x 12 | 15 | 115 | |
18 x 10 | 15 | 83.7 | 18 x 10 | 15 | 113 | |
20 x 18 | 20 | 123 | 20 x 18 | 20 | 162 | |
20 x 16 | 20 | 121 | 20 x 16 | 20 | 159 | |
20 x 14 | 20 | 119 | 20 x 14 | 20 | 157 | |
20 x 12 | 20 | 118 | 20 x 12 | 20 | 155 | |
20 x 10 | 20 | 117 | 20 x 10 | 20 | 152 | |
24 x 20 | 20 | 156 | 24 x 20 | 20 | 201 | |
24 x 18 | 20 | 153 | 24 x 18 | 20 | 197 | |
24 x 16 | 20 | 150 | 24 x 16 | 20 | 194 | |
24 x 14 | 20 | 147 | 30 x 24 | 24 | 315 | |
24 x 12 | 20 | 144 | 30 x 20 | 24 | 315 | |
24 x 10 | 20 | 141 | 30 x 18 | 24 | 315 | |
30 x 24 | 24 | 315 | 36 x 30 | 24 | 379 | |
30 x 20 | 24 | 315 | 36 x 24 | 24 | 379 | |
30 x 18 | 24 | 315 | 36 x 20 | 24 | 379 | |
36 x 30 | 24 | 379 | 42 x 36 | 24 | 443 | |
36 x 24 | 24 | 379 | 42 x 30 | 24 | 443 | |
36 x 20 | 24 | 379 | 42 x 24 | 24 | 443 | |
42 x 36 | 24 | 443 | 48 x 42 | 28 | 525 | |
42 x 30 | 24 | 443 | 48 x 36 | 28 | 525 | |
42 x 24 | 24 | 443 | 48 x 30 | 28 | 525 | |
48 x 42 | 28 | 525 | ||||
48 x 36 | 28 | 525 | ||||
48 x 30 | 28 | 525 |

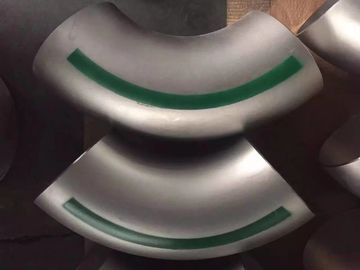

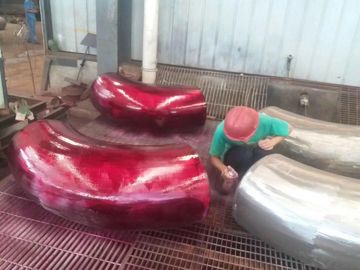

Product Show
