Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2

Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2
Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2 Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2 Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2 Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2 Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2

Large Image :  Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2

Product Details:
Place of Origin: China
Brand Name: Best
Certification: API
Model Number: 114.3 - 508 mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tons
Price: 600 usd/ton
Packaging Details: bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000Ton/Month
Detailed Product Description
Standard: API 5CT, API 5D Grade: K55, J55, L80-1 ,N80,C90,C95, P110, T95
Out Diameter: API J55, API K55, API L80, Application: Oil Pipe
Surface: Copper Coated Specification: 2 3/8"-4 1/2"*0.167"-0630"
High Light:

steel casing pipe

,

seamless casing pipe

Product Name :



Carbon Cold Finished
1045 Chrome Plated Shafting

Characteristics
− The basic product is cold drawn, precision ground and polished AISI 1045 shafting with a seam free surface finish of RMS 25 max. The bars are then hard chrome plated by electrolytically deposited layer of chromium metal on the surface. This hard chromed surface confers the important properties of corrosion resistance and wear resistance; it is also very smooth and therefore has a low coefficient of friction. Not least of all, it has an attractive and durable decorative appearance.

Typical Applications
− Hydraulic shafting, pneumatic piston rods, pump shafting, etc
Chrome Plating
− Finished thickness of – .0005" min per side (Winnipeg Branch: 0.001”min per side)
− Hardness of chrome – Rockwell C 65/70
− Surface finish – RMS 12 max





Carbon AISI/SAE 1040-1045 (UNS G10400-G10450)
- a Special Bar Quality Medium-Carbon Machinery Steel

Characteristics
− General purpose, fine grain, machinery steel suitable for a wide range of applications in the condition as supplied - approximately 90,000 psi (620 N/mm2) depending on the size of section. This steel is primarily water- hardening, but may also be quenched in oil. Excellent wear resistance can be obtained by flame or induction hardening. Care required if welding, due to higher carbon content. Good machinability

Typical Applications
− Shafts, axles, spindles, bolts, lightly stressed gears, machined parts of all types.
Typical Heat Treatment
− Forging – Commence 1150˚C Max finish 925⁰C.
− Annealing – 800˚ to 830˚C Surface cool
− 870/ 915˚C air Cool
− Normaling – 830˚C to 850˚C water quench
− Hardening – 850˚C to 870˚C oil quench.
− Tempering – 425˚C to 870˚C according to properties

Mechanical Properties
− Typical – as supplied
− Tensile Strength – 90,000 psi (620 N/mm2)
− Yield Strength – 23,000 psi (410 N/mm2)
− Elongation – 25%
− Reduction of Area – 50%
− Hardness – HB 201
− Machinability – 65



Carbon AISI/SAE 1018 COLD FINISHED (UNS G10180)
- Cold Drawn '20' Carbon Steel, available in all bar sections

Characteristics
− Most cold finished bars are produced by cold drawing oversize hot rolled bars through a die. The cold reduction of the bar results in significantly improved mechanical properties, with a smooth surface finish to close tolerances. The cold working of the bar likewise improves machinability, usually rated at 76. Larger bars are often produced by turning and polishing only. In this case, the properties of the steel are not improved and remain the same as the original hot rolled, special quality bar. The product is easy to weld and readily responds to carburizing. Cold finished product is manufactured in conformance to ASTM A108
Typical Applications
− All forms of shafting and machinery parts. When carburized -gears, pinions, king pins

Carbon Cold Finished  1045 Induction Hardened

Characteristics
− As with chrome plated shafting, the basic material is cold drawn, precision ground and polished AISI 1045 shafting. It is first induction hardened which results in surface hardness of approx. Rockwell C 55.
− This improves the properties of the bar and the extra hardness ensures superior wear resistance. The bars are then hard chrome plated in the same way as chrome plated shafting with the same advantages of corrosion and wear resistance. However, the induction hardened bar will give superior service

Typical Applications
− Hydraulic shafting, oil and water pump shafting, rotary pump shafts, and piston rods
Chrome Plating
− Finished thickness of – .0005" min per side (Winnipeg Branch: 0.001”min per side)
− Hardness of chrome – Rockwell C 65/70
− Surface finish – RMS 12 max

Induction Hardening
− Case Depth – .050” min
− Case Hardness – Rockwell C50 min
Tolerances
− Allowance is made for the chrome plating and standard minus tolerances
− apply as ASTM A29, Table A1.12
− See AISI 1045 Chrome Plated Shafting
Mechanical Properties
− Typical 75,000 psi minimum yield strength

Carbon Cold Finished
1144
Characteristics
− This product is severely cold worked to produce 100,000 psi minimum yield strengths. It can therefore compete for application and use in parts normally requiring heat treated alloy grades in the HB range 235/277. The bars are stress relieved to minimize warpage. The sulphur content enhances machinability. C1144 has excellent induction hardening properties. Welding is not recommended. Conforms to ASTM A311, Class B. Available in cold drawn and precision ground surface finishes

Typical Applications
− Arbors, keyed shafts, spindles, gears, pinions, pump shafts, machined parts in wide variety
Mechanical Properties
− Typical – as supplied, Not normally available over 4" dia. because of the cold working required
− Tensile Strength – 125,000 psi (862 N/mm2)
− Yield Strength – 100,000 psi (690 N/mm2)
− Elongation – 12%
− Reduction of Area – 20%
− Hardness – HB 255
− Machinability – 82
Tolerances
− For cold finish tolerances See 1045 TG&P



Carbon AISI/SAE 1018 COLD FINISHED
(UNS G10180)
Size Tolerances –Rounds Tolerances
- all tolerances are MINUS
11/2" dia. (38.1 mm) and under
Minus 0.002” (.050 mm)
Over 1 1/2" dia. to 2 1/2" dia (63.5 mm)
Minus 0.003” (.075 mm)
Over 2 1/2" dia. to 4" dia (101.6 mm)
Minus 0.004” (.100 mm)
Over 4" dia. to 6" dia (152.4" mm)
Minus 0.005” (.125 mm)
Over 6" dia. to 8" dia (203.2 mm)
Minus 0.006” (.150 mm)



Carbon 1018

Characteristics
− Produced to the requirements of ASTM A576 , this special bar quality, low-carbon machinery steels, is extremely versatile. It machines well and is easily weldable. The steel grade can be carburized

Typical Applications
− Bearing in mind the tensile strength of approximately 60,000 psi (414 N/mm2), the steel is suitable for a wide variety of general engineering parts, shafts, studs, bolts, tie-rods etc

Mechanical Properties
− Typical as supplied
− Tensile Strength – 58,000 psi
− 2Tensile Strength – 400 N/mm2
− Yield Strength – 32,000 psi
− 2Yield Strength – 220 N/mm2
− Elongation – 25%
− Reduction of Area – 50%
− Hardness – HB 116

Comment
− This product may also conform to the requirements of ASTMA36 complete with the mechanical property requirements detailed below
− Tensile Strength – 58,000 – 80,000 psi
− Yield Strength – 36,000 psi minimum, 250 Mpa minimum
− Elongation minimum – 20%
Aluminum Extrusions
Aluminum Squares and Rounds Only 6061

Bronze Aluminum Bronze Alloy 954
Characteristics
− Produced conforming to ASTM B505, Alloy 954 Aluminum Bronze is produced oversized to finish, machine to the nominal size ordered.
− Density: 0.340 lb/in3 at 68ºF; 9.41 g/cm3 at 20ºC

Mechanical Properties
− Yield – 35,000 psi
− Tensile Strength – 85,000 psi
− Elongation – 18%
− Hardness – 140-170 HBN
Bronze SAE660 Bearing

Characteristics
− Produced conforming to ASTM B505, SAE660 Bearing Bronze
(Bars and Tubes). Produced oversized. to finish, machine to the
nominal size ordered.
− Density: 0.322 lb/in3 at 68ºF; 8.91 g/cm3 at 20ºC

Typical Applications
− Industrial Machinery & Equipment Market: In-plant Equipment, Industrial Valves & Fittings, Turbines, Off-highway Vehicles
− Products: Bushings, Plumbing Valves, Air Brakes, Brass Anodes for Plating, Brass Plating of Steel Belts in Tires, Wear Plates in Cranes, Hydraulic Seals, Gears, Bearings, Valve Stems, Turbine seals, Flanges
− Transportation Equipment Market: Automotive Non-electrical, Railroad, Marine, Aircraft
− Products: Motors, General Hardware, Carburetor Assemblies, Fittings
− Military Market: All Specified Military Applications
− Water Handling Equipment: Alloys used in Marine service and products such as seawater piping, pumps, valves, etc
− Special Market (Fastest Growing Market) Products: Food Processing Equipment, Hydraulic Seals, Plumbing Valves, Wear Plates and Guides

Mechanical Properties
− Yield – 18,000 psi
− Tensile Strength – 35,000 psi
− Elongation – 20%
− Hardness – 60-70 HBN

Characteristics
− This is the least expensive and most versatile of the heat-treatable aluminum alloys and offers a good range of properties. It is generally selected where welding or brazing is required and for its high corrosion resistance

Typical Applications
− General engineering and structural components. Trucks and trailers. Boats.
− Furniture. Pipe fittings. Miscellaneous parts requiring good corrosion resistance.

Mechanical Properties
− Minimum Properties:
− UTS Yield – 38 ksi, 35 ksi
− Elongation in 2” – 8%-10%
− Typical Properties:
− UTS Yield – 45 ksi, 41 ksi
− Elongation in 2” – 12%-17%
− Shear Strength – 30 ksi

Aluminum
Bar Data Table



 OCTG (OLAJ ÉS GÁZIPARI, PETROKÉMIAI CSÖVEK), ÉGHETŐ ANYAGOK VEZETÉSÉRE
ALKALMAS CSÖVEK
OCTG azaz az un. éghető anyagok vezetésére alkalmas csöveket elsősorban olaj és gázipar számára forgalmazzuk,
csővezeték építéshez, szerelési és karbantartási munkákhoz hossz hegesztett és spirál hegesztett kivitelben. Ezen termékeket
kombinálni tudjuk csőszigeteléssel is.
Méretválaszték: Ø 21,3-3500 mm
Szabványok: EN 10208-1, EN 10208-2
Minőségek: L245MB/NB, L290MB/NB, L360 MB/NB, L290 NB/MB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA,
L360GA
Hosszak: 4-13 (20) m



OCTG (OIL, GAS, PETROCHEMICAL TUBES), TUBES SUITABLE FOR CONDUCTING
COMBUSTIBLE MATERIALS
We deal with our OCTG tubes (so called tubes suitable for conducting flammable materials) mainly for the petrochemical
oil and gas industry for big and smaller line pipe, maintenance project sin spirally welded and longitudinally welded typs.
Thes eproducts can be cominated with isolation and coatings.
Size assortment: Ø 21,3-3500 mm
Standards: EN 10208-1, EN 10208-2
Qualities: L245MB/NB, L290MB/NB, L360 MB/NB, L290 NB/MB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA, L360GA
Lenghts: 4-13 (20) m



API 5CT J55 oil casing seamless pipe Steel Grades: K55, J55, L80-1 ,N80,C90,C95, P110, T95







Standard: API 5CT, API 5D
Steel Grades: K55, J55, L80-1 ,N80,C90,C95, P110, T95
Size: 2 3/8"-4 1/2"*0.167"-0630"





Casing Pipe

Tubing steel pipe

Oil Casing Pipe/Steel Pipe

Including ordinary casing, Anti-collapse casing, Anti-corrosion casing, Hi-strength casing

Serves as walls of a well;

Standard: API 5CT

Steel Grades: k55, J55, L80,N80,C90,C95, P110 T95, M65,E75,X95,G105,S135





1) Tubing



OD: 2 3/8" -----4 1/2"

WT: 0.167" -----0.630"



Note: P : Plain end, N: Non upset, U: External upset, T&C: Threaded and coupled.



2) Casing



OD: 2 3/8“ ----20"

WT: 0.205" --- 0.5"

Note: P: Plain end, S: Short round thread, L: Long round thread



Length

R1 R2 R3

Tubing 6.10 -7.32 m 8.53-9.75m 11.58-12.80m

Casing 4.88 - 7.62m 6.72 -10.36m 10.36 - 14.63m



3) Drill Pipe

OD: 2 3/8" - 5 1/2"

WT: 0.280" - 0.449"

Note: EU: External upset , IEU: Internal & External upset

Thread of tool joint are right-hand or left hand



Welded Casing and Tubing

Forged Carbon Steel Piping Casing And Tubing Carbon A105 A350 LF2 DUAL A105 A350-LF2 0

Produced at Camrose, Calgary, Red Deer, and Regina.

Grades

  • API 5CT H40, J55, L80, N80 and P110; and proprietary E80.

Diameters

  • 2 3/8 - 16 in (60.3 - 406.4 mm)

Wall Thickness

  • 0.190 - 0.545 in (4.8 - 13.8 mm)

Lengths

  • Range 1, 2, and 3



Seamless Casing

FEATURING New Proprietary Seamless Casing Products!


Produced at Pueblo.

Grades

  • API 5CT N80, L80, P110 and proprietary CF95.
  • Proprietary ENA 80-SS
  • Proprietary ENA Q125-HCl

Diameters

  • 7 - 9 5/8 in (177.8 - 244.5 mm)

Wall Thickness

  • 0.317 - 0.595 in (8.5 - 15.1 mm)



API Oil pipe, Casing pipe





Type

Label 1

(in)

Outside diameter

(mm)

Wall thickness

(mm)

Grade Type of thread Length
Casing 4-1/2 114.30 5.21-8.56 H40-P110

STC



LC



BC

4.88-13.5m
5 127.00 5.59-12.70 H40-P110
5-1/2 139.70 6.20-22.22 H40-P110
6-5/8 168.28 7.32-12.06 H40-P110
7 177.80 5.87-22.22 H40-P110
Oil pipe 2-3/8 60.32 4.24-8.53 H40-P110

NU



EU

6.1-12.8m
2-7/8 73.02 5.51-11.18 H40-P110
3-1/2 88.90 5.49-13.46 H40-P110
4 101.60 5.74-15.49 H40-P110
4-1/2 114.30 6.88-16.00 H40-P110



Grade Yield Strength(Mpa) Tensile Strength(Mpa) Hardness
J55 379-522 >517
K55 379-552 >655
N80 552-758 >689
L80-1 552-655 >689 23-241
C90 621-724 >689 25.4-255
C95 655-758 >724
T95 655-758 >724 25.4-255
P110 758-965 >862

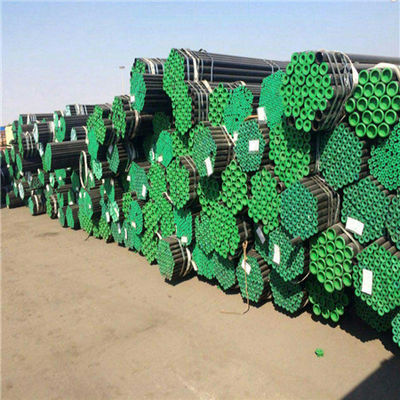

API 5CT J55 oil casing seamless pipe  Pictures
