Copper Coated Casing And Tubing Bronze AluminumAlloy 954 Conforming To ASTM B505 Alloy
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API |
| Model Number | 114.3 - 508 mm |
| Minimum Order Quantity | 1 Tons |
| Price | 600 usd/ton |
| Packaging Details | bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer. |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | API 5CT, API 5D | Grade | K55, J55, L80-1 ,N80,C90,C95, P110, T95 |
|---|---|---|---|
| Out Diameter | API J55, API K55, API L80, | Application | Oil Pipe |
| Surface | Copper Coated | Specification | 2 3/8"-4 1/2"*0.167"-0630" |
| High Light | seamless casing pipe,oil casing and tubing |
||
Product Description
Product Name :
Aluminum Extrusions
Aluminum Squares and Rounds Only 6061
Bronze Aluminum Bronze Alloy 954
Characteristics
− Produced conforming to ASTM B505, Alloy 954 Aluminum Bronze is produced oversized to finish, machine to the nominal size ordered.
− Density: 0.340 lb/in3 at 68ºF; 9.41 g/cm3 at 20ºC
Mechanical Properties
− Yield – 35,000 psi
− Tensile Strength – 85,000 psi
− Elongation – 18%
− Hardness – 140-170 HBN
Bronze SAE660 Bearing
Characteristics
− Produced conforming to ASTM B505, SAE660 Bearing Bronze
(Bars and Tubes). Produced oversized. to finish, machine to the
nominal size ordered.
− Density: 0.322 lb/in3 at 68ºF; 8.91 g/cm3 at 20ºC
Typical Applications
− Industrial Machinery & Equipment Market: In-plant Equipment, Industrial Valves & Fittings, Turbines, Off-highway Vehicles
− Products: Bushings, Plumbing Valves, Air Brakes, Brass Anodes for Plating, Brass Plating of Steel Belts in Tires, Wear Plates in Cranes, Hydraulic Seals, Gears, Bearings, Valve Stems, Turbine seals, Flanges
− Transportation Equipment Market: Automotive Non-electrical, Railroad, Marine, Aircraft
− Products: Motors, General Hardware, Carburetor Assemblies, Fittings
− Military Market: All Specified Military Applications
− Water Handling Equipment: Alloys used in Marine service and products such as seawater piping, pumps, valves, etc
− Special Market (Fastest Growing Market) Products: Food Processing Equipment, Hydraulic Seals, Plumbing Valves, Wear Plates and Guides
Mechanical Properties
− Yield – 18,000 psi
− Tensile Strength – 35,000 psi
− Elongation – 20%
− Hardness – 60-70 HBN
Characteristics
− This is the least expensive and most versatile of the heat-treatable aluminum alloys and offers a good range of properties. It is generally selected where welding or brazing is required and for its high corrosion resistance
Typical Applications
− General engineering and structural components. Trucks and trailers. Boats.
− Furniture. Pipe fittings. Miscellaneous parts requiring good corrosion resistance.
Mechanical Properties
− Minimum Properties:
− UTS Yield – 38 ksi, 35 ksi
− Elongation in 2” – 8%-10%
− Typical Properties:
− UTS Yield – 45 ksi, 41 ksi
− Elongation in 2” – 12%-17%
− Shear Strength – 30 ksi
Aluminum
Bar Data Table
OCTG (OLAJ ÉS GÁZIPARI, PETROKÉMIAI CSÖVEK), ÉGHETŐ ANYAGOK VEZETÉSÉRE
ALKALMAS CSÖVEK
OCTG azaz az un. éghető anyagok vezetésére alkalmas csöveket elsősorban olaj és gázipar számára forgalmazzuk,
csővezeték építéshez, szerelési és karbantartási munkákhoz hossz hegesztett és spirál hegesztett kivitelben. Ezen termékeket
kombinálni tudjuk csőszigeteléssel is.
Méretválaszték: Ø 21,3-3500 mm
Szabványok: EN 10208-1, EN 10208-2
Minőségek: L245MB/NB, L290MB/NB, L360 MB/NB, L290 NB/MB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA,
L360GA
Hosszak: 4-13 (20) m
OCTG (OIL, GAS, PETROCHEMICAL TUBES), TUBES SUITABLE FOR CONDUCTING
COMBUSTIBLE MATERIALS
We deal with our OCTG tubes (so called tubes suitable for conducting flammable materials) mainly for the petrochemical
oil and gas industry for big and smaller line pipe, maintenance project sin spirally welded and longitudinally welded typs.
Thes eproducts can be cominated with isolation and coatings.
Size assortment: Ø 21,3-3500 mm
Standards: EN 10208-1, EN 10208-2
Qualities: L245MB/NB, L290MB/NB, L360 MB/NB, L290 NB/MB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA, L360GA
Lenghts: 4-13 (20) m
API 5CT J55 oil casing seamless pipe Steel Grades: K55, J55, L80-1 ,N80,C90,C95, P110, T95
Standard: API 5CT, API 5D
Steel Grades: K55, J55, L80-1 ,N80,C90,C95, P110, T95
Size: 2 3/8"-4 1/2"*0.167"-0630"
Casing Pipe
Tubing steel pipe
Oil Casing Pipe/Steel Pipe
Including ordinary casing, Anti-collapse casing, Anti-corrosion casing, Hi-strength casing
Serves as walls of a well;
Standard: API 5CT
Steel Grades: k55, J55, L80,N80,C90,C95, P110 T95, M65,E75,X95,G105,S135
1) Tubing
OD: 2 3/8" -----4 1/2"
WT: 0.167" -----0.630"
Note: P : Plain end, N: Non upset, U: External upset, T&C: Threaded and coupled.
2) Casing
OD: 2 3/8“ ----20"
WT: 0.205" --- 0.5"
Note: P: Plain end, S: Short round thread, L: Long round thread
Length
R1 R2 R3
Tubing 6.10 -7.32 m 8.53-9.75m 11.58-12.80m
Casing 4.88 - 7.62m 6.72 -10.36m 10.36 - 14.63m
3) Drill Pipe
OD: 2 3/8" - 5 1/2"
WT: 0.280" - 0.449"
Note: EU: External upset , IEU: Internal & External upset
Thread of tool joint are right-hand or left hand
Welded Casing and Tubing
Produced at Camrose, Calgary, Red Deer, and Regina.
Grades
- API 5CT H40, J55, L80, N80 and P110; and proprietary E80.
Diameters
- 2 3/8 - 16 in (60.3 - 406.4 mm)
Wall Thickness
- 0.190 - 0.545 in (4.8 - 13.8 mm)
Lengths
- Range 1, 2, and 3
Seamless Casing
FEATURING New Proprietary Seamless Casing Products!
Produced at Pueblo.
Grades
- API 5CT N80, L80, P110 and proprietary CF95.
- Proprietary ENA 80-SS
- Proprietary ENA Q125-HCl
Diameters
- 7 - 9 5/8 in (177.8 - 244.5 mm)
Wall Thickness
- 0.317 - 0.595 in (8.5 - 15.1 mm)
API Oil pipe, Casing pipe
| Type |
Label 1 (in) |
Outside diameter (mm) |
Wall thickness (mm) |
Grade | Type of thread | Length |
| Casing | 4-1/2 | 114.30 | 5.21-8.56 | H40-P110 |
STC
LC
BC |
4.88-13.5m |
| 5 | 127.00 | 5.59-12.70 | H40-P110 | |||
| 5-1/2 | 139.70 | 6.20-22.22 | H40-P110 | |||
| 6-5/8 | 168.28 | 7.32-12.06 | H40-P110 | |||
| 7 | 177.80 | 5.87-22.22 | H40-P110 | |||
| Oil pipe | 2-3/8 | 60.32 | 4.24-8.53 | H40-P110 |
NU
EU |
6.1-12.8m |
| 2-7/8 | 73.02 | 5.51-11.18 | H40-P110 | |||
| 3-1/2 | 88.90 | 5.49-13.46 | H40-P110 | |||
| 4 | 101.60 | 5.74-15.49 | H40-P110 | |||
| 4-1/2 | 114.30 | 6.88-16.00 | H40-P110 |
| Grade | Yield Strength(Mpa) | Tensile Strength(Mpa) | Hardness |
| J55 | 379-522 | >517 | |
| K55 | 379-552 | >655 | |
| N80 | 552-758 | >689 | |
| L80-1 | 552-655 | >689 | 23-241 |
| C90 | 621-724 | >689 | 25.4-255 |
| C95 | 655-758 | >724 | |
| T95 | 655-758 | >724 | 25.4-255 |
| P110 | 758-965 | >862 |

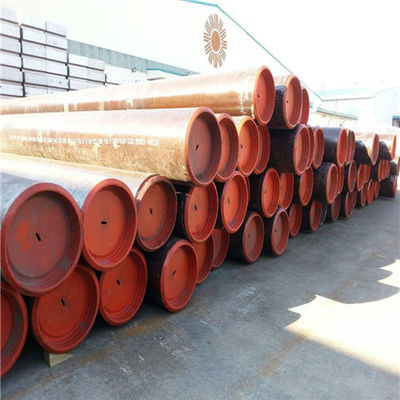

API 5CT J55 oil casing seamless pipe Pictures
