Round Shape ERW Steel Pipe DIN 59411 STN 426937 St37-2 11 373 S235JRG2
Place of Origin | China |
---|---|
Brand Name | Best |
Certification | API /CE / ISO /TUV |
Model Number | 1/2'' -48'' |
Minimum Order Quantity | 1 TONS |
Price | 450 USD/TON |

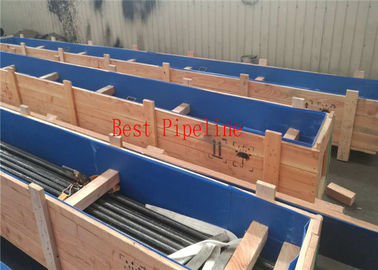

Packaging Details | 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description. |
Delivery Time | Shipped in 25 days after payment |
Payment Terms | L/C, T/T |
Supply Ability | 100000 Ton/Year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | PN-EN 10305-2 | Grade | Cold Drawn Steel Tubes |
---|---|---|---|
Technique | E155 , E195, E235 , E275 | Finish | SAWH |
Keyword | SAWL (longitudinal Welding) | Inspection | With Hydraulic Testing |
Surface | Barded /Painting | ||
High Light | erw steel line pipe,erw mild steel pipe |
Production Information : Uzavretý so štvorcovým prierezom DIN 59411, STN 426937 St37-2, 11 373, S235JRG2
NAGY ATMER.J. SPIRALHEGESZTETT ES HOSSZHEGESZTETT ACELCSOVEK
(HFW, HFI, ERW, SAWH, SAWL)
Cegunk spiralhegesztett es hosszhegesztett kivitelben is forgalmaz acelcsoveket raktarrol es gyartasbol is tudunk ezekre
az acelcsovekre kedvez. ajanlatot tenni. kulonboz. hosszakban es anyagmin.segekben. A spiral hegesztett es hosszhegesztett
csoveket els.sorban gepipari, epit.ipari, energetikai alkalmazasokra forgalmazzuk.
A hegesztett csovek atmer. tartomanya spiral hegesztett csovek eseten 4500 mm atmer.ik, hosszhegesztett csovek
eseten 2200 mm atmer.ig terjedhet. Lehet.seg van mindket hegesztett cs.tipus eseten a legkulonboz.bb akar szabvanytol
elter. falvastagsagok beallitasara es egyedi kuls. atmer.j. csovek legyartatasara is.
Anyagmin.segek tekinteteben a nagy atmer.j. hegesztett csovek a legaltalanosabb szerkezeti anyagmin.segekt.l
kezdve egeszen a specialisabb kazan min.segekig terjed.
Meretvalasztek: spiral hegesztett: O 159-3251 mm
Szabvanyok: EN 10224, EN 10219-1/2, EN 10217-1/2/5, EN 10210-1/2, EN 102008-1/2, API5L, ASTMA53
Min.segek: S235, S355, P235TR1/TR2, P235GHTC1/TC2, P355N, S235JRH. S355JRH, P265GH, P235GH, L235/275/355,
S355J2+N
lasd tovabba API es OCTG min.segek.
Hosszak: 4-18 (20) m
BIG SIZE SPIRAL WELDED AND LONGITUDINAL STEEL TUBES (HFW, HFI, ERW,
SAWH, SAWL)
Our company deals with spiral and longitudinally welded steel tubes as well from stock and from fresh production with
favorable prices with different lenghts and qualitis. Our spiral and longitudinally welded tubes used mainly at the machinery,
building an energy sectors.
The outside diameter sortiment of the welded tubes is untill 4500 mm in case of spiral welded tubes and untill 2200 mm
in case of longitudinally welded tubes. In both welded tube typs there is a possibility to produce and adjust unique and
customised wall thickness, outside diameters different from the standard.
In case of steel qualitis the most common structural qualitis available such as the most specific boiler ones.
Size assortment: spiral welded : Ø 159-3251 mm, longitudional welded: Ø 159 (21,3) – 610 mm
Standards: EN 10224, EN 10219-1/2, EN 10217-1/2/5, EN 10210-1/2, EN 102008-1/2, API5L, ASTMA53
Qualities: S235, S355, P235TR1/TR2, P235GHTC1/TC2, P355N, S235JRH. S355JRH, P265GH, P235GH, L235/275/355,
S355J2+N
see futher API and OCTG qualitis.
Lenghts: 4-18 (20) m
WELDED AND SEAMLESS BOILER TUBES, HEAT EXCHANGER TUBES, ALLOYED
TUBES
We supply boiler tubes mainly for classic boiler and heat exchanger production but also for power plants, line pipes. Our
boiler tubes are available in welded and seamless and also in carbon and stainless type.
In case of boiler tubes there is a possibility to supply according to national standards such as ASTM/ASME beside the
classic EN/DIN, also we can provide You almost all kinds of qualitis.
Ouc company can supply boiler tube parts onto the boiler tubes as well like elbows, bottoms, reducers, flanges. Please
send Your demand to us!
Size assortment: longitudinal welded: 21,3-610 mm, seamless: 21,3-812 mm, spiral welded: acc. To customised demands
Standards: EN 10217-2, EN 10220, EN 10216-2, DIN 2448/17175, AD 2000 W4/DGRL97/23/EG VdTÜV WB 511/2, AD
2000 W4/TRD 100/102
Qualities: P235GHTC1/TC2, 16Mo3, 13CrMo4-5, 10CrMo9-10, X10CrMoVNB9-1, X20crMo V11-1, St35 .8.I., St 35.8.III.,
P195GH, P235GH, P265GH, 14MoV6-3, 10CrMo5-5, 11CrMo9-10, 25CrMo4, L235/275/355, P215NL, P265NL, P355N,
P460N, P355NH, P355NL1, P460NL1, P275NL2, P355NL2, P460NL2
Lenghts: 4-18 m
The advantage of steel tubes for precision applications is the high precision of their manufacturing, the good quality of their surface, and the guaranteed mechanical and technological properties. That is why the pipes are widely used in the machining industry and in the automotive industry. Welded pipes for precision applications are manufactured in the process of cold drawing.
PN-EN10305-2 Delivery condition
Designation | Symbol | Description |
Cold drawn / hard | +C | Without thermal processing, after the process of cold drawing is finished |
Cold drawn / soft | +LC | After final thermal processing, appropriate drawing |
Cold drawn and annealed | +SR | After the final cold drawing process and annealing thermal processing in a controlled atmosphere |
Annealed | +A | After the final cold drawing process, the pipes are annealed in a controlled atmosphere |
Normalized | +N | After the final cold drawing process, the pipes are normalized in a controlled atmosphere |
Mechanical properties in room temperature
Steel grade | Maximum values depending on the delivery condition | |||||||||||
+C | +LC | +SR | +A | +N | ||||||||
Steel symbol | RmMPa | A % | RmMPa | A % | RmMPa | ReHMpa | A % | RmMPa | A % | Rm MPa | ReHMpa | A % |
E155 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270 do 410 | 155 | 28 |
E195 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300 do 440 | 195 | 28 |
E235 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340 do 480 | 235 | 25 |
E275 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 510 do 550 | 275 | 21 |
E355 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490 do 630 | 355 | 22 |
Chemical composition (ladle analysis)
Steel grade | % of the mass | ||||
Steel symbol | C max | Si max | Mn max | P max | S max |
E155 | 0,11 | 0,35 | 0,70 | 0,025 | 0,025 |
E195 | 0,15 | 0,35 | 0,70 | 0,025 | 0,025 |
E235 | 0,17 | 0,35 | 1,20 | 0,025 | 0,025 |
E275 | 0,21 | 0,35 | 1,40 | 0,025 | 0,025 |
E355 | 0,22 | 0,35 | 1,60 | 0,025 | 0,025 |
Inspection and test list
Inspection or test type | Test frequency | ||
Internal tests | Acceptance test | ||
Mandatory | Chemical analysis | M | M |
Tensile testing | M | One per tested batch | |
Dimension verification | M | M | |
Visual inspection | M | M | |
Optional | Flattening test or expansion test (option 18) | M | One per tested batch |
Roughness testing | Not applicable | One per tested batch | |
NDT of the weld in order to identify any longitudinal discontinuities | Not applicable | Individual | |
NDT in order to detect any leaks |
PN-EN 10305-2 Cold drawn steel tubes for precision applications Pictures
