Fertilizer Production Stainless Steel Pipe X1 Cr Ni Mo N 25 22 2 X1 Cr Ni Mo N 25 25
| Place of Origin | China /Japan |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO /TUV/PED |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1Pcs |
| Price | 500 usd/Ton |
| Packaging Details | standard export packing or as required |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C/ TT |
| Supply Ability | 1000000 Ton/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | EN 10217-7 TC1 D3/T3/ ASTM A269 | Material | 1.4404 /316/316L |
|---|---|---|---|
| Size | 10inch Wall Thickness : 1.000 Inch | Polish | Satin,Bright Or Mirror |
| Out Diameters | 6mm~2500mm | Application | Seawater Heat Exchanger Tubes And Seawater Desalination Plant Pipes |
| High Light | stainless steel seamless pipe,stainless steel tubing |
||
Product Description
X1 Cr Ni Mo N 25 22 2 X1 Cr Ni Mo N 25 25 STAINLESS STEEL AND NICKEL ALLOYS TUBES & PIPES FOR FERTILIZER PRODUCTION
Product Name :Standard : EN 10217-7 TC1 D3/T3 Welded stainless steel tube Quality : 1.4404 WITH ASTM A269 316(L)
What is 1.4404 ?
1.4404/ 1.4401 (ASTM 316/ 316L – ≈ SS2348)
By using 1.4404 (ASTM 316/ 316L – ≈ SS2348) you get a corrosion resistant austenitic stainless steel with good formability. The steel is modified for machining and has very good corrosion resistance. The steel is often used for details within building and construction, process industry.
The steel grade 1.4404 (also called ASTM 316/ 316L and ≈ SS2348) is a stainless ” acid-proof” steel which is easy to machine. The steel has improved machinability by, MAXIVAL®, and it is suitable for production of corrosion resistant products by machining. 1.4404 has a very good corrosion resistance which make it useful within a wide range of areas. It has an improved resistance to pitting and crevice corrosion in environments containing chlorides, due to the addition of moybdenium. It is non-magnetic but may become slightly magnetic after cold working and welding.
Typical application areas for 1.4404:
- Construction
- Building
- Process Industry
- Reinforcement
Product data sheet 1.4404
If you need further information about the properties of the steel grade, machining and welding:
| Specifications | : | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| ERW 316L Pipes & Tubes | : | 1/2″ NB – 24″ NB |
| EFW 316L Pipes & Tubes | : | 6″ NB – 100″ NB |
| 316L Pipes & Tubes | : | 1/2″ NB – 16″ NB |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Specialized in | : | Large Diameter Size |
| Length | : | Single Random, Double Random & Cut Length. |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| End | : | Plain End, Beveled End, Treaded |
Stainlesss Steel 316L Pipes & Tubes Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
TP 316L Stainless Steel Pipes & Tubes Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L | min. | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
| max. | 0.08 | 2.00 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
Physical properties :
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
ASTM A312 / A213 SS TP 316L Pipes & Tubing Mechanical properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40% | 95 | 217 |

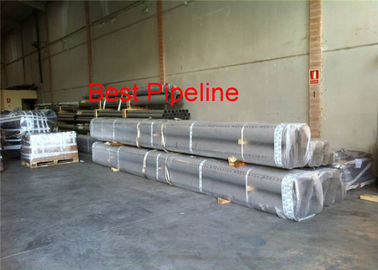

1.4404/ 1.4401 Welded stainless Steel Pipes pictures
