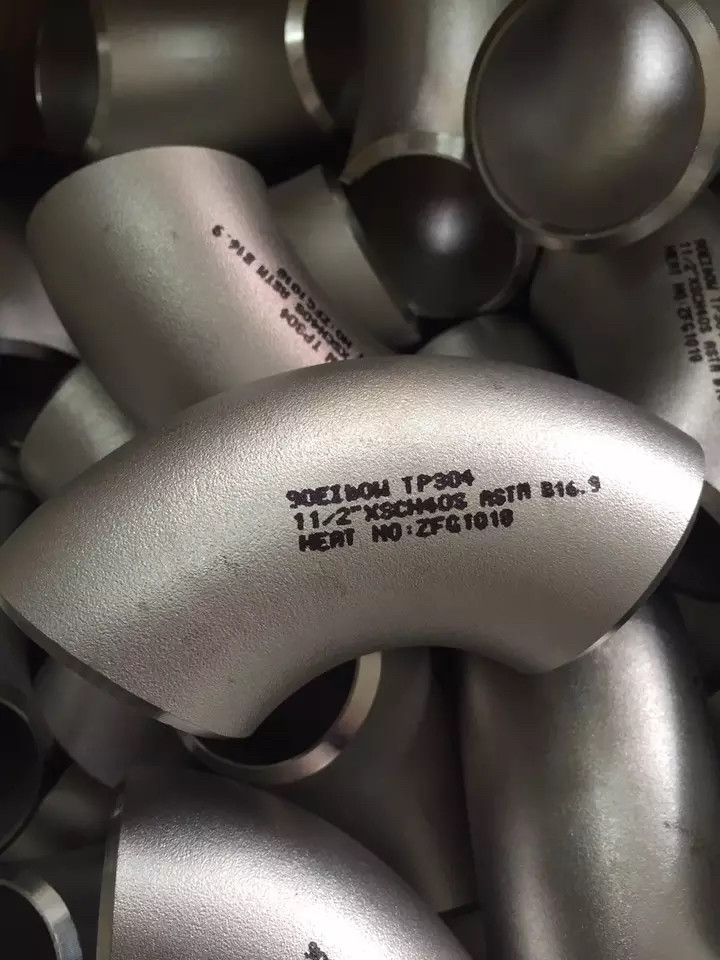

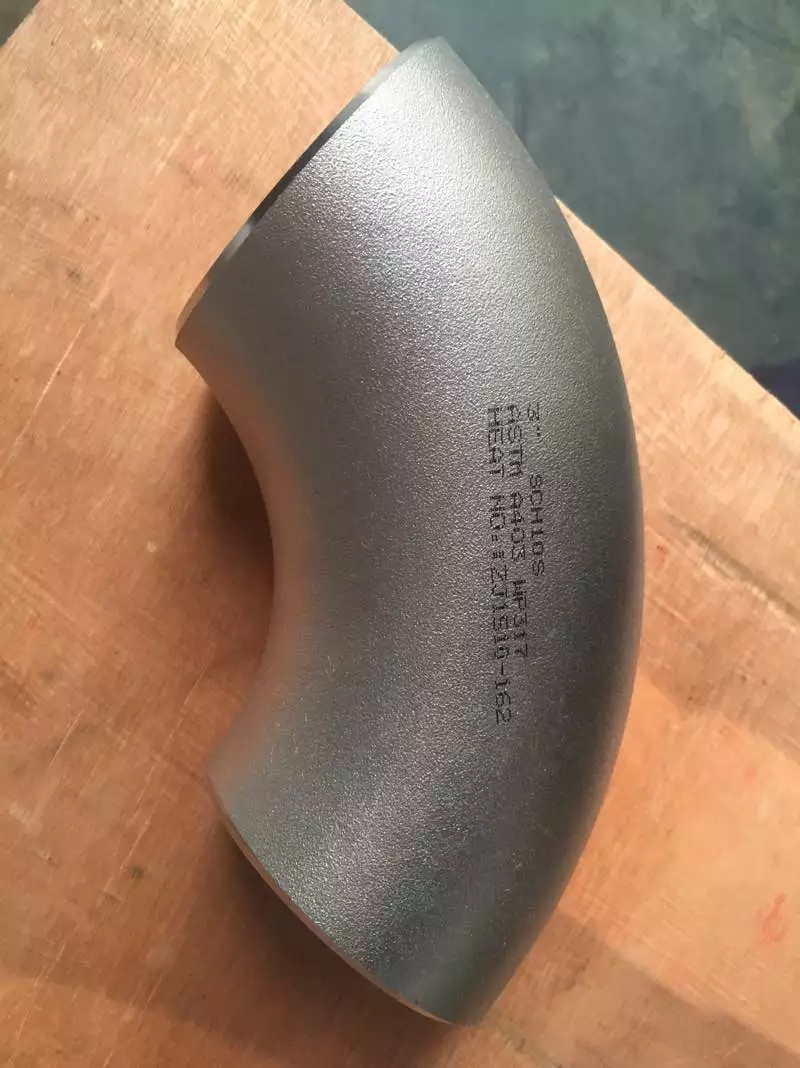

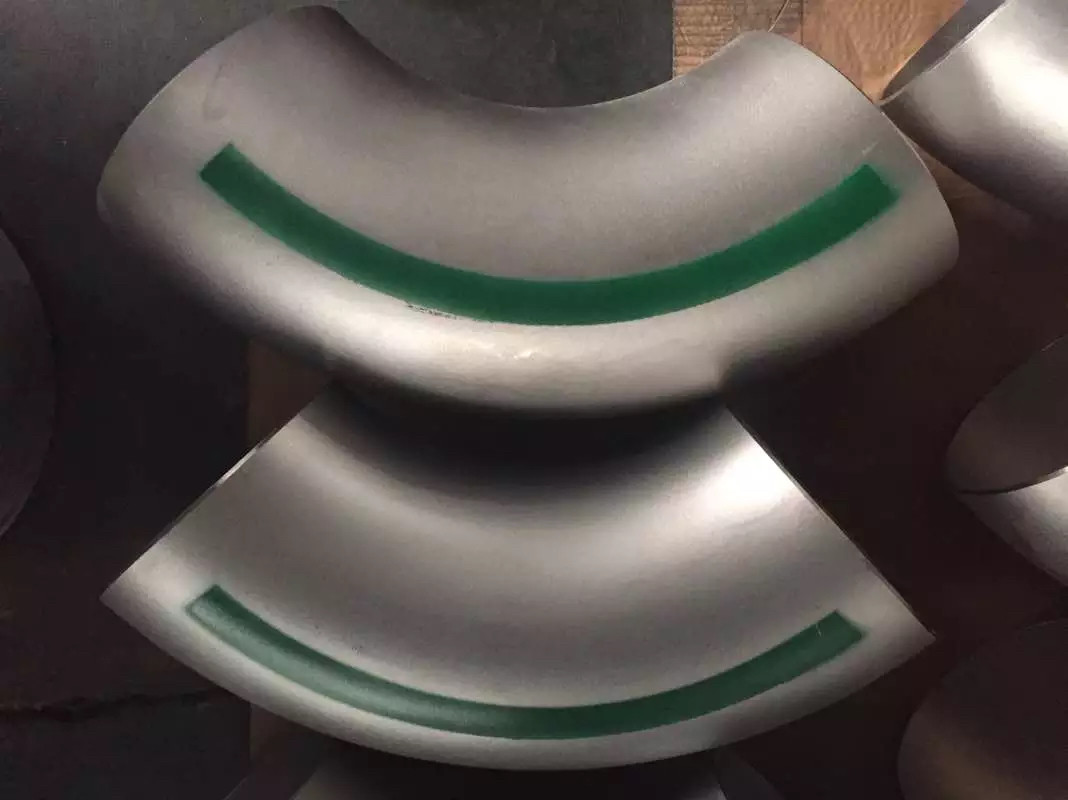

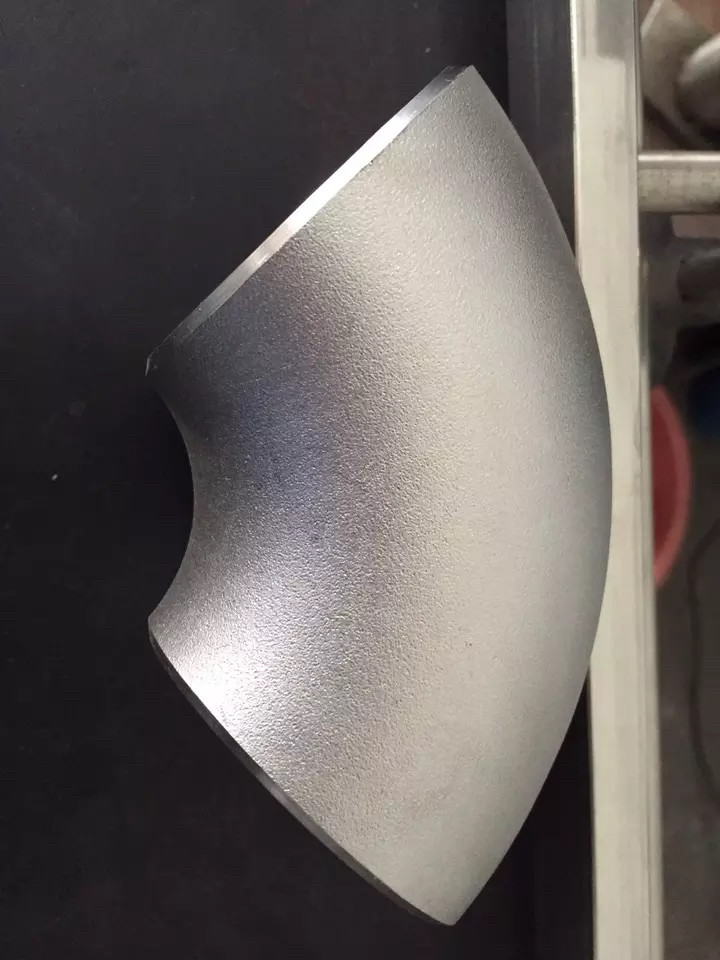

Stainless Steel Material Butt Weld Fittings Seamless Elbows 90 Degrees Welded
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO /TUV |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1 PCS |
| Price | 1 usd/pcs |
| Packaging Details | wooden case and pallet or as per client demand |
| Delivery Time | oil gas water industrial |
| Payment Terms | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
| Supply Ability | 100000 Ton/ year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elbow | Standard | Oil Gas Water Industrial |
|---|---|---|---|
| Material | 304L | Surface | Black Painting, Rust-proof Oil, |
| Tolerances | ASME B16.9 | Usage | Oil Gas Water Industrial |
| Production Year | Butt Welding Fittings | ||
| High Light | butt weld connection,butt weld steel pipe fittings |
||
Product Description
Product Name :Elbow r=152 90 degrees welded DIN 11852 BS 304(L) With Butt welding Fittings
KS : KOREAN INDUSTRIAL STANDARDS
KSB 1522 : Steel Butt Welding Pipe Fittings for Oidinary use and Fuel Gas.
KSB 1541: Steel Butt Welding Pipe Fittings.
KSB 1542 : Steel Socket Welding Pipe Fittings.
KSB 1543 : Steel Plate Butt Welding Pipe Fittings.
JIS : JAPANESE INDUSTRIAL STANDARDS
JIS B2311 : Steel Butt Welding Pipe Fittings for Ordinary use.
JIS B2312: Steel Butt Welding Pipe Fittings.
JIS 2313 : Steel Plate Butt Welding Pipe Fittings.
JIS B2316 : Steel Socket Welding Pipe Fittings.
Product Information :
| size | 1/2"-72"(DN15-DN1200)1.5*1.5~80*80 |
| connection | welding |
| technic | forged |
| varieties | SCH20, SGP, STD, SCH40, SCH80, SCH160 |
| material | carbon steel ,alloy steel ,stainless steel WPBA234,Q235,20#,A420 A403-WP304,A403-WP316,A403-WP316L,A403-WP317,A403-WP321 etc. |
| standard | BS, DIN ,JIS,etc. ANSI B16.9/16.28, ASTM,API 5L, DIN2605/2615/2616, JIS P2311/2312 ASME B36.10M---1996 |
| connection | welding |
| quality | first grade |
| Certification | ISO9001 - 2000, CE, SGS, etc. |
| Application | petroleum, electricity, chemicals, natural gas, construction, shipbuilding and other fields because of its high pressure, high temperature, etc |

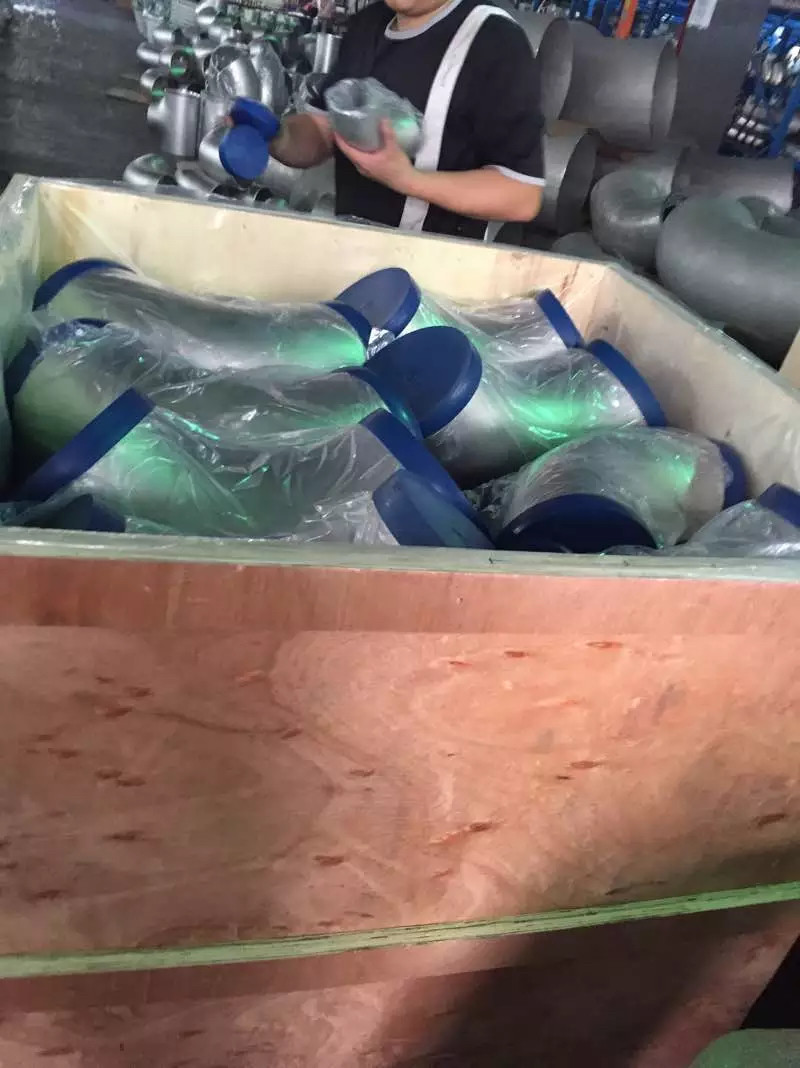

| Packaging | wooden case,pallet ,container or in accordance with the requirements of customers |
| principle | quality first,customer first,credit first, |
| delivery time | 7-25 days after payment |
| payment | L/C T/T |
| Surface treatment | Black rust-proof oil, transparent oil, hot galvanizing |
| notes | The bevel can be made according to the special requirements of the customers |
| others | we can also produce the products accordance with the requirements of customers |
Pipe Caps Information :
| PIPE CAP | |
| Type | BW(butt-welding); High pressure cap ; Threaded cap, Seamless cap; Welded cap, carbon steel pipe fitting |
| Standard | ANSI B16.9 / 16.28, API 5L, ASME B36.10M---1996, DIN2605/2615/2616, JIS P2311/2312 |
| Size | 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded) |
| Wall Thickness | SGP ~ SCH XXS |
| Surface treatment | Transparent oil, rust-proof oil or hot galvanizing. |
Elbow Information :
| ELBOW TECHNICAL INFORMATION: | |
| Type | BW(butt-welding); SW(socket-welding); Threaded elbow; Seamless elbow; Welded elbow carbon steel pipe fitting |
| Standard |
ASME/ANSI B16.9, B16.11, B16.28, B16.5; MSS SP-43, 83, SY/T051-1998, SY5257-91 |
| Size | 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded) |
| Wall Thickness | SCH 5 ~ SCH XXS |
| Radius | LR(R=1.5D); SR(R=1.0D), Special design available. |
| Angel | 45°,60°, 90°,180°,Special design available. |
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized. |
Tee Information :
| TEE | |
| Type carbon pipe fittings | Equal tee; Reducing tee; Y type; 45°type; welded tee; seamless tee; BW(butt-welding) |
| Standard | ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS |
| Size | 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded) |
| Wall Thickness | SCH 5 ~ SCH XXS |
| Surface treatment | Transparent oil, rust-proof oil or hot galvanizing. |
