6m Length Alloy Steel Seamless Pipes Heat Treatment From 2’’ NPS Up To 24’’ OD
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |

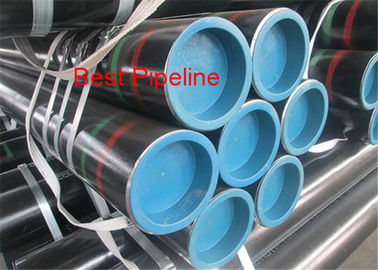

| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| WNR | 1.5682/1.5562 | Pipe Seamless | A/SA333 GR8 |
|---|---|---|---|
| Pipe Welded | A/ SA671C100/ CH100 | EN | EN10216-4/EN10217-4 |
| Packing | Pipes May Be Furnished Bard Or Coated And With Capped Ends | Test | SGS/BV/TUV |
| Length | 6m | Application Industries | Petrochemical Industries |
| High Light | alloy steel seamless tubes,seamless alloy steel tube |
||
Product Description
Name : EN X10Ni9/ X8Ni9 Low temperature Nickel Steel alloy steel seamless pipes for pressure purpose and low temp
You are looking for EN X10Ni9/ X8Ni9 Low temperature Nickel Steel alloy steel seamless boiler pipes with different specifications? We can also supply these with the relevant certificates.
|
Alloy steel pipe Standard & Material:
|
GB5310-2013 Standard: 20G,25MnG, 15MoG,15CrMoG, 20MoG, 12CrMoG, 12Cr2MoG,12Cr1MoVG, 12Cr2MoWVTiB, 10Cr9Mo1VNb, 15CrMoG, 10CrMo910,
ASTM A209M/AS-209M Standard A209T1/SA209 T1, A209 T1b/SA-209 T1b, A209T1a/SA209 T1a
ASTM A213M/ASME SA 213 M
Standard: T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122 ASTM A333M/ASME SA-333/SA333M Standard: Gr1, Gr3, Gr4, Gr6, Gr7,Gr8, Gr9, Gr10, Gr11
Standard: Gr1, Gr3, Gr6, Gr7,Gr8, Gr9, Gr11
ASTM A335/ASME SA335 Standard: P1, P2, P5,P5b, P5c, P9, P11, P12,P21,P22,P23, P24, P91, P92
ASTM A519 Standard: 4118, 4130,4135,4137,4140
ASTM A691 Standard GRADE 91, CM65, CM70, CM75, CMSH70, CMS75, CMSH80,
ASTM A691 Standard GRADE 1/2 Cr, GRADE 1CR, GRADE 1 1/4 CR, 2 1/4 Cr, 3CR, 5CR, 9 CR
DIN17175 Standard: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63,12Cr1MoV
EN10216-2 Standard: P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10, 16Mo3, 10CrMo5-5, X10CrMoVNb9-1
JIS G3458 Standard: STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26
JIS G3441 Standard:SCR420 TK,SCM415 TK, SCM418 TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK.
NF A49-213/215 Standard: TU15D3, TU13CD4-04, TU10CD910, TUZ10CD505
Alloy C276 BS3059 Standard: S1-622-440, S2-622-440, S1-622-490, S2-622-490, S1-629-470, S2-629-470, S2-629-590
BS3604Standard: HFS625 CFS625
BS3606Standard: CFS625 |
| Alloy steel pipe Size: | O.D:6-760mm W.T:1-80mm Fixed Length: 5.8m, 6m, 11.8m, 12m, or random length as required. |
We supply our boiler pipes on time to our international customers in the following industries:
- Utilities
- Municipal works and IPPs
- Co-generators
- Pulp and paper industry
- Sugar industry
- Industrial enterprises
- Waste heat producers
- Petrochemical plants
1. Material ASTM A333 GR1, GR3, GR4, GR6, GR7, GR8. GR9, GR10, GR11, Hot Rolled Seamless steel pipes
2. OD: 6MM-400MM
3. WT: 0.5MM-60MM
4. Length: 5 meters- 12000 meters
5. Heat treatment: Quenched and tempered ; Double Normalized and Tempered; Normalized
6. Cut to order and cut to size, any size is available
Chemical Composition
Low temperature seamless steel pipe chemical compositions
| Standard | Grade |
C ≤ |
Mn ≤ |
Si ≤ |
P ≤ |
S ≤ |
Y.S ≤MPa |
T.S. ≤MPa |
EL % |
| ASTM A333 | GR.1 | 0.30 | 0.40-0.64 | --- | 0.025 | 0.025 | 205 | 380 | 20-25 |
| ASTM A333 | GR.3 | 0.19 | 0.31-0.64 | 0.18-0.37 | 0.025 | 0.025 | 240 | 450 | 14-20 |
| ASTM A333 | GR.4 | 0.12 | 0.32-0.64 | 0.08-0.37 | 0.025 | 0.025 | 240 | 415 | 12-17 |
| ASTM A333 | GR.6 | 0.30 | 0.29-1.06 | 0.10 | 0.025 | 0.025 | 240 | 415 | 14-22 |
| ASTM A333 | GR.7 | 0.19 | 0.90 | 0.13-0.37 | 0.025 | 0.025 | 240 | 450 | 28 |
