Alloy 20 Welding Super Duplex Stainless Steel Pipe , Nickel Seamless Alloy Steel Pipe
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ ISO /
Model Number:
1/4' -48''
Trading Properties
Minimum Order Quantity:
1 Pcs
Price:
1200 usd/ton
Supply Ability:
10000 Ton/Moth
Product Summary
Production Name : ALLOY C276 NICKEL PIPE ALLOY 20 SEAMLESS NICKEL PIPE Alloy 20 nickel pipe is made from a nickel-iron-chromium alloy with additions of copper and molybdenum. Contains niobium for stabilization against sensitization resulting in intergranular corrosion. Has excellent resistance to ...
Product Details
Highlight:
duplex stainless steel tube
,duplex steel pipes
Standard:
Alloy 20 Nickel Pipe
Grade:
Alloy 20
Size:
14''
Place Of Origin:
China
Material:
2205/2507
Production Year:
2018
Product Description
Production Name : ALLOY C276 NICKEL PIPE
ALLOY 20 SEAMLESS NICKEL PIPE
Alloy 20 nickel pipe is made from a nickel-iron-chromium alloy with additions of copper and molybdenum. Contains niobium for stabilization against sensitization resulting in intergranular corrosion. Has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals,containing chlorides and sulfuric, phosphoric, nitric acids.
Typical applications include tanks, piping, heat exchangers, pumps, valves.
Stock Size Range:
OD:
1/2" through 4"
Wall:
Schedule 40 through Schedule 80
Specifications: ASTM B729, ASME SB 729
| Typical Chemical Composition % | |
| Nickel | 32.0-38.0 |
| Chromium | 19.0-21.0 |
| Iron | Remainder |
| Molybdenum | 2.0-3.0 |
| Sulfur | .035 max |
| Carbon | 0.07 max |
| Manganese | 2.0 max |
| Silicon | 1.00 max |
| Phosphorous | .045 max |
| Copper | 3.0-4.0 |
| Nb+Ta | 8 X C-1.0 |
| Typical Mechanical Properties | ||
| Annealed | Mpa | |
| Yield Strength | 35 ksi | 240 |
| Tensile Strength | 80 ksi | 550 |
| Elongation % | 30 | |

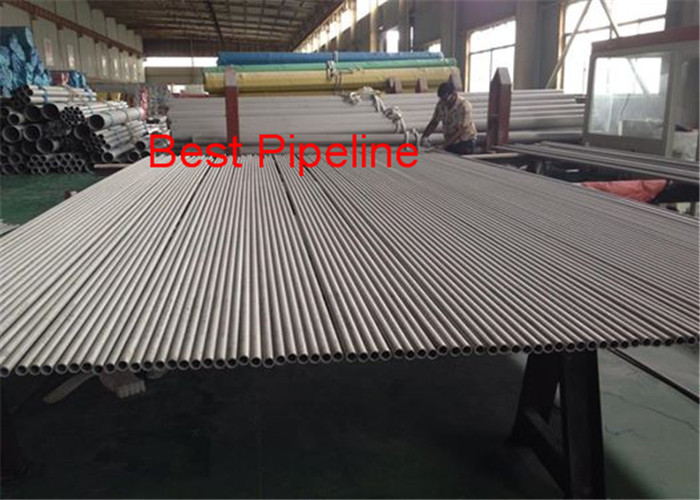

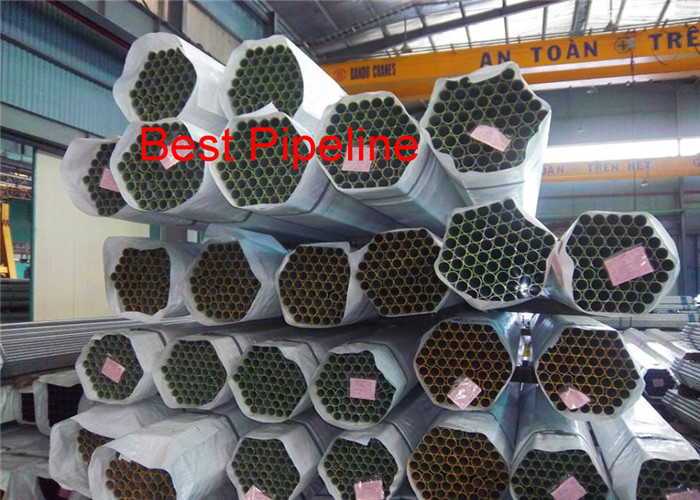

ALLOY 20 SEAMLESS NICKEL PIPE Pictures
