ASTM A312 A213 SS Stainless Steel Tubing DIN 1.4571 SCH20 SCH30
| Place of Origin | China /Japan |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO /TUV/PED |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1Pcs |
| Price | 500 usd/Ton |
| Packaging Details | standard export packing or as required |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C/ TT |
| Supply Ability | 1000000 Ton/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| ERW 316Ti Pipes & Tubes | 1/2″ NB – 24″ NB | EFW 316Ti Pipes & Tubes | 6″ NB – 100″ NB |
|---|---|---|---|
| 316Ti Pipes & Tubes | 1/2″ NB – 16″ NB | Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes | Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I To V |
| High Light | stainless steel seamless pipe,stainless steel tubing |
||
Product Description
Name : ASTM A312 / A213 SS Stainless Steel 316Ti Pipes and Tubes Specification : SS DIN 1.4571
Stainless Steel UNS S31635 Round Pipe Exporter In South America, SS DIN 1.4571 Rectangular Tubes In Europe, SS 316ti Square Pipe Manufacturer & Suppliers.
ASTM A312 SS 316tTI Seamless Pipes & Tubes, Stainless Steel 316ti Welded Pipes In Africa, Stainless Steel 316TI EFW Tubes Manufacturer & Exporter In China
Also same as 316, but can be used at elevated temperatures. Buy Grade 316Ti Stainless Steel Pipes at reasonable cost from us. This Stainless Steel 316Ti Tubing contains a small amount—typically only 0.5%—of titanium. While it still possesses many of the characteristics of other 316 grades, the addition of titanium allows Stainless Steel 316Ti EFW Pipesto be protected from precipitation at elevated temperatures, even with prolonged exposure. Meanwhile, 316L has virtually the same amount of Titanium for high temperature stability as Stainless Steel 316Ti ERW Pipes but it also includes Molybdenum.
Stainlesss Steel 316Ti Pipes & Tubes Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 316TI | 1.4571 | S31635 | SUS 316Ti | Z6CNDT17‐12 | 320S31 | 08Ch17N13M2T | X6CrNiMoTi17-12-2 |
TP 316Ti Stainless Steel Pipes & Tubes Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316TI | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
| max | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.1 |
Physical properties :
| Physical Properties (Room Temperature) | ||
| Specific Heat (0-100°C) | 500 | J.kg-1.°K-1 |
| Thermal Conductivity | 14.6 | W.m -1.°K-1 |
| Thermal Expansion | 16.5 | mm/m/°C |
| Modulus Elasticity | 193 | GPa |
| Electrical Resistivity | 7.4 | μohm/cm |
| Density | 7.99 | g/cm3 |
ASTM A312 / A213 SS TP 316Ti Pipes & Tubing Mechanical properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316TI | 515 | 205 | 35% | 75 | 205 |
Types Of Stainless Steel 316Ti Pipes Tubes
| Stainless Steel 316Ti Pipes | Stainless Steel 316Ti Tubes |
| Stainless Steel 316Ti pipes | Stainless Steel 316Ti tubes |
| AISI 316Ti seamless pipes | ASTM A269 TP 316Ti stainless steel seamless tubes |
| UNS S31635 Pipes in Iraq | AISI 316Ti seamless Tubing in Iran |
| AISI 316Ti welded pipes in Egypt | ASTM A213 TP 316Ti stainless steel seamless tubes |
| SUS 316Ti Pipes Suppliers in Jordan | AISI 316Ti welded tubes |
| DIN 1.4571 pipes in Peru | AISI 316Ti ERW Tubing in Dealer Singapore |
| SS 316Ti pipes in Chile | SS 316Ti tubes Exporter in Bahrain |
| AISI 316Ti ERW pipes in Malaysia | ASTM A249 TP 316Ti stainless steel welded tubes |

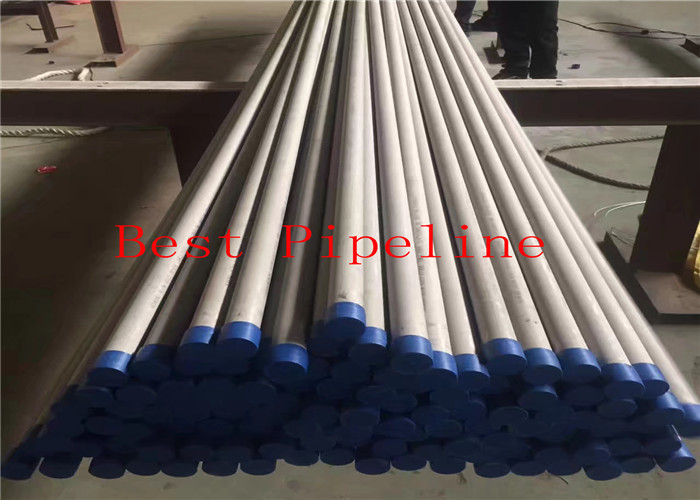

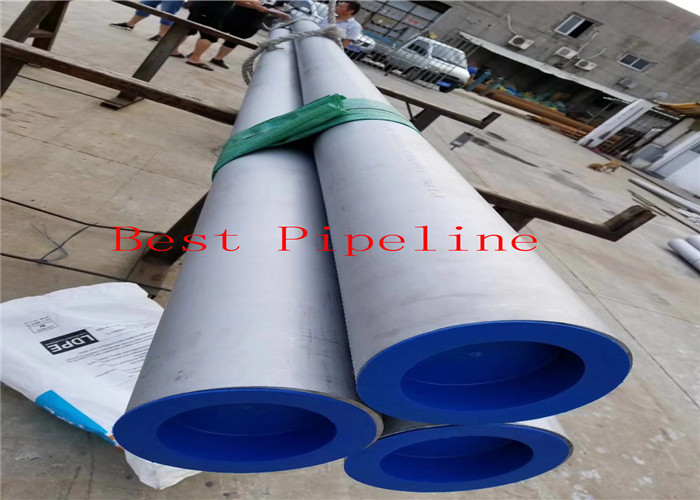

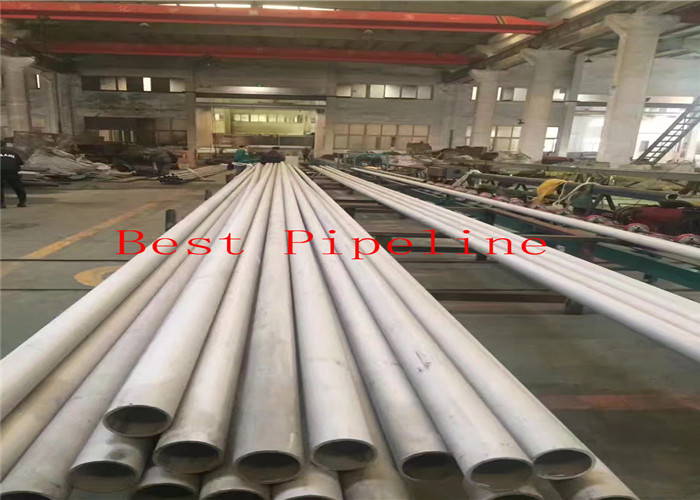

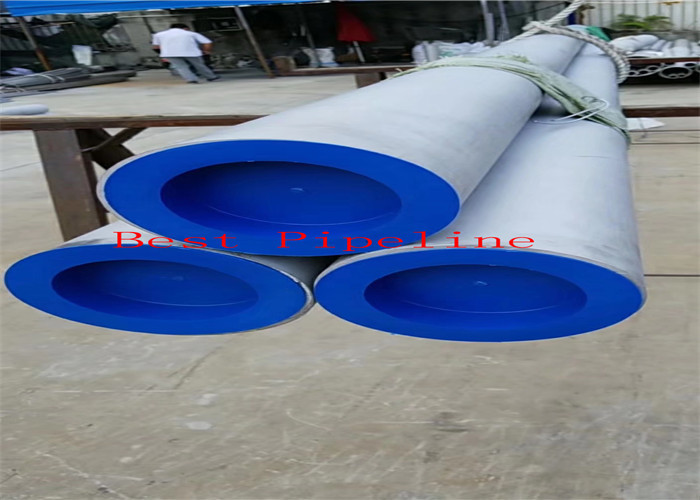

Stainless Steel 316Ti Pipes Tubes Pictures :
