DIN 11852 316L Carbon Steel Butt Weld Pipe Fittings ANSI B16.5 Flanges
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ISO /TUV
Model Number:
1/2''-48''
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
1 usd/pcs
Payment Terms:
L/C, T/T, D/P, D/A, Western Union,
Supply Ability:
100000 Ton/ year
Product Summary
Product Name : Koncentricne redukcije / Reducers concentric Made By butt welding fittings DIN 11852 316L 1. All dimensions are in inches 2. Dimensional tolerances conform to ASME B16.9 3. Fitting wall thicknesses conform with standard schedule 10S and 40S ASME B36.19M wall pipe. 4. Butt welding fi ...
Product Details
Highlight:
butt weld connection
,butt weld steel pipe fittings
Name:
Reducers Concentric
Standard:
ASME A16.9 / DIN2567
Material:
316L
Surface:
Black Painting, Rust-proof Oil,
Tolerances:
Butt Welding Fittings
Usage:
Oil Gas Water Industrial
Production Year:
2018
Product Description
Product Name : Koncentricne redukcije / Reducers concentric Made By butt welding fittings DIN 11852 316L
1. All dimensions are in inches
2. Dimensional tolerances conform to ASME B16.9
3. Fitting wall thicknesses conform with standard schedule 10S and 40S ASME B36.19M wall pipe.
4. Butt welding fi ttings are permanently marked by electro-chemical etching in accordance with ASME B16.9
5. Estimated fi tting weights are based on a density of .163 lbs/cubic inch
Products : Carbon Steel Weld Fittings & Flanges
Weld Fittings
- Sizes 1/2″ through 48″
- STD, SCH 40, SCH 80, SCH 120, SCH 160, XH, XXH
- 90′s, 45′s, Tees, Reducing 90′s, Concentric Reducers, Eccentric Reducers, Stub Ends,Crosses, Laterals, Return Bends
- A/SA 234 WPB
Flanges
- Sizes 1/2″ through 48″
- 150# through 2500#
- Reducing Flanges and Orifice Flanges
- Galvanized Flanges
- A/SA105
- ANSI B16.5
Dimensions Butt Weld Reducers Con & Ecc ASME B16.9
| NPS | O.D. D |
O.D. D1 |
Len H |
| 3/4*1/2 | 26.7 | 21.3 | 38 |
| 1*1/2 | 33.4 | 21.3 | 51 |
| 1*3/4 | 33.4 | 26.7 | 51 |
| 1¼*1/2 | 42.2 | 21.3 | 51 |
| 1¼*3/4 | 42.2 | 26.7 | 51 |
| 1¼*1 | 42.2 | 33.4 | 51 |
| 1½*1/2 | 48.3 | 21.3 | 64 |
| 1½*3/4 | 48.3 | 26.7 | 64 |
| 1½*1 | 48.3 | 33.4 | 64 |
| 1½*1¼ | 48.3 | 42.2 | 64 |
| 2*3/4 | 60.3 | 26.7 | 76 |
| 2*1 | 60.3 | 33.4 | 76 |
| 2*1¼ | 60.3 | 42.2 | 76 |
| 2*1½ | 60.3 | 48.3 | 76 |

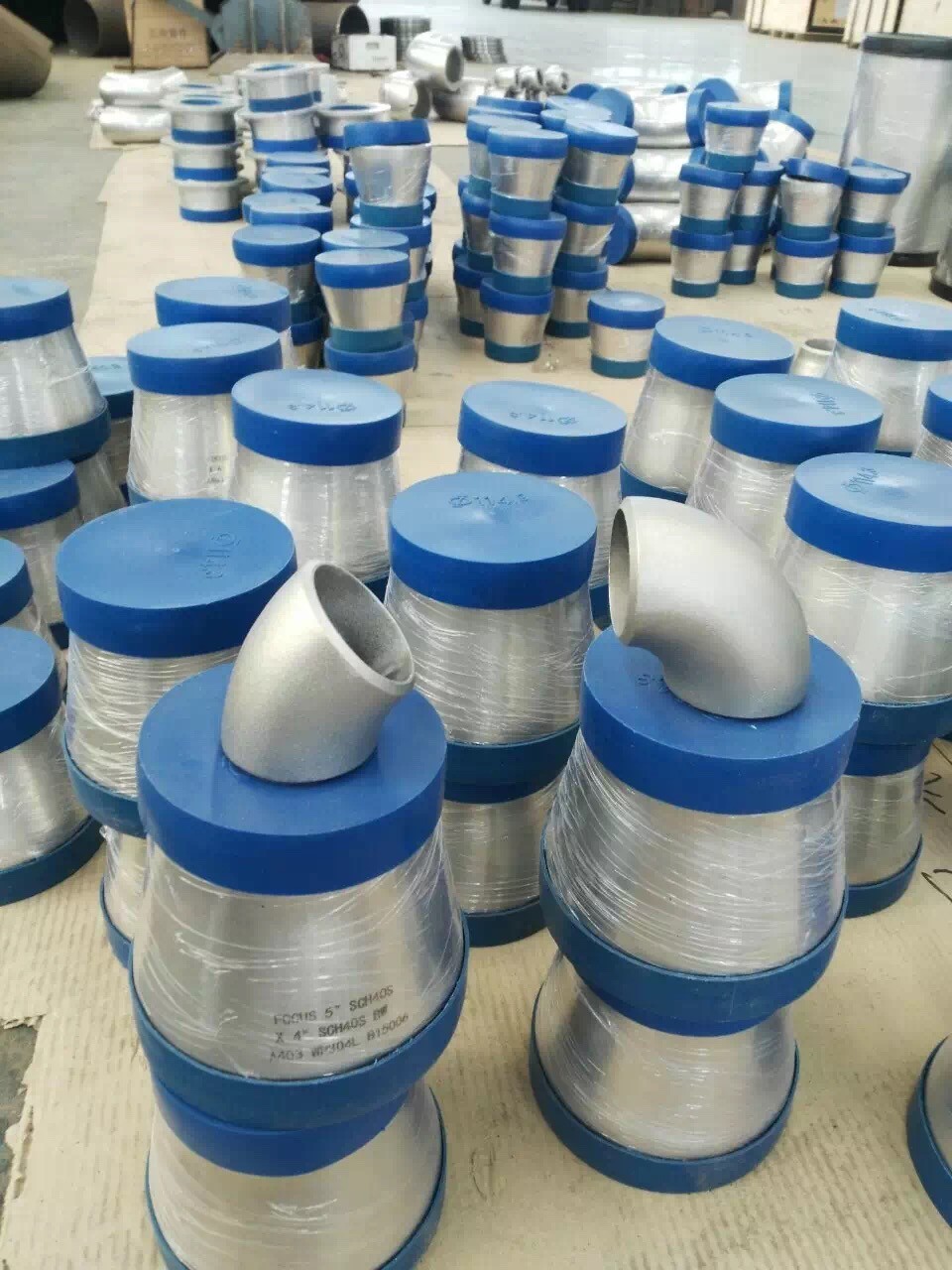

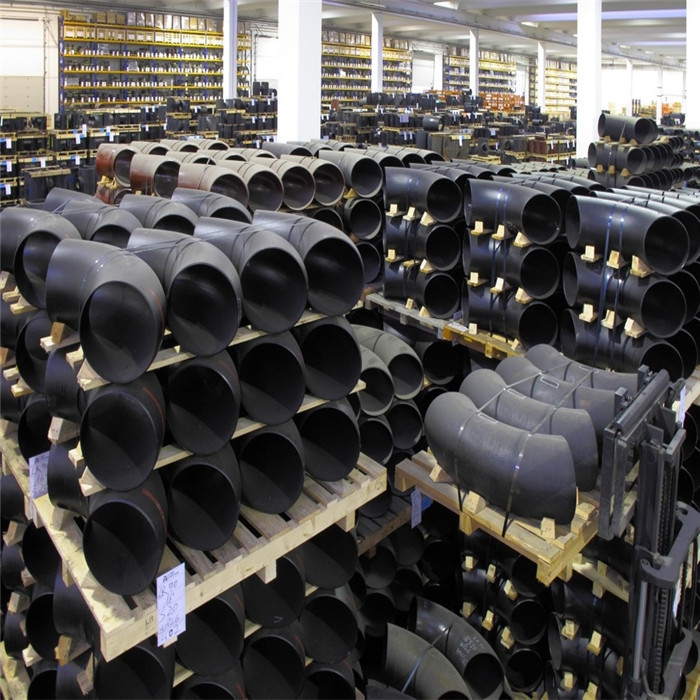

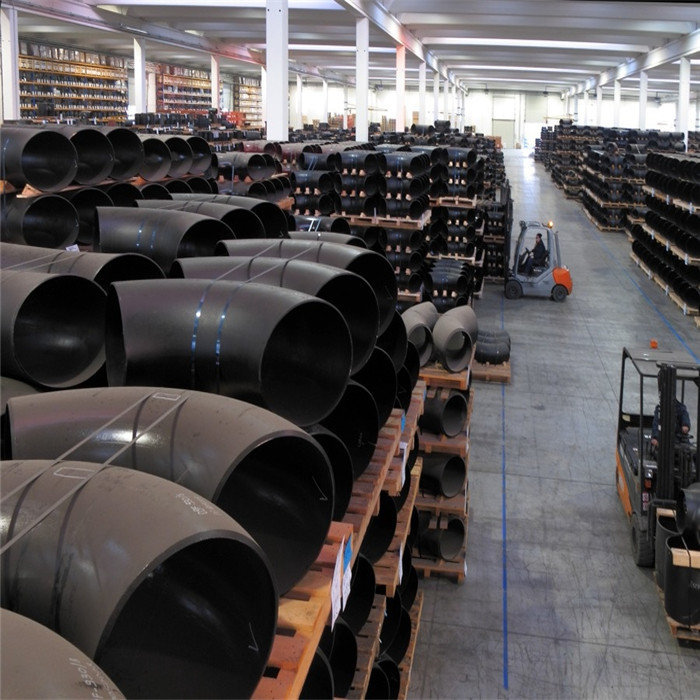

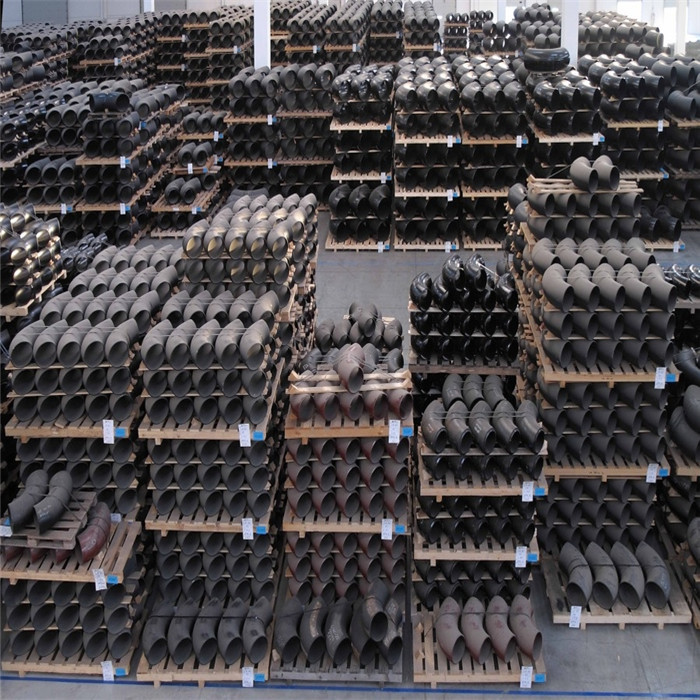

Product Show
