ASME B16.9 Butt Weld Fittings Eccentric Seamless 304 Butt Weld Pipe Reducer
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ISO /TUV
Model Number:
1/2''-48''
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
1 usd/pcs
Payment Terms:
L/C, T/T, D/P, D/A, Western Union,
Supply Ability:
100000 Ton/ year
Product Summary
Product Name :Eccentric reducer seamless with Butt welding fittings Standard : ASME B16.9 Material : 304(L) Nominal Pipe Size Length Weight in Pounds Nominal Pipe Size Length Weight in Pounds 1 1/4 x 1/2 2 0.42 1 1/4 x 1/2 2 0.53 1 x 3/4 2 0.36 1 x 3/4 2 0.43 1 x 1/2 2 0.36 1 x 1/2 2 0.42 3/4 x 1 1...
Product Details
Highlight:
butt weld tube fittings
,butt weld connection
Name:
Eccentric Reducer
Technics:
Butt Welding Fittings
Standard:
Oil Gas Water Industrial
Material:
304(L) .316L
Type:
Seamless
Usage:
Oil Gas Water Industrial
Production Year:
2018
Product Description
Product Name :Eccentric reducer seamless with Butt welding fittings Standard : ASME B16.9 Material : 304(L)
| Nominal Pipe Size | Length | Weight in Pounds | Nominal Pipe Size | Length | Weight in Pounds | |
| 1 1/4 x 1/2 | 2 | 0.42 | 1 1/4 x 1/2 | 2 | 0.53 | |
| 1 x 3/4 | 2 | 0.36 | 1 x 3/4 | 2 | 0.43 | |
| 1 x 1/2 | 2 | 0.36 | 1 x 1/2 | 2 | 0.42 | |
| 3/4 x 1 1/2 | 1 | 0.21 | 3/4 x 1 1/2 | 1.5 | 0.25 | |
| 1 1/2 x 1 1/4 | 2.5 | 0.65 | 1 1/2 x 1 1/4 | 2.5 | 0.78 | |
| 1 1/2 x 1 | 2.5 | 0.57 | 1 1/2 x 1 | 2.5 | 0.72 | |
| 1 1/2 x 3/4 | 2.5 | 0.56 | 1 1/2 x 3/4 | 2.5 | 0.65 | |
| 1 1/2 x 1/2 | 2.5 | 0.56 | 1 1/4 x 1/2 | 2.5 | 0.65 | |
| 1 1/4 x 1 | 2 | 0.48 | 1 1/4 x 1 | 2 | 0.57 | |
| 1 1/4 x 3/4 | 2 | 0.42 | 1 1/4 x 3/4 | 2 | 0.53 | |
| 1 1/4 x 1/2 | 2 | 0.42 | 2 1/2 x 2 | 3.5 | 2.1 | |
| 2 1/2 x 2 | 3.5 | 1.6 | 2 1/2 x 1 1/2 | 3.5 | 1.9 | |
| 2 1/2 x 1 1/2 | 3.5 | 1.5 | 2 1/2 x 1 1/4 | 3.5 | 1.7 | |
| 2 1/2 x 1 1/4 | 3.5 | 1.4 | 2 1/2 x 1 | 3.5 | 1.5 | |
| 2 1/2 x 1 | 3.5 | 1.3 | 2 1/2 x 12 x 1 1/2 | 3 | 1.2 | |
| 2 x 1 1/2 | 3 | 0.94 | 2 x 1 1/4 | 3 | 1.1 | |
| 2 x 1 1/4 | 3 | 0.88 | 2 x 1 | 3 | 1 | |
| 2 x 1 | 3 | 0.81 | 2 x 3/4 | 3 | 0.94 | |
| 2 x 3/4 | 3 | 0.74 | 3 1/2 x 3 | 4 | 4.1 | |
| 3 1/2 x 3 | 4 | 2.8 | 3 1/2 x 2 1/2 | 4 | 3.7 | |
| 3 1/2 x 2 1/2 | 4 | 2.7 | 3 1/2 x 2 | 4 | 3.5 | |
| 3 1/2 x 2 | 4 | 2.6 | 3 1/2 x 1 1/2 | 4 | 3.3 | |
| 3 1/2 x 1 1/2 | 4 | 2.6 | 3 1/2 x 1 1/2 | 4 | 3.3 | |
| 3 1/2 x 1 1/4 | 4 | 2.5 | 3 1/2 x 1 1/4 | 4 | 3.3 | |
| 3 x 2 1/2 | 3.5 | 2.2 | 3 x 2 1/2 | 3.5 | 2.8 | |
| 3 x 2 | 3.5 | 2 | 3 x 2 | 3.5 | 2.6 | |
| 3 x 1 1/2 | 3.5 | 1.9 | 3 x 1 1/2 | 3.5 | 2.4 | |
| 3 x 1 1/4 | 3.5 | 1.8 | 3 x 1 1/4 | 3.5 | 2.3 | |
| 3 x 1 | 3.5 | 1.7 | 3 x 1 | 3.5 | 2.2 | |
| 4 x 3 1/2 | 4 | 3.5 | 4 x 3 1/2 | 4 | 4.9 | |
| 4 x 3 | 4 | 3.3 | 4 x 3 | 4 | 4.7 | |
| 4 x 2 1/2 | 4 | 3.2 | 4 x 2 1/2 | 4 | 4.6 | |
| 4 x 2 | 4 | 3.1 | 4 x 2 | 4 | 4.3 | |
| 4 x 1 1/2 | 4 | 3 | 4 x 1 1/2 | 4 | 4.2 | |
| 4 x 1 1/4 | 4 | 3 | 4 x 1 1/4 | 4 | 4.1 | |
| 4 x 1 | 4 | 2.8 | 4 x 1 | 4 | 4 | |
| 5 x 4 | 5 | 5.5 | 5 x 4 | 5 | 7.5 | |
| 5 x 3 1/2 | 5 | 5.3 | 5 x 3 1/2 | 5 | 6.9 | |
| 5 x 3 | 5 | 5.1 | 5 x 3 | 5 | 6.3 | |
| 5 x 2 1/2 | 5 | 4.8 | 5 x 2 1/2 | 5 | 6.1 | |
| 5 x 2 | 5 | 4.7 | 5 x 2 | 5 | 6 | |
| 6 x 5 | 5.5 | 7.6 | 6 x 5 | 5.5 | 11.5 | |
| 6 x 4 | 5.5 | 7.4 | 6 x 4 | 5.5 | 10.7 | |
| 6 x 3 1/2 | 5.5 | 7.1 | 6 x 3 1/2 | 5.5 | 10 | |
| 6 x 3 | 5.5 | 6.9 | 6 x 3 | 5.5 | 9.7 | |
| 6 x 2 1/2 | 5.5 | 6.6 | 6 x 2 1/2 | 5.5 | 9.1 | |
| 6 x 2 | 5.5 | 6.5 | 6 x 2 | 5.5 | 8.6 | |
| 8 x 6 | 6 | 12.3 | 8 x 6 | 6 | 18.8 | |
| 8 x 5 | 6 | 11.5 | 8 x 5 | 6 | 17.6 | |
| 8 x 4 | 6 | 10.8 | 8 x 4 | 6 | 17 | |
| 8 x 3 1/2 | 6 | 10.6 | 8 x 3 1/2 | 6 | 15.9 | |
| 8 x 3 | 6 | 9.8 | 8 x 3 | 6 | 15 | |
| 10 x 8 | 7 | 22.1 | 10 x 8 | 8 | 29.4 | |
| 10 x 6 | 7 | 20.7 | 10 x 6 | 7 | 28.3 | |
| 10 x 5 | 7 | 19.5 | 10 x 5 | 7 | 26.9 | |
| 10 x 4 | 7 | 18.4 | 10 x 4 | 7 | 24.2 | |
| 12 x 10 | 8 | 32.4 | 12 x 10 | 8 | 41.5 | |
| 12 x 8 | 8 | 30.5 | 12 x 8 | 8 | 38.6 | |
| 12 x 6 | 8 | 29.5 | 12 x 6 | 8 | 37.4 | |
| 12 x 5 | 8 | 27.8 | 12 x 5 | 8 | 36.3 | |
| 12 x 4 | 8 | 26.2 | 12 x 4 | 8 | 34.7 | |
| 14 x 12 | 13 | 63.1 | 14 x 12 | 13 | 81 | |
| 14 x 10 | 13 | 61.4 | 14 x 10 | 13 | 76.7 | |
| 14 x 8 | 13 | 60 | 14 x 8 | 13 | 74.6 | |
| 14 x 6 | 13 | 59.2 | 14 x 6 | 13 | 72.3 | |
| 16 x 14 | 14 | 75.4 | 16 x 14 | 14 | 98 | |
| 16 x 12 | 14 | 72.7 | 16 x 12 | 14 | 95.8 | |
| 16 x 10 | 14 | 71.1 | 16 x 10 | 14 | 93.3 | |
| 16 x 8 | 14 | 69.4 | 16 x 8 | 14 | 91.1 | |
| 16 x 6 | 14 | 67.4 | 16 x 6 | 14 | 89.8 | |
| 18 x 16 | 15 | 87.3 | 18 x 16 | 15 | 118 | |
| 18 x 14 | 15 | 86 | 18 x 14 | 15 | 117 | |
| 18 x 12 | 15 | 84.8 | 18 x 12 | 15 | 115 | |
| 18 x 10 | 15 | 83.7 | 18 x 10 | 15 | 113 | |
| 20 x 18 | 20 | 123 | 20 x 18 | 20 | 162 | |
| 20 x 16 | 20 | 121 | 20 x 16 | 20 | 159 | |
| 20 x 14 | 20 | 119 | 20 x 14 | 20 | 157 | |
| 20 x 12 | 20 | 118 | 20 x 12 | 20 | 155 | |
| 20 x 10 | 20 | 117 | 20 x 10 | 20 | 152 | |
| 24 x 20 | 20 | 156 | 24 x 20 | 20 | 201 | |
| 24 x 18 | 20 | 153 | 24 x 18 | 20 | 197 | |
| 24 x 16 | 20 | 150 | 24 x 16 | 20 | 194 | |
| 24 x 14 | 20 | 147 | 30 x 24 | 24 | 315 | |
| 24 x 12 | 20 | 144 | 30 x 20 | 24 | 315 | |
| 24 x 10 | 20 | 141 | 30 x 18 | 24 | 315 | |
| 30 x 24 | 24 | 315 | 36 x 30 | 24 | 379 | |
| 30 x 20 | 24 | 315 | 36 x 24 | 24 | 379 | |
| 30 x 18 | 24 | 315 | 36 x 20 | 24 | 379 | |
| 36 x 30 | 24 | 379 | 42 x 36 | 24 | 443 | |
| 36 x 24 | 24 | 379 | 42 x 30 | 24 | 443 | |
| 36 x 20 | 24 | 379 | 42 x 24 | 24 | 443 | |
| 42 x 36 | 24 | 443 | 48 x 42 | 28 | 525 | |
| 42 x 30 | 24 | 443 | 48 x 36 | 28 | 525 | |
| 42 x 24 | 24 | 443 | 48 x 30 | 28 | 525 | |
| 48 x 42 | 28 | 525 | ||||
| 48 x 36 | 28 | 525 | ||||
| 48 x 30 | 28 | 525 |

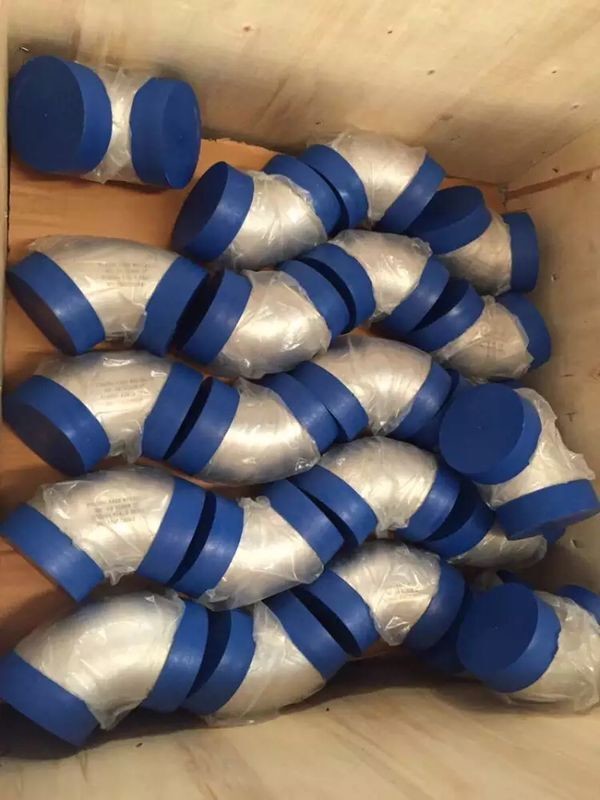

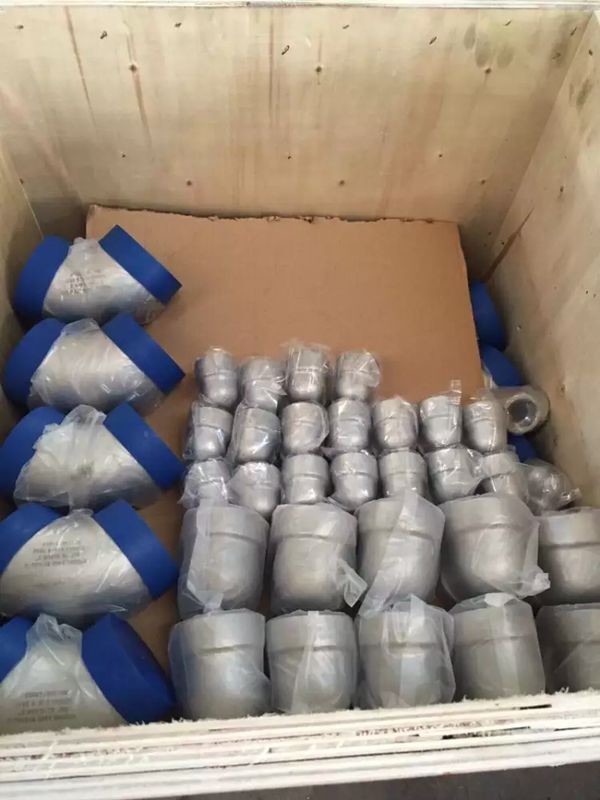

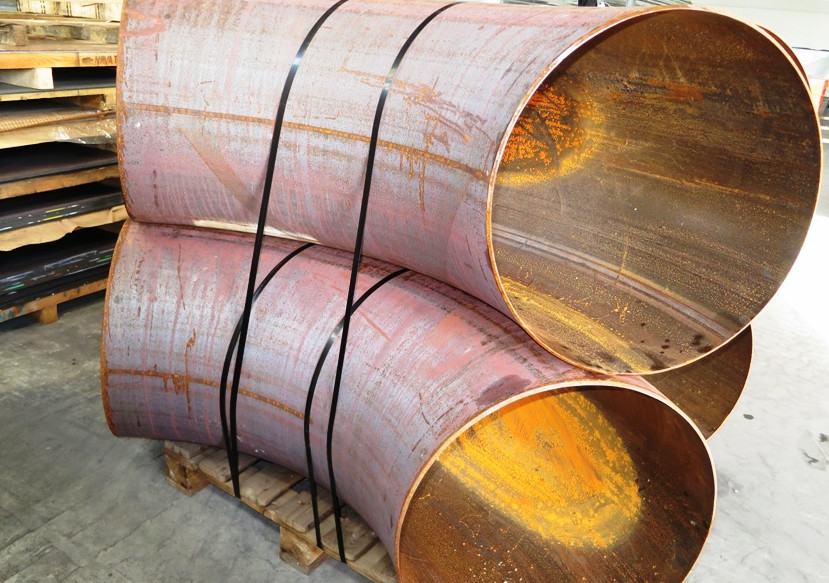

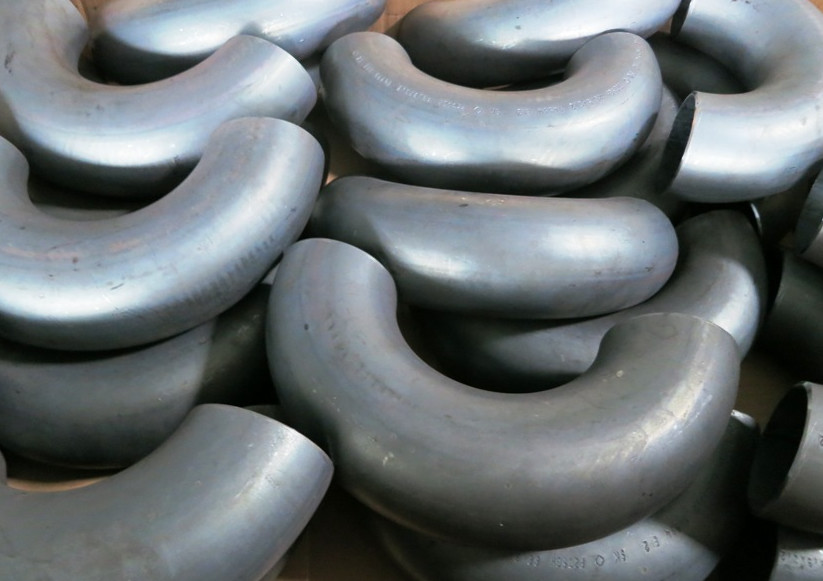

Product Show
