Product Name : Incoloy 020 N08020 90 Elbow, 45 Elbow (Sch40, Sch80, Sch120, Sch160) Wrought Carbon Steel Butt Weld Pipe Fittings

Butt Weld Fittings

Best Pipe supplies a wide selection of butt weld fittings including carbon, stainless, chrome moly, high-yield, and aluminum.

What are the benefits of Butt Welded Fittings?

The benefit to using a butt weld fitting is that it doesn’t leak. Because the butt weld is welded directly to pipe and not simply bolted together, it is not only much stronger than a typical fitting, but it allows for better flow through the system with less resistance to friction. Welded fittings also allows for better layout designs through key features such as being more compact and greater in strength.

Industrial Applications

The forged steel fittings and high pressure fittings are used to conduct pressure tests on assemblies in the oil and gas industries.

Materials & Specifications

• Standard Grades: Carbon, Stainless, Chrome Moly, High Yield, Low Temperature, Aluminum
• Types: Elbows, Tees, Reducers, Caps, Stub Ends, Crosses, Laterals, Olets, Return Bends
• Sizes: Standard 1/2" to 48" (special order larger O.D. fittings)
• Wall Sizes: Schedule 20 thru XXH, and Special Wall Sizes
• Specialty Items: 3D & 5D Bends, Galvanizing, 100% X-ray Testing

2:Butt Welding Fittings in the following forms
 Elbows 45o and 90o – long radius is standard; short radius is also available
 Return bends 180o – long radius is standard; short radius is also available
 Reducers – concentric and eccentric
 Tees – equal and reducing
 Caps
 Stub ends – Type B, to MSS SP-43
Butt welding fittings can be supplied in either seamless or welded construction and are covered by
specification ASTM A403M (or ASTM A815M for Duplex grades) and ASME B16.9.

3:Welded Butt Welding Fittings Weights – ASTM A403M & ASME B16.9

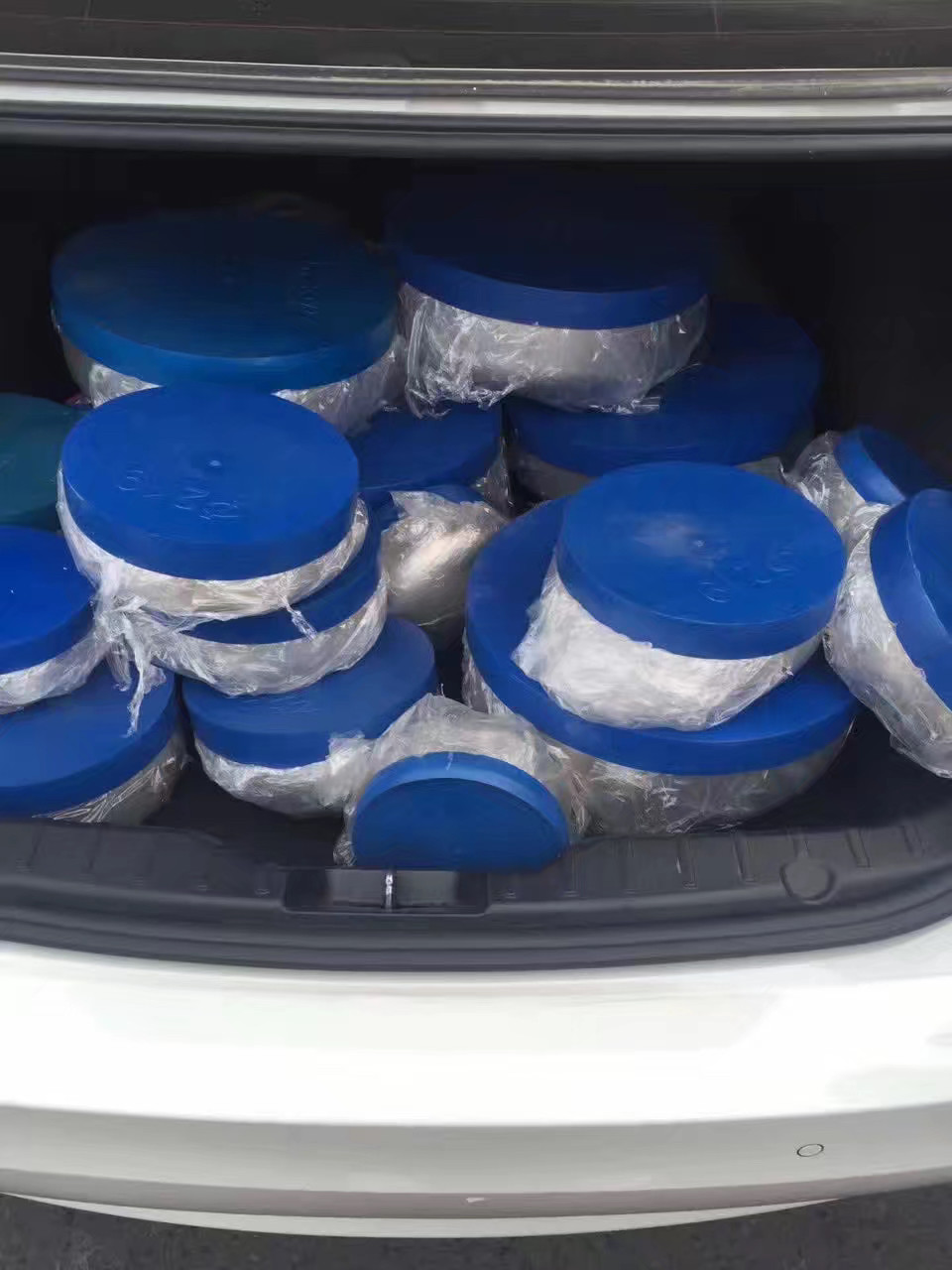

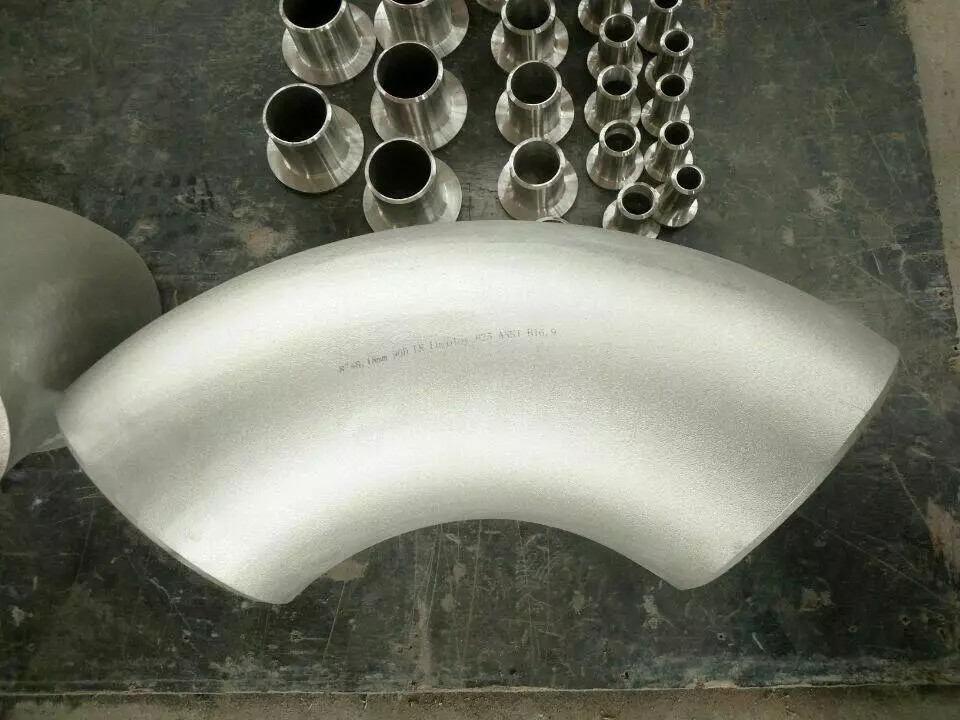

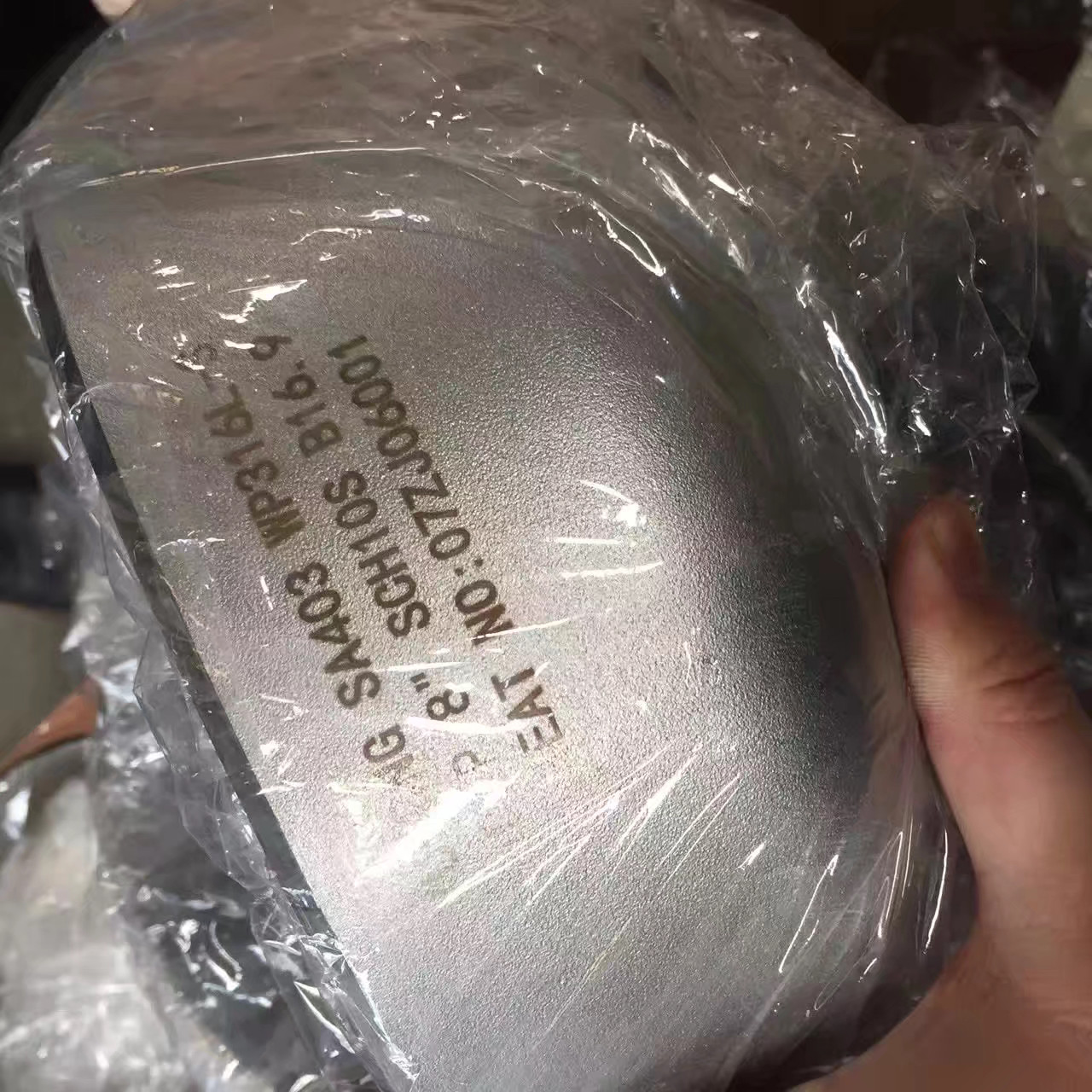

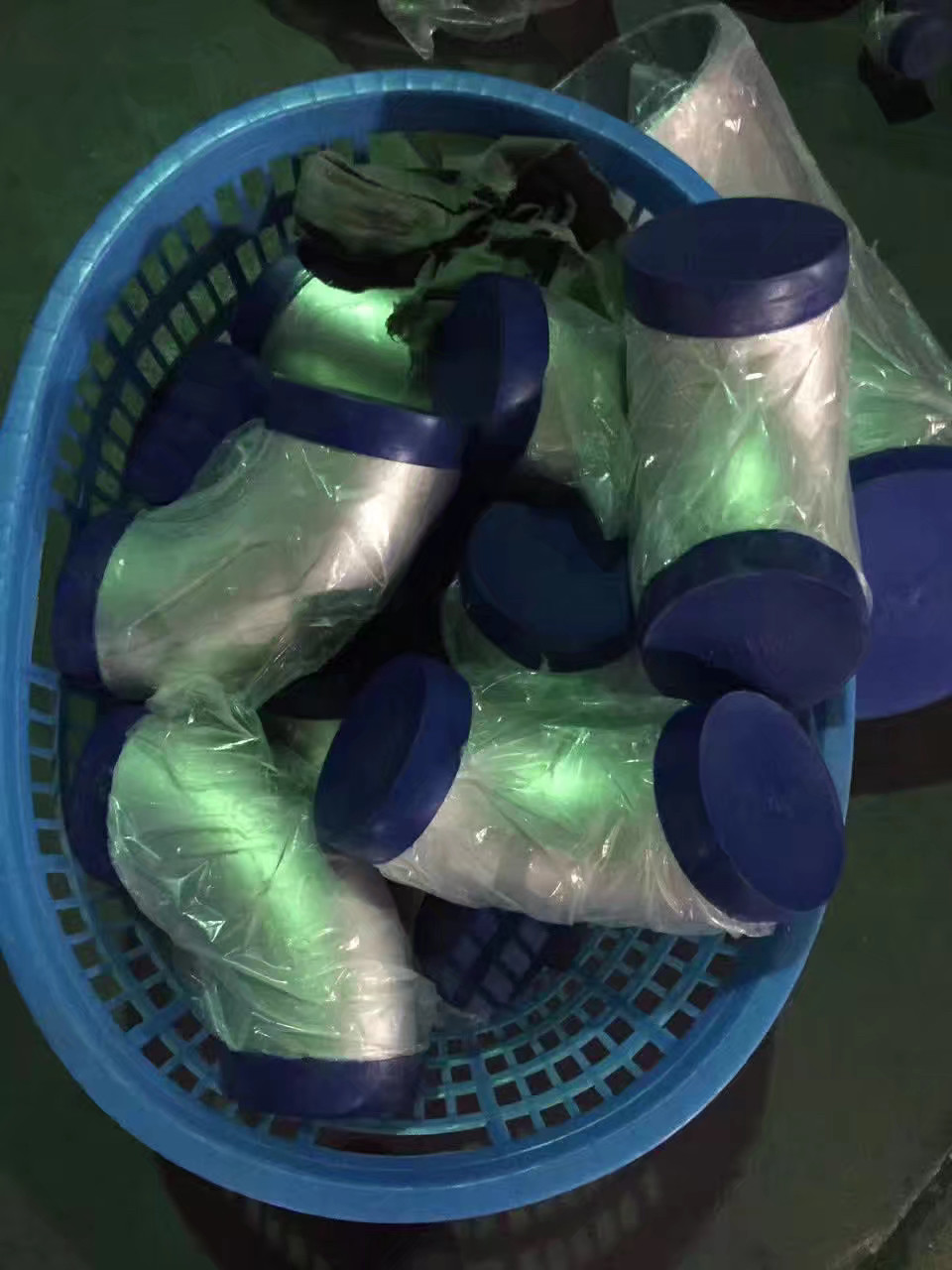

4:Product Show
