X46 PSL2 API 5L UOE Steel Pipe , Welded Polyethylene Coating Line Pipe
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API /CE / ISO /TUV |
| Model Number | 1/2'' -48'' |
| Minimum Order Quantity | 1 TONS |
| Price | 450 USD/TON |
| Packaging Details | 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description. |
| Delivery Time | Shipped in 25 days after payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | API/ASTM | Grade | ASTM A252 Gr1/Gr2/Gr3 |
|---|---|---|---|
| Technique | SAW/UOE | Finish | Bared |
| Keyword | Welded Steel Pipe/ Tubes | Inspection | With Hydraulic Testing |
| Surface | Barded /Painting/3PE | ||
| High Light | precision steel pipe,erw carbon steel pipe |
||
Product Description
The LSAW production line has introduced with supreme quality-guarantee technique- JCOE, can produce logitudinal submerged-arc welded steel pipe from out diameter 355.6mm to 1828.8mm(14" - 72"), wall thickness from 8mm to 60mm under various standards like API 5L, API 2B, EN10210, EN10219, EN10208, ASTM A53, ASTM A252, ASTM A500, GB/T9711, GB50205 ETC. The roller welding line can produce straight seam rolled pipe from diameter from 355.6mm to 3800mm, wall thickness from 8mm to 120mm
ERW:
1. SIze: OD: 1/2" to 24" W.T:2MM TO 20MM
Length:SRL,DRL,5.8M,6M,12M
2. Standard&Grade: API 5L GR.B, X 42, X 46, X 52, X 60
ASTM A 53 GR.A/GR.B ,ASTM A252 GR.1 / GR.2 / GR.3ASTM A500 / ASTM A252 / ASTM A36, Q195, Q235, Q345, SS400, SS490
EN 10210 / EN10219 ,S275, S355
BS1387, GOST10704 / GOST10705,
3. Certification: API 5L,CE,ISO9001, SGS
LSAW EFW DSAW:
1. SIze: OD: 18" to 56" W.T:9.5MM TO 60MM
Length:,DRL,5.8M,6M,12M-18M
2. Standard&Grade:
API 5L GR.B, X 42, X 46, X 52, X 60
ASTM A 500 ,ASTM A252 /ASTM A671
ASTM A672/A45/A50/A55/B60/B65/C65/E60/H75.etc
EN 10210 / EN10219 ,S275, S355,ST52
GB/T3091
3. Certification: API 5L,CE,ISO9001, SGS
.
LSAW Steel Pipe
Longitudinal Submerged-Arc Welded Steel Pipe
| Product Name | LSAW Steel Pipe |
| Application | Used for low pressure liquid delivery, such as water, gas, and oil. |
| Process | LSAW - UO(UOE),RB(RBE),JCO(JCOE) , DSAW -Double Submerged arc welded |
| Out diameter | 355.6mm– 1626mm (14“ - 72”) |
| Wall thickness | 8 -50mm |
| Length | up to 12m |
| Standard | API 5L, API 5CT, DIN, EN, GB, ISO, JIS, BA, ANSI ETC. |
| Steel Grade | API 5L: GR B, X42,X46, X56, X60,X65,X70 ASTM A53: GR A, GR B, GR C EN: S275, S275JR, S355JRH, S355J2H GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 |
| Surface | Fusion bond Epoxy coating (FBE), Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement |
| Item Test | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
| Mill Test Certificate | EN 10204/3.1B |

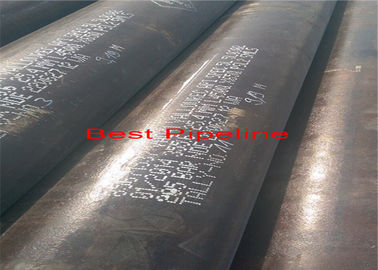

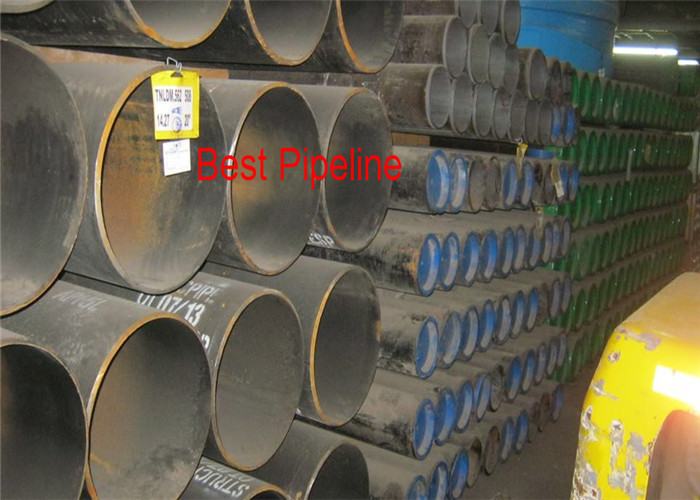

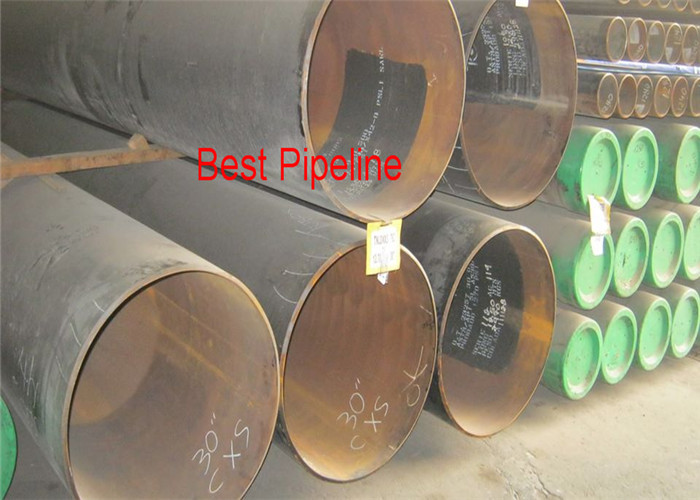

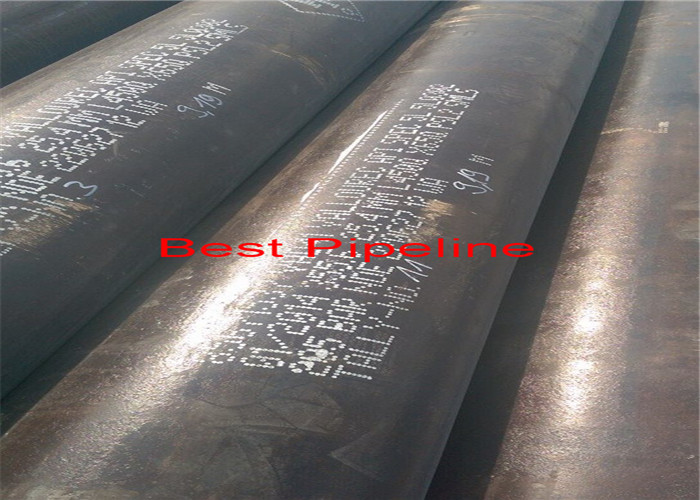

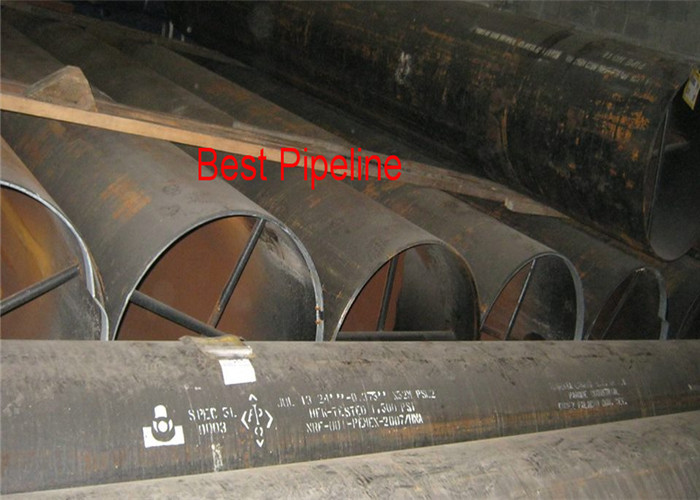

Steel Pipe Pictures
