S460MH 1.8849 EN1092 Forged Steel Flange for High Strength Applications
Product Summary
S460MH (1.8849) forged steel flanges compliant with EN1092 standard. Features high tensile strength (530-720 MPa), yield strength up to 460 MPa, and excellent impact resistance at -20°C. Ideal for structural applications requiring durability and certified performance.
Product Details
Highlight:
1.8849 forged steel flanges
,S460MH forged steel flanges
,en1092 forged steel flanges
Material:
1.8849
Steel Material:
S460MH
Standard:
En1092
Flange:
Forged Steel Flanges
Product Description

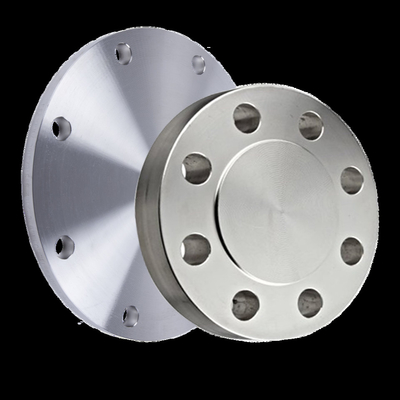

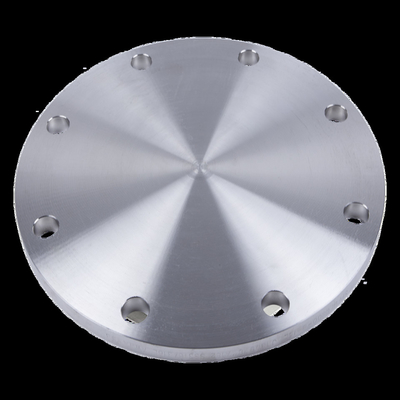

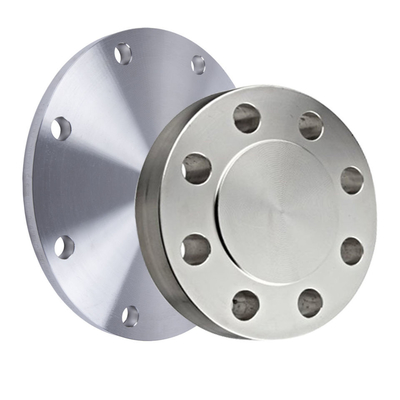

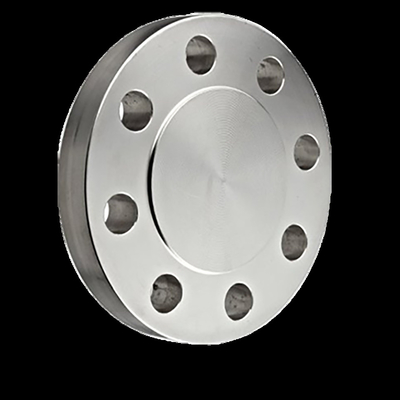

1.8849 EN1092 Flanges S460MH Forged Steel Flanges
Material Specifications
| Grade | S460MH |
| Number | 1.8849 |
| Classification | Structural Steel |
| Standard | EN 10219-1:2006 - Cold formed welded structural hollow sections of non-alloy and fine grain steels |
Chemical Composition (%)
| Element | Content |
|---|---|
| C (Carbon) | max 0.16 |
| Si (Silicon) | max 0.6 |
| Mn (Manganese) | max 1.7 |
| Ni (Nickel) | max 0.3 |
| P (Phosphorus) | max 0.035 |
| S (Sulfur) | max 0.03 |
| Mo (Molybdenum) | max 0.2 |
| V (Vanadium) | max 0.12 |
| N (Nitrogen) | max 0.025 |
| Nb (Niobium) | max 0.05 |
| Ti (Titanium) | max 0.05 |
| Al (Aluminum) | max 0.02 |
| Cr+Cu+Mo < 0.6 | |
Mechanical Properties
| Property | Value | Nominal Thickness |
|---|---|---|
| Rm - Tensile Strength (MPa) | 530-720 | to 40 mm |
| ReH - Minimum Yield Strength (MPa) | 460 | to 16 mm |
| ReH - Minimum Yield Strength (MPa) | 440 | 16-40 mm |
| KV - Impact Energy (J) | 40 | -20°C |
| A - Min. Elongation at Fracture (%) | 17 | to 40 mm |
Property Definitions:
ReH - Minimum yield strength
Rm - Tensile strength
A - Minimum elongation
J - Notch impact test
ReH - Minimum yield strength
Rm - Tensile strength
A - Minimum elongation
J - Notch impact test
Heat Treatment Conditions
- +A - Soft annealed
- +AC - Annealed to achieve spheroidization of the carbides
- +AR - As rolled
- +AT - Solution annealed
- +C - Cold drawn / hard
- +CR - Cold rolled
- +FP - Treated to ferrite-pearlite structure and hardness range
- +I - Isothermal annealing
- +LC - Cold drawn / soft
- +M - Thermo mechanical rolling
- +N - Normalized
- +NT - Normalized and tempered
- +P - Precipitation hardened
- +PE - Peeled
- +QA - Air quenched and tempered
- +QL - Liquid quenched and tempered
- +QT - Quenched and tempered
- +S - Treated to improve shearability
- +SH - As rolled and turned
- +SR - Cold drawn and stress relieved
- +T - Tempered
- +TH - Treated to hardness range
- +WW - Warm worked
- +U - Untreated
