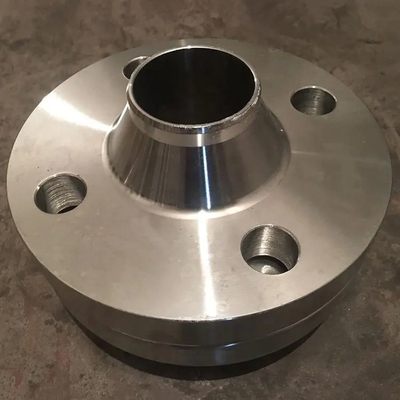

1.0497 Forged Steel Flanges S275NLH Steel Carbon Blind Wn Flanges Structural Steel Wn Flanges
Product Summary
Grade : S275NLH Number: 1.0497 Classification: Structural steel Standard: EN 10210-1: 2006 Hot finished structural hollow sections of non-alloy and fine grain steels. Technical delivery requirements EN 10219-1: 2006 Cold formed welded structural hollow sections of non-alloy and fine grain steels. ...
Product Details
Highlight:
S275NLH forged steel flanges
,1.0497 forged steel flanges
,Carbon Blind forged steel flanges
Material:
S275NLH
Steel Number:
1.0497
Type:
Wn Flanges
Steel:
Structural Steel Wn Flanges
Product Description
| Grade : | S275NLH | ||
| Number: | 1.0497 | ||
| Classification: | Structural steel | ||
| Standard: |
|
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
| max 0.2 | max 0.4 | 0.5 - 1.4 | max 0.3 | max 0.03 | max 0.025 | max 0.3 | max 0.1 | max 0.08 | max 0.015 | max 0.05 | max 0.03 | max 0.02 | max 0.35 | CEV < 0.4 |
Mechanical properties of steel S275NLH (1.0497)
| Nominal thickness (mm): | to 65 |
| Rm - Tensile strength (MPa) | 370-510 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 65 |
| ReH - Minimum yield strength (MPa) | 275 | 265 | 255 |
| KV - Impact energy (J) | -50° 27 |
| Nominal thickness (mm): | to 65 |
| A - Min. elongation at fracture (%) longitud., | 24 |
| Nominal thickness (mm): | to 65 |
| A - Min. elongation at fracture (%) transverse, | 22 |
