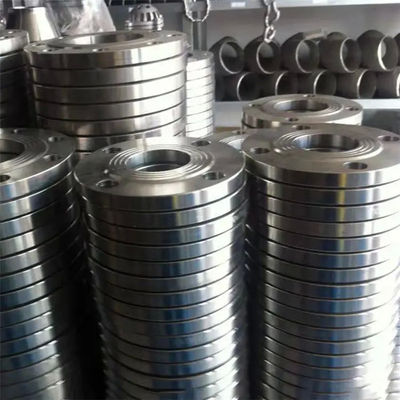

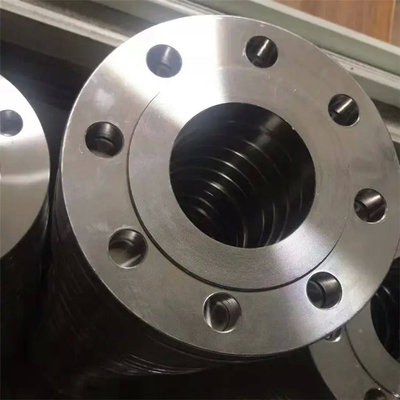

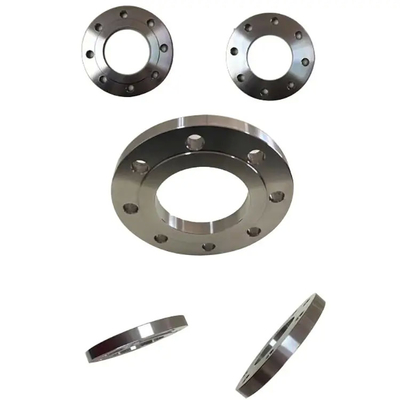

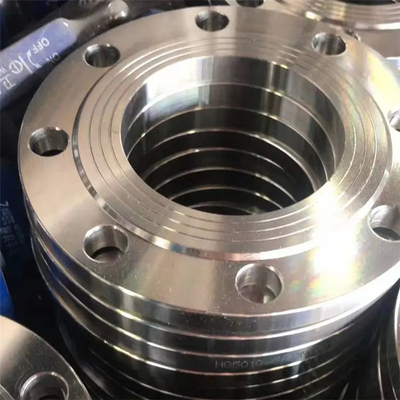

X16CrMo5-1 Nickel Alloy Steel Welding Neck Flange EN 10222-2 1.7366 EN1092 Type 01
Product Summary
X16CrMo5-1 Nickel Alloy Steel flanges (1.7366) are EN1092-1 Type 01 welding neck flanges manufactured to EN 10222-2 standards, offering excellent mechanical properties including tensile strength up to 780 MPa and yield strength up to 420 MPa.
Product Details
Highlight:
X16CrMo5-1 Nickel Alloy Steel flanges
,EN 10222-2WN RF Flange
,Welding neck flanges en1092
Material:
X16CrMo5-1
Steel Number:
1.7366
Standard:
EN1092-1 Type 01
Type:
Welding Neck Flanges
Product Description
X16CrMo5-1 Nickel Alloy Steel Flanges - EN 10222-2 WN RF Flange 1.7366
Product Specifications
Grade:
X16CrMo5-1
Number:
1.7366
Classification:
Steel forgings for pressure purposes
Standard:
EN 10222-2:2000 Steel forgings for pressure purposes. Ferritic and martensitic steels with specified elevated temperature properties
Material Composition
| C | Si | Mn | P | S | Cr | Mo |
|---|---|---|---|---|---|---|
| max 0.18 | max 0.4 | 0.3 - 0.8 | max 0.025 | max 0.015 | 4 - 6 | 0.45 - 0.65 |
Chemical composition % of steel X16CrMo5-1 (1.7366): EN 10222-2-2000
Mechanical Properties
Rm - Tensile strength (MPa) (+A)
410-510
Rm - Tensile strength (MPa) (+NT)
640-780
ReH - Minimum yield strength (MPa) (+A)
205
ReH - Minimum yield strength (MPa) (+NT)
420
KV - Impact energy (J) longitudinal, +20°
40
KV - Impact energy (J) transverse, +20°
27
A - Min. elongation at fracture (%) longitudinal, (+A)
18
A - Min. elongation at fracture (%) longitudinal, (+NT)
16
