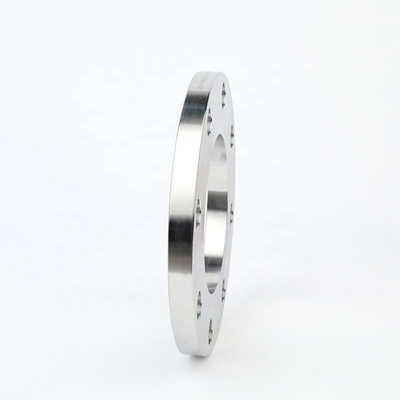

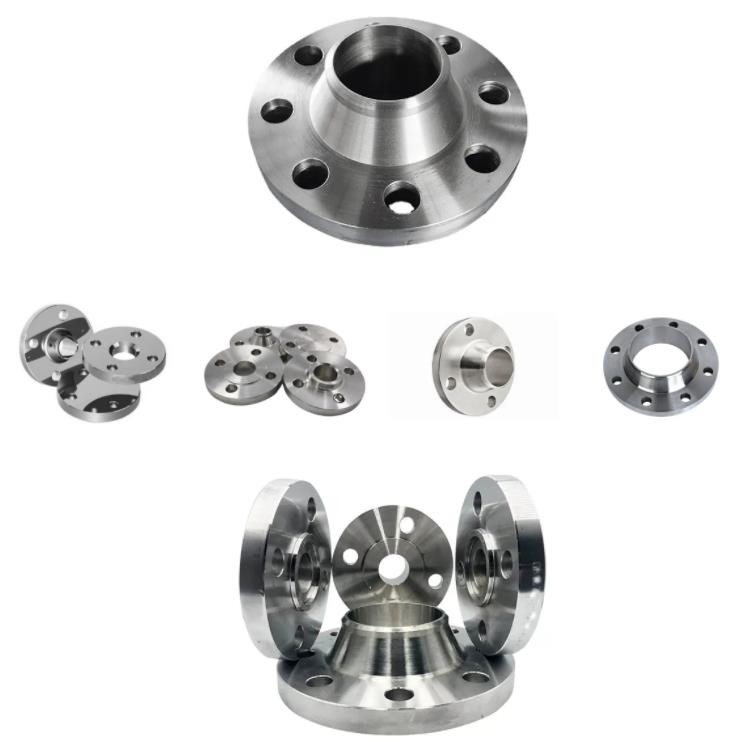

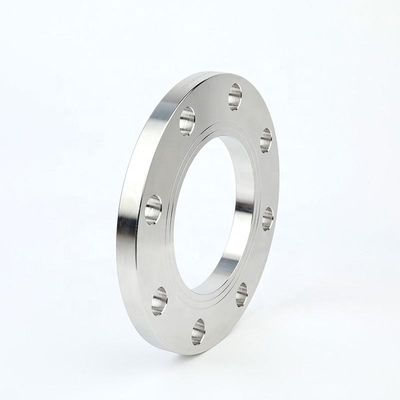

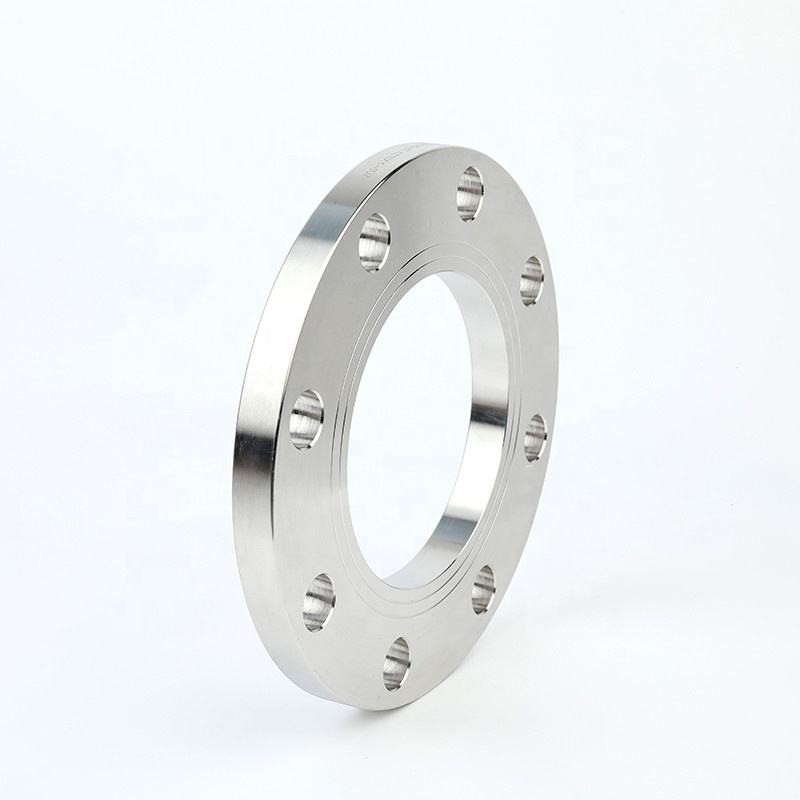

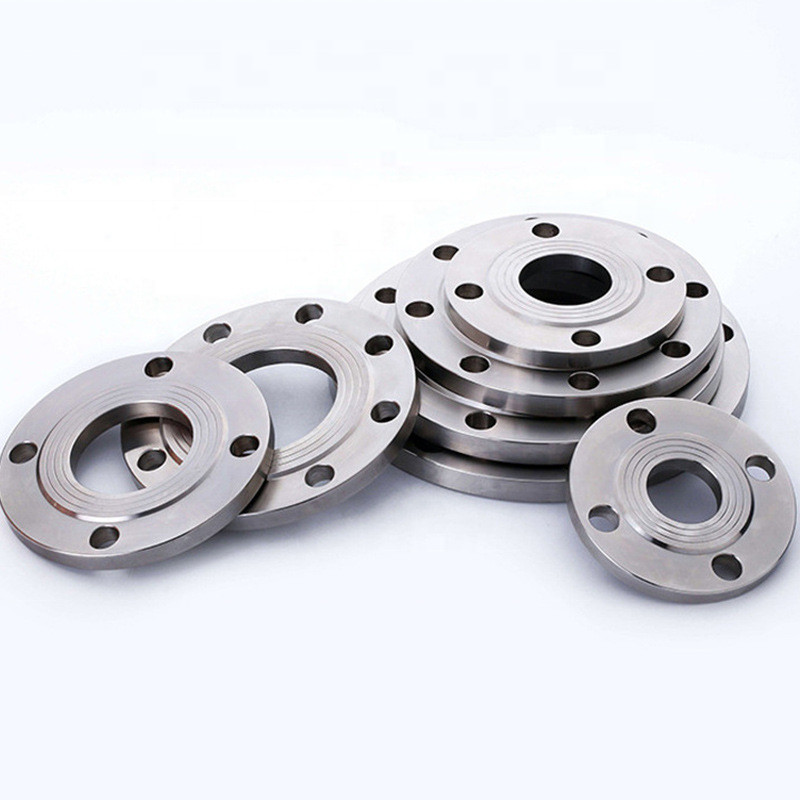

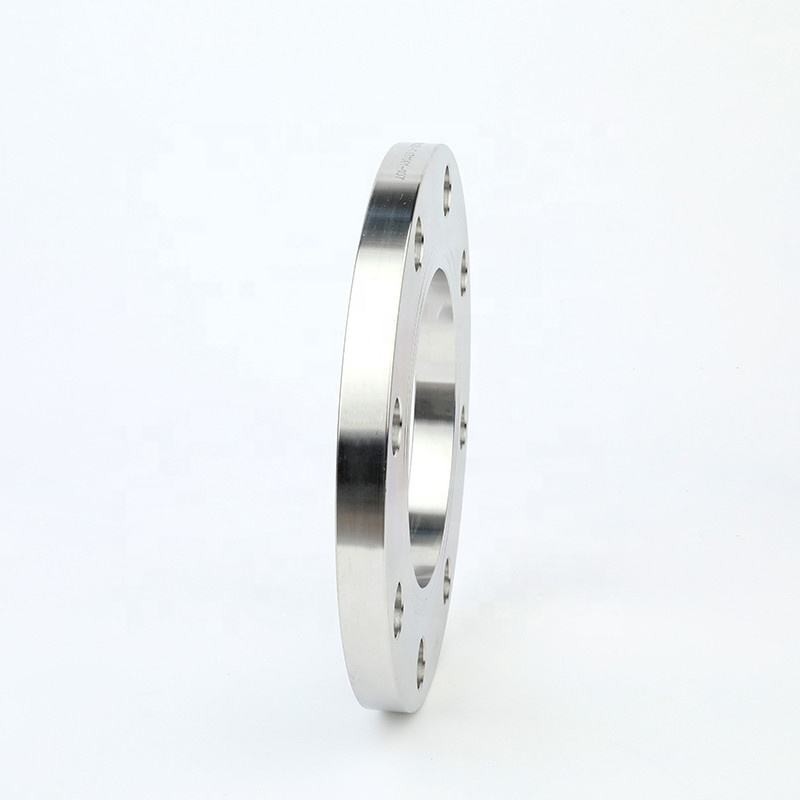

X11CrMo9-1 EN1092-1 Flange 1.7386 Welding Neck Forged Steel Flanges
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X11CrMo9-1 | Steel Number | 1.7386 |
|---|---|---|---|
| Type | Steel Forged Flange | FACE | RF, FF |
| High Light | Forged Steel EN1092-1 Flange,Welding Neck EN1092-1 Flange,Welding Neck Forged Steel Flanges |
||
Product Description
X11CrMo9-1 SO Flange ( 1.7386 ) wn flange EN1092-1 Forged Flanges Steel wn flanges
| Grade : | X11CrMo9-1 | ||
| Number: | 1.7386 | ||
| Classification: | Alloy special steel | ||
| Standard: |
|
| S=<0.01 according EN 10216-2:2014 |
| C | Si | Mn | P | S | Cr | Mo | Al | Cu |
| 0.08 - 0.15 | 0.25 - 1 | 0.3 - 0.6 | max 0.025 | max 0.02 | 8 - 10 | 0.9 - 1.1 | max 0.04 | max 0.3 |
Mechanical properties of steel X11CrMo9-1 (1.7386)
| Rm - Tensile strength (MPa) (+I) | 460-640 |
| Rm - Tensile strength (MPa) (+NT) | 590-740 |
| Rp0.2 0.2% proof strength (MPa) (+I) | 210 |
| Rp0.2 0.2% proof strength (MPa) (+NT) | 390 |
| KV - Impact energy (J) longitud., | +20° 40 |
| KV - Impact energy (J) transverse, | +20° 27 |
| A - Min. elongation at fracture (%) longitud., (+I) | 20 |
| A - Min. elongation at fracture (%) longitud., (+NT) | 18 |
