P355NL1 1.0566 WN Flange EN1092-1 Type 01 Forged SO Flange
Product Summary
P355NL1 SO FLANGES (1.0566) WN FLANGE EN1092 forged flanges Type01 flanges - Non-alloy low temperature quality steel with excellent mechanical properties, certified to EN 10028-3, EN 10216-3, EN 10217-3, and EN 10253-2 standards.
Product Details
Highlight:
P355NL1 So Flanges
,EN1092 Flanges Type 01
,Forged EN1092 Flanges
Material:
P355NL1
Steel Number:
1.0566
Type:
Wn Flanges
Standard:
EN1092-1 Type 01
Product Description

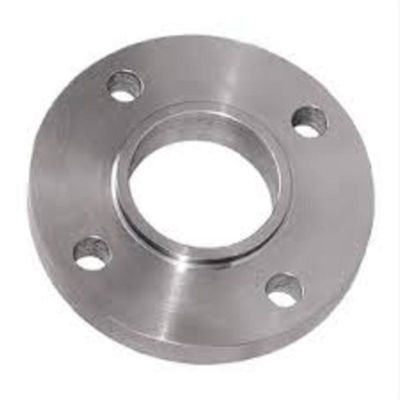

P355NL1 SO Flanges 1.0566 WN Flange Forged EN1092 Flanges Type 01
P355NL1 SO FLANGES (1.0566) WN FLANGE EN1092 forged flanges Type01 flanges
General Properties
Grade:
P355NL1
Number:
1.0566
Classification:
Non-alloy low temperature quality steel
Standard:
EN 10028-3: 2009 Flat products made of steels for pressure purposes. Weldable fine grain steels, normalized
EN 10216-3: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Alloy fine grain steel tubes
EN 10217-3: 2002 Welded steel tubes for pressure purposes. Alloy fine grain steel tubes
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
EN 10216-3: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Alloy fine grain steel tubes
EN 10217-3: 2002 Welded steel tubes for pressure purposes. Alloy fine grain steel tubes
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
Chemical Composition % of Steel P355NL1 (1.0566)
According to EN 10216-3:2014: 0.9≤Mn≤1.7; S≤0.008; N≤0.02; Ti≤0.04;
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| max 0.18 | max 0.5 | 1.1 - 1.7 | max 0.5 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.1 | max 0.012 | max 0.05 | max 0.03 | max 0.02 | max 0.3 | Nb+Ti+V < 0.12 |
Mechanical Properties of Steel P355NL1 (1.0566)
Tensile Strength (Rm) - MPa (+N)
| Nominal thickness (mm) | to 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|
| Rm - Tensile strength (MPa) | 490-630 | 470-610 | 460-600 | 450-590 |
Minimum Yield Strength (ReH) - MPa (+N)
| Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|---|---|
| ReH - Minimum yield strength (MPa) | 355 | 345 | 335 | 315 | 305 | 295 |
Impact Energy (KV) - Transverse (+N)
| Temperature | -40° | -20° | 0° | +20° |
|---|---|---|---|---|
| KV - Impact energy (J) | 27 | 35 | 43-50 | 47-60 |
Impact Energy (KV) - Longitudinal (+N)
| Temperature | -50° | -40° | -20° | 0° | +20° |
|---|---|---|---|---|---|
| KV - Impact energy (J) | 30 | 40 | 50-53 | 65-70 | 70-80 |
Minimum Elongation at Fracture (A) - % (+N)
| Nominal thickness (mm) | to 60 | 60 - 250 |
|---|---|---|
| A - Min. elongation at fracture (%) | 22 | 21 |
Equivalent Grades of Steel P355NL1 (1.0566)
| EU EN | USA | Germany DIN, WNr | France AFNOR | England BS | Italy UNI | Sweden SS | Finland SFS | Inter ISO |
|---|---|---|---|---|---|---|---|---|
| P355NL1 | A737Gr.B | TStE355 | A510AP A510FP1 A530AP E355FP |
224Gr.490 50EE |
FeE355-3 | 2107 | Fe355EP | E355E |
