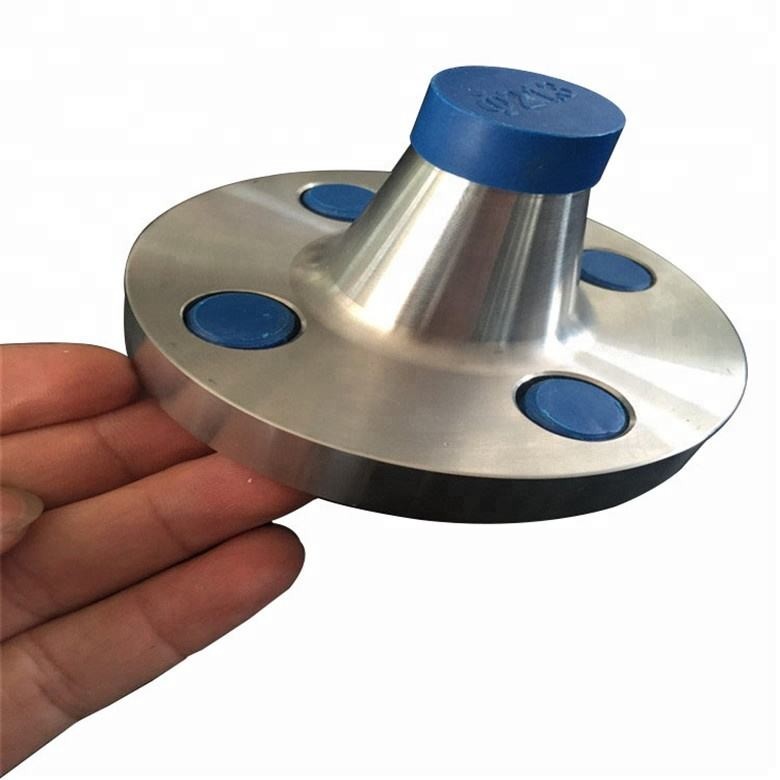

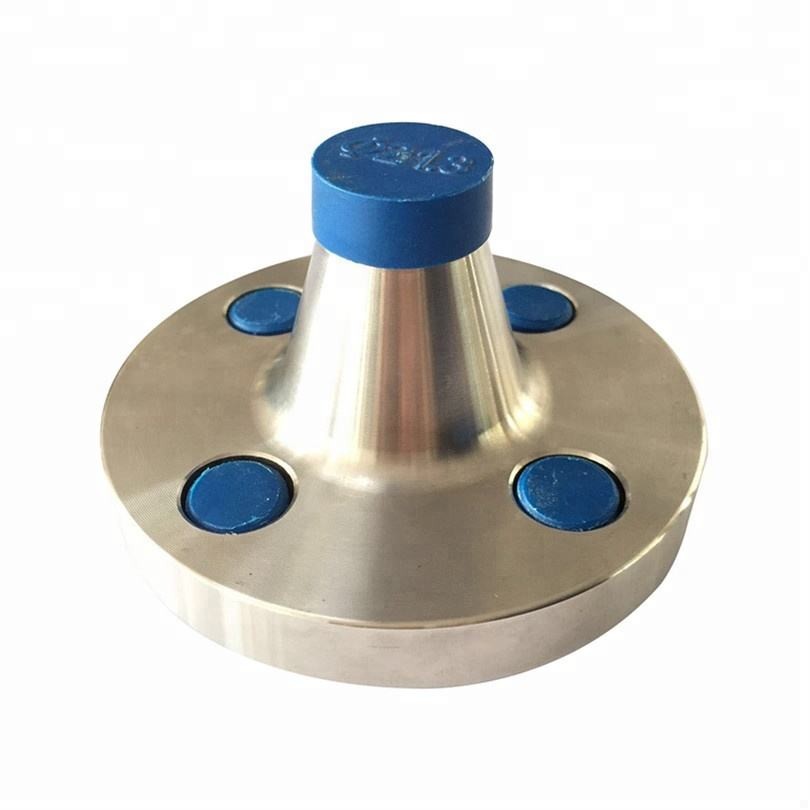

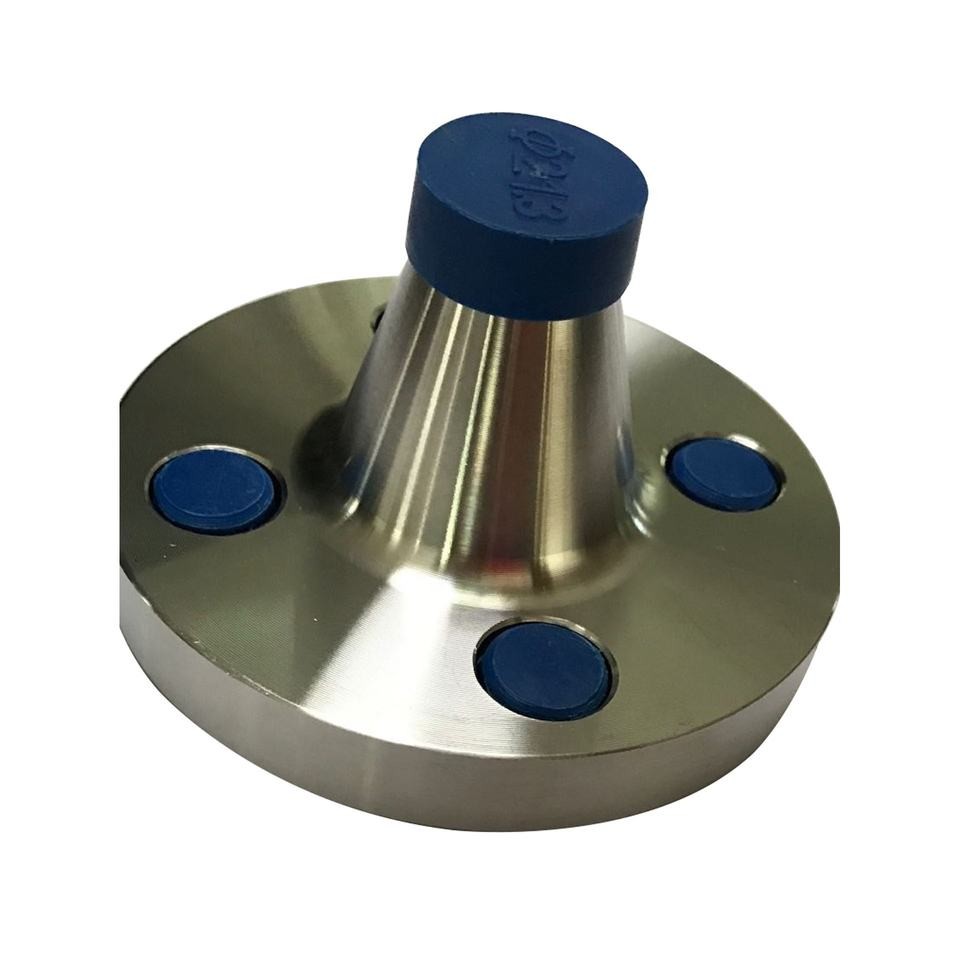

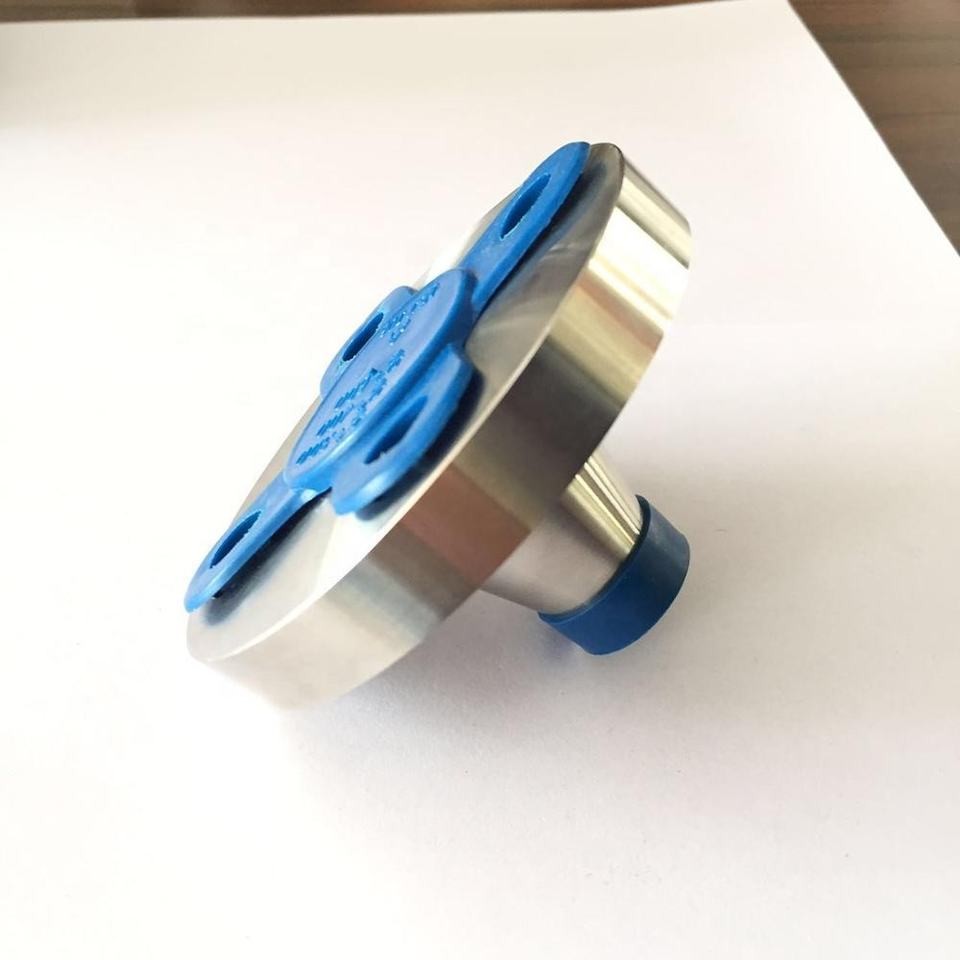

P355N WN Flanges 1.0562 RR / FF Face Steel Forged EN1092 Flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | P355N | Steel Number | 1.0562 |
|---|---|---|---|
| Type | EN1092-1 FORGED FLANGES | FACE | RR, FF |
| High Light | P355N WN flanges,1.0562 EN1092 Flange,WN EN1092 Flange |
||
Product Description
P355N WN flanges ( 1.0562 ) Steel forged flanges EN1092 Steel WN flanges
| Grade : | P355N | ||||
| Number: | 1.0562 | ||||
| Classification: | Non-alloy room temperature quality steel | ||||
| Standard: |
|
Chemical composition % of steel P355N (1.0562): EN 10028-3-2009
| According EN 10216-3:2014: C=<0.2; 0.9=< Mn=<1.7; S=<0.02; N=<0.02; Ti=<0.04; |
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
| max 0.18 | max 0.5 | 1.1 - 1.7 | max 0.5 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.1 | max 0.012 | max 0.05 | max 0.03 | max 0.02 | max 0.3 | Nb+Ti+V < 0.12 |
Mechanical properties of steel P355N (1.0562)
| Nominal thickness (mm): | to 60 | 60 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) (+N) | 490-630 | 470-610 | 460-600 | 450-590 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
| ReH - Minimum yield strength (MPa) (+N) | 355 | 345 | 335 | 315 | 305 | 295 |
| KV - Impact energy (J) transverse, (+N) | -20° 27-30 | 0° 35-40 | +20° 39-50 |
| KV - Impact energy (J) longitud., (+N) | -20° 40-45 | 0° 47-65 | +20° 55-75 |
| Nominal thickness (mm): | to 60 | 60 - 250 |
| A - Min. elongation at fracture (%) (+N) | 22 | 21 |
Equivalent grades of steel P355N (1.0562)
| EU EN | USA - | Germany DIN,WNr | Japan JIS | France AFNOR | England BS | Italy UNI | Spain UNE | China GB | Sweden SS | Finland SFS | Russia GOST | Inter ISO | ||||||||||||||
| P355N |
|
|
|
|
|
|
|
|
|
|
|
|
