10CrMo9-10 1.7380 Alloy Special Steel Forged Flanges EN1092 Flange
Product Summary
10CrMo9-10 EN1092 forged flanges (1.7380) offer high durability with tensile strength 450-630 MPa and yield strength 250-310 MPa. Certified to EN10028-2, EN10216-2, EN10253-2 standards, these alloy steel flanges provide reliable performance in pressure applications with international grade equivalency.
Product Details
Highlight:
EN1092 Forged Flanges
,10CrMo9-10 Forged Steel Flanges
,1.7380 Forged Steel Flanges
Material:
1.7380
Steel Material:
10CrMo910
Standard:
EN1092
Flange:
Forged Flanges
Product Description

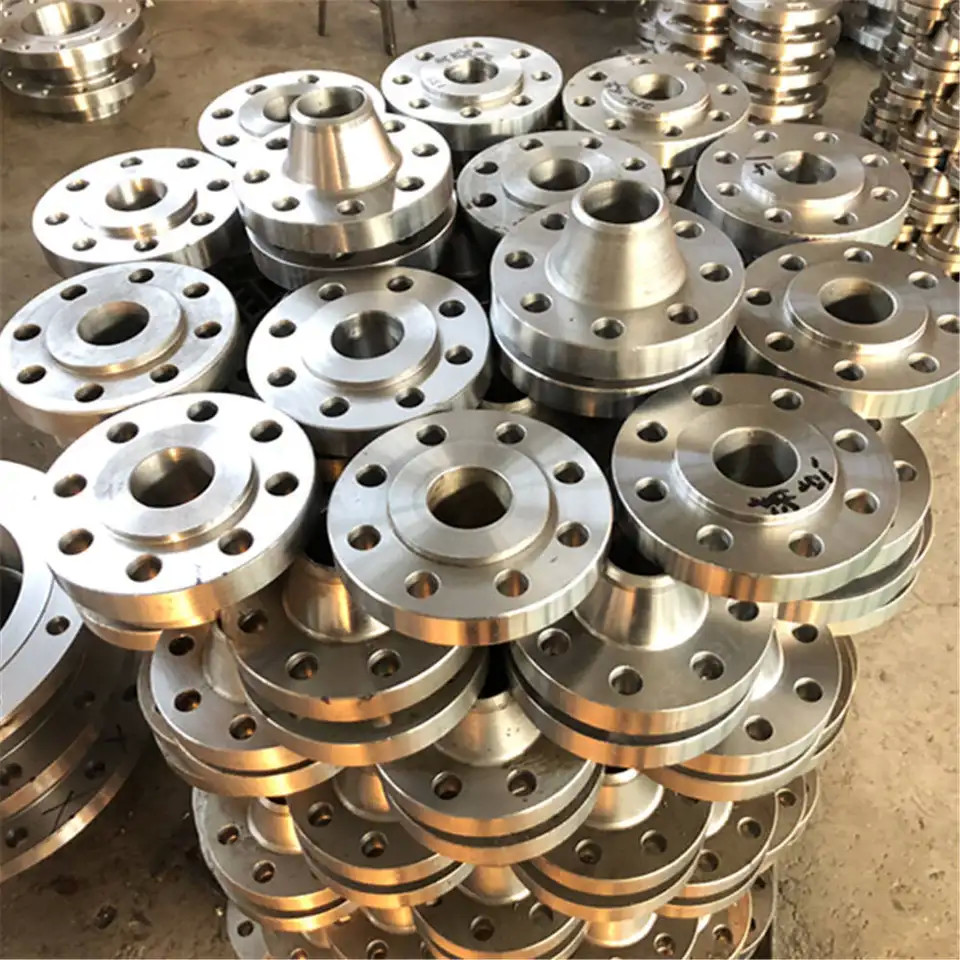

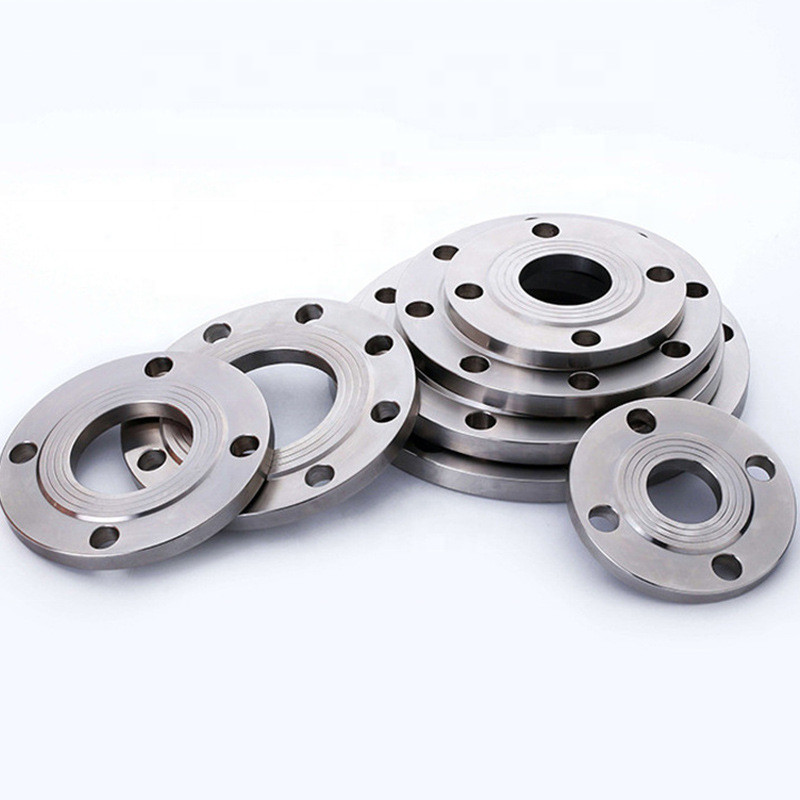

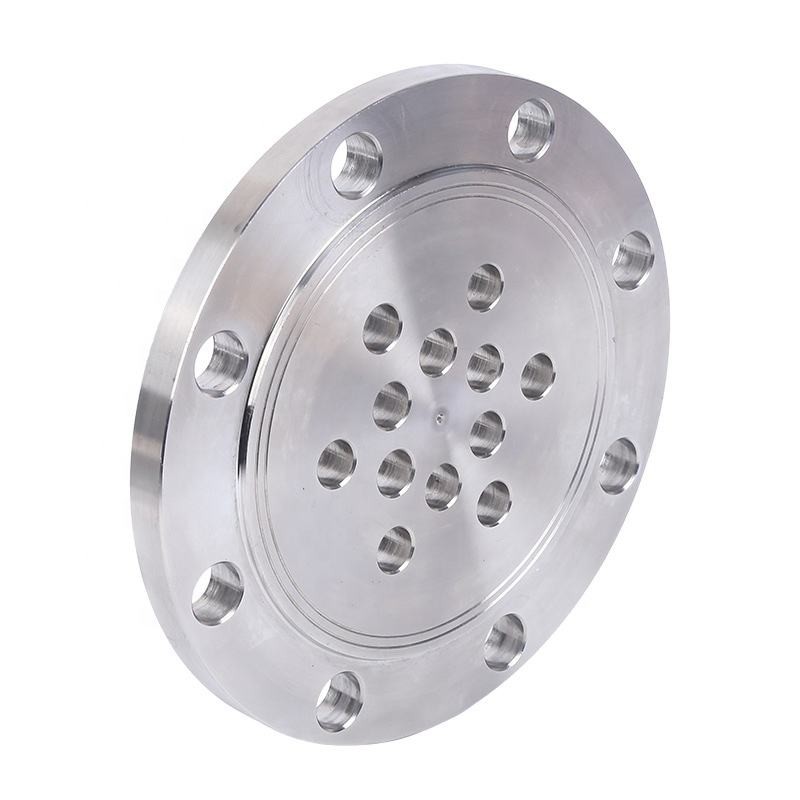

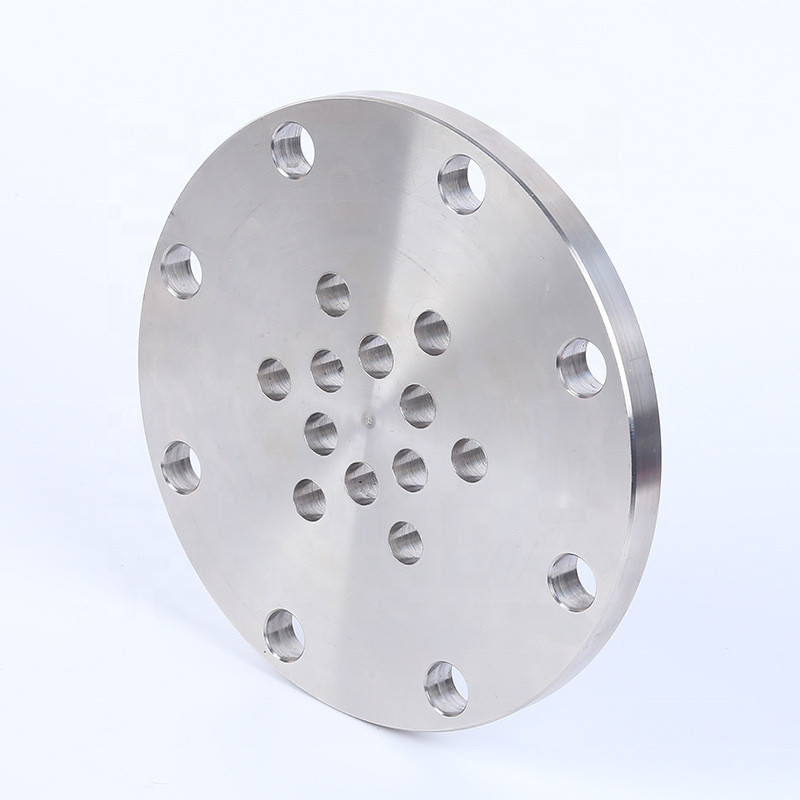

10CrMo9-10 EN1092 Forged Flanges 1.7380 Forged Steel Flanges
Product Overview
10CrMo9-10 forged flanges EN1092 forged flanges 1.7380 forged Steel flanges
Grade: 10CrMo9-10
Number: 1.7380
Classification: Alloy special steel
Density: 7.85 g/cm³
Applicable Standards
- EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties
- EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties
- EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
- EN 10273: 2007 Hot rolled weldable steel bars for pressure purposes with specified elevated temperature properties
Chemical Composition (%) - EN 10028-2-2003
| C | Si | Mn | P | S | Cr | Mo | N | Cu |
|---|---|---|---|---|---|---|---|---|
| 0.08 - 0.14 | max 0.5 | 0.4 - 0.8 | max 0.02 | max 0.01 | 2 - 2.5 | 0.9 - 1.1 | max 0.012 | max 0.3 |
According to EN 10216-2 chemical composition: 0.3 < Mn < 0.7
Mechanical Properties
Tensile Strength (Rm) - MPa
| Nominal thickness (mm) | to 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|
| Rm - Tensile strength | 480-630 | 470-620 | 460-610 | 450-600 |
Minimum Yield Strength (ReH) - MPa
| Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
|---|---|---|---|---|---|---|
| ReH - Minimum yield strength | 310 | 300 | 290 | 280 | 260 | 250 |
0.2% Proof Strength (Rp0.2) - MPa
| Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 60 |
|---|---|---|---|
| Rp0.2 - 0.2% proof strength (+NT) | 280 | 280 | 270 |
Impact Energy and Elongation
| Property | Direction | Value |
|---|---|---|
| KV - Impact energy (J) | Transverse, +20° | 27-31 |
| KV - Impact energy (J) | Longitudinal, +20° | 40 |
| A - Min. elongation at fracture (%) | Longitudinal (+NT) | 22 |
| A - Min. elongation at fracture (%) | Transverse (+NT) | 20 |
International Equivalent Grades
| EU EN | USA | Germany DIN,WNr | Japan JIS | France AFNOR | England BS | Italy UNI | China GB | Sweden SS | Poland PN | Czechia CSN | Austria ONORM | Russia GOST | Inter ISO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10CrMo9-10 | A387Gr.22 Gr.P22 |
10CrMo9-10 | SCMV4 | 10CD9-10 12CD9-10 |
622 622Gr.31 |
10CrMo9-10 12CrMo9-10 |
12CrMo | 2218 | 10H2M | 15313 | 10CrMo9-10KW | 10KH2M | F34 P34 TS34 |
