ASTM SA516 GR70 High Precision Steel Tube Sheet for Heat Exchanger Applications

Basic Properties
Place of Origin: China
Brand Name: Super
Certification: CE, ISO , TUVE , SGS
Model Number: Super 109
Trading Properties
Minimum Order Quantity: 1 pcs
Price: 160usd/pcs
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 10000 pcs in stocks
Tags

seamless alloy steel tube

alloy steel seamless tubes

alloy steel pipe
Product Summary
ASTM SA516 GR70 steel tube sheets for heat exchangers, boilers, and pressure vessels. Features high pressure/temperature resistance, corrosion resistance, and precise CNC machining. Available in various materials with OEM/ODM options and solid export packaging.

Product Details

Highlight:

ASTM SA516 GR70 steel tube sheet

,

heat exchangers condenser tubes

,

alloy steel seamless pipes
Product Name: Steel Tube Sheet
Material: ASTM SA516 GR70
Usage: Complex, Precise, And Essential For Heat Exchange.
STANDARD: ASTM B171 C46200,ASTM SB171 C46200, ASTM B171 C46400,ASTM SB171 C46400 ,EN 1653 CuZn38AlFeNiPbSn
Tube Sheet Referance Specification: Type Lap-Joint Flange (LJ), Socket-welded Flange (SW), Slip-on Flange (SO), Welding-Neck Flange (WN), Threaded Flange (TH), Etc.
Diamater Range: 72.0″ Max OD
Product Description

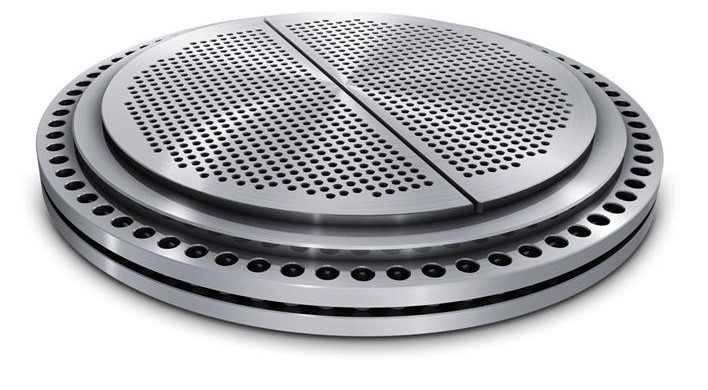

ASTM SA516 GR70 Heat Exchangers Condenser Tubes Steel Tube Sheet

We are professional manufacturers of ASTM A387/A387M ASME SA387 GR.11CL.1 Grade 11, Grade 5, Class 1, Class 2, GR.22 Grade 22 steel baffles, support tube plates, and tube sheets from China.

Product Overview

Tubesheet is widely used in shell and tube heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioning systems, and more. The customized high precision tube sheet is primarily used for chemical containers, supporting and fixing the shell and tube components. The metal material provides excellent rigidity and superior heat conduction performance.

Key Features
  • High gloss surface finish
  • Excellent tube hole surface quality
  • High precision manufacturing
  • High pressure resistance
  • High temperature resistance
  • Corrosion resistance
  • Acid and alkali resistance
  • Long service life
  • Sophisticated surface treatment technology
  • Well-formed structure with excellent performance
Available Materials
  • Copper
  • Stainless steel
  • Titanium
  • Aluminium
  • Carbon steel
  • Brass
  • Various alloy steels
Product Specifications
Product Tube Sheet
Synonyms Tube plate, tube disk, clad tube sheet, tube sheet plate
Quality Standard Produced strictly according to national standards and customer drawings
Material Alloy steel, carbon steel, copper steel
Diameter Range 350mm ~ 2000mm
Thickness Range 45mm ~ 650mm
Weight Range 200kg ~ 6000kg
Connection Type Welding

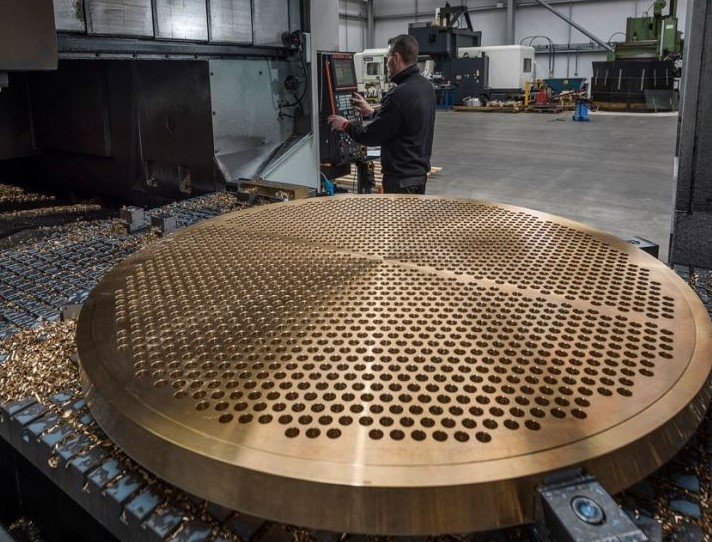

Production Technology High precision CNC lathe cutting machine, drilling machine, argon-arc welding
Nominal Pressure Various pressure standards available
Flanges GB, ANSI, JIS, API, DIN, BS, etc.
Applications Pipes, heat exchangers, boilers, pressure vessels
Packing Wooden box, wooden pallet, or as requested
Additional Service Information
  • Production: OEM and ODM available
  • Quality: Prime grade materials
  • Price: Negotiable
  • Packing: Wooden box, wooden pallet, solid package suitable for ocean and air transportation
  • Delivery: 7-30 days
  • Excellent after-sales service
Available Material Standards
Material Type Standards
Duplex Stainless Steel ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel ASTM/ASME SA182 F304, 304L, F316, 316L, F310, F317L, F321, F347
Carbon Steel ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2
Alloy Steel ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3
Titanium ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16
Copper Nickel ASTM/ASME SB151, UNS 70600 (Cu-Ni 90/10), 71500 (Cu-Ni 70/30)
Brass, Al-brass ASTM/ASME SB152 UNS C10100, C10200, C10300, C10800, C12200
Nickel Alloys ASTM/ASME SB169, SB171, SB564, UNS 2200, UNS 4400, UNS 8825, UNS 6600, UNS 6601, UNS 6625
Alloy 20 ASTM/ASME SB472 UNS 8020
Hastelloy ASTM/ASME SB564, UNS10276 (C 276)
Cladded Materials ASTM/ASME SB898, SB263, SB264 or closer; explosion cladding for 2-in-1 or 3-in-1 materials including Titanium-Steel, Nickel-Steel, Titanium-Copper, Stainless Steel-Carbon Steel, Alloys-Steel, etc.
