DIN 2393 10305-2 Welded Drawn Precision Steel Tubes DIN 2394 10305-3 Rolled

Place of Origin China /Japan
Brand Name Best
Certification API/CE/ISO /TUV/PED
Model Number 1/2''-48''
Minimum Order Quantity 1Pcs
Price 500 usd/Ton

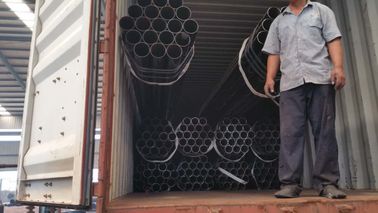

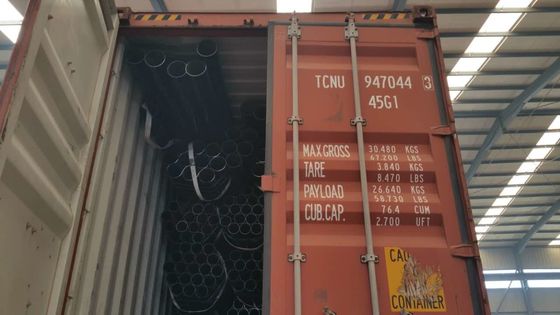

Packaging Details standard export packing or as required
Delivery Time 5-8 working days
Payment Terms L/C/ TT
Supply Ability 1000000 Ton/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard EN 10217-7 TC1 D3/T3/ ASTM A269 Material 1.4404 /316/316L
Size 10inch Wall Thickness : 1.000 Inch Polish Satin,Bright Or Mirror
Out Diameters 6mm~2500mm Application Seawater Heat Exchanger Tubes And Seawater Desalination Plant Pipes
High Light

stainless steel tubing

,

seamless stainless steel tubing

Leave a Message
Product Description



Product Name :Standard :



Langsnaadgelaste roestvaststalen buizen voor de zuivelindustrie volgens DIN 11850
Keuringsrapport volgens EN 10204/3.1B
Longitudinally welded stainless steel dairy-tubes according to DIN 11850
Inspection certificate as per EN 10204/3.1B



Dimensiune: 4-610 mm

Grosimea peretelui: 1.6 – 80 mm

Specificatii/Material:

EN 10216-5

1.4301 / 1.4306 / 1.4948

1.4541 / 1.4878

1.4550

1.4401 / 1.4404 / 1.4435

Molybdenum

1.4571

1.4845

1.4462

1.4501

1.4539

1/8″ – 24″

SCH 10s – SCH XXS



ASTM / ASME A/SA 312/312M

TP 304 / 304L / 304H

TP 321 / 321H

TP 347 / 347H

TP 316 / 316L / 316L – High



TP 316Ti

TP 310S

DUPLEX – UNS S31803

SUPERDUPLEX – UNS S32760

TP 904L – UNS N08904



Boru ve Tubing Ürün Grubu

Dikişsiz Karbon Çeliği, Alaşımlı Çelik, Paslanmaz Borular, Bakır ve Bakır Alaşımlı Borular

Standart: API 5L (PSL1, PSL2), ASME B36.10, ASME B36.19, ASME B31.1, ASME SB111, EN 10208, EN 10216, EN 10217-1, EN 10219

Malzeme:

ASTM A106, ASTM A53, ASTM A179, ASTM A192, ASME SA210, ASTM A213, ASME SA333, ASME SA335, ASTM A513, ASTM A519, St37-44-52

Paslanmaz Çelik: 304/L/H, 316/L/H, 904L

Bakır Alaşımlı: ASTM B111 (C44300, C68700)



Rated for operation at elevated temperatures; used in the manufacture of responsible machinery parts, equipment in the construction of steam turbines, rotor shafts, screws, nuts and used for the construction of pressure equipment.

Technical specifications:

PN EN Werkstoff nr AISI
St41K P265GH 1.0425
St36K P235GH 1.0345
16M 16Mo3 1.5415
15HM 13CrMo4-5 1.7335 P12
10H2M 10CrMo9-10 1.7380 P22
13HMF 13CrMoV9-10 1.7703
21HMF 21CrMoV5-7 1.7709
X10CrMoVNb9-1 X10CrMoVNb9-1 1.4903 P91



Essential at high temperature in the range 850 – 1150°C; is used for the manufacture of industrial furnaces, steam boilers and the installation of crude oil; is also used for the production of rails, grates, covers thermocouples and other elements of industrial furnaces.

Technical specifications:

PN EN Werkstoff nr AISI
H13JS X10CrAlSi13 1.4724
H18JS X10CrAlSi18 1.4742
H24JS X10CrAlSi24 1.4762 446
H25T X8CrTi25 1.4746
H23N18 X8CrNi25-21 1.4845 310 S
H20N12S2 X15CrNiSi20-12 1.4828 309
H25N20S2 X15CrNiSi25-21 1.4841 310



Is applied usually in food, chemical and petrochemical industry to the manufacture of pipes, tanks, cisterns, pump, industrial fittings, vessels and machine parts working under low mechanical load. Widely used in the construction industry to trim exteriors, such as the construction of stairs or railings.

Technical specifications:

PN EN Werkstoff nr AISI
0H18N9 X5CrNi18-10 1.4301 304
0H18N9S X8CrNiS18-9 1.4305 303
  X2CrNi18-9 1.4307 304L
00H17N14M2 X2CrNiMo17-12-2 1.4404 316 L
1H18N9T X6CrNiTi18-10 1.4541 321
H17N13M2T X6CrNiMoTi17-12-2 1.4571 316Ti
00H22N24M4TCu X1NiCrMoCu25-20-5 1.4539 904 L



Suitable for the manufacture durable parts machinery: shaft, bolt, molds for casting, as well as tools for machining, springs and parts of working in clean water or water vapor atmosphere; also used for the manufacture of cutting tools (eg. Shears).

Technical specifications:

PN EN Werkstoff nr AISI
0H13 X6Cr13 1.4000 403
1H13 X12Cr13 1.4006 410
H17 X6Cr17 1.4016 430
2H13 X20Cr13 1.4021 420
3H13 X30Cr13 1.4028 420 F
4H13 X46Cr13 1.4034
H17N2 X17CrNi16-2 1.4057 431
  X14CrMoS17 1.4104 430 F
  X90CrMoV18 1.4112 440 B
H18 X105CrMo17 1.4125 440 C
0H17T X3CrTi17 1.4510 430 Ti



ROZSDAMENTES ÉS SAVÁLLÓ CSŐVEK
Cégünk foglalkozik speciálisabb minőségű és vagy méretű rozsdamentes és saválló termékek köztük duplex, szuper duplex,
szuper ausztenites csövek és csőtermékek beszerzésével is.
Ferrites acélok
Minőségek: 1.4000, 1.4003, 1.4016, 1.4105, 1.4512, 1.4113, 1.4509, 1.4510
Martenzites acélok
Minőségek: 1.4005, 1.4006, 1.4021, 1.4028, 1.4057, 1.4034, 1.4122, 1.4104, 1.4313
Ausztenites acélok
Minőségek: 1.4301,1.4306, 1.4307, 1.4541, 1.4550, 1.4567, 1.4571, 1.4401, 1.4404,1.4436, 1.4539, 1.4305
Ausztenites-ferrites (duplex) acélok
Minőségek: 1.4062, 1.4162, 1.4362, 1.4462, 1.4662, 1.4410, 1.4501, 1.4507
Ferrites, ferrites-martenzites, martenzites hőálló acélok
Minőségek: 1.4720, 1.4724, 1.4742, 1.4749, 1.4762, 1.4512, 1.4761
Ausztenites hőálló acélok
Minőségek: 1.4828, 1.4841, 1.4845, 1.4835, 1.4864, 1.4876, 1.4878


EN 10217-7 TC1 D3/T3 Welded stainless steel tube Quality : 1.4404 WITH ASTM A269 316(L)


What is 1.4404 ?


1.4404/ 1.4401 (ASTM 316/ 316L – ≈ SS2348)


By using 1.4404 (ASTM 316/ 316L – ≈ SS2348) you get a corrosion resistant austenitic stainless steel with good formability. The steel is modified for machining and has very good corrosion resistance. The steel is often used for details within building and construction, process industry.
The steel grade 1.4404 (also called ASTM 316/ 316L and ≈ SS2348) is a stainless ” acid-proof” steel which is easy to machine. The steel has improved machinability by, MAXIVAL®, and it is suitable for production of corrosion resistant products by machining. 1.4404 has a very good corrosion resistance which make it useful within a wide range of areas. It has an improved resistance to pitting and crevice corrosion in environments containing chlorides, due to the addition of moybdenium. It is non-magnetic but may become slightly magnetic after cold working and welding.


Typical application areas for 1.4404:

  • Construction
  • Building
  • Process Industry
  • Reinforcement


Product data sheet 1.4404
If you need further information about the properties of the steel grade, machining and welding:





Specifications : ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V
Dimensions : ASTM, ASME and API
Size : 1/8″NB TO 30″NB IN
ERW 316L Pipes & Tubes : 1/2″ NB – 24″ NB
EFW 316L Pipes & Tubes : 6″ NB – 100″ NB
316L Pipes & Tubes : 1/2″ NB – 16″ NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Specialized in : Large Diameter Size
Length : Single Random, Double Random & Cut Length.
Form : Round, Square, Rectangular, Hydraulic Etc
End : Plain End, Beveled End, Treaded





Stainlesss Steel 316L Pipes & Tubes Equivalent Grades





STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3




TP 316L Stainless Steel Pipes & Tubes Chemical Composition :




Grade C Mn Si P S Cr Mo Ni N
316L min. 16.0 2.00 10.0
max. 0.08 2.00 0.75 0.045 0.03 18.0 3.00 14.0 0.10




Physical properties :




Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740





ASTM A312 / A213 SS TP 316L Pipes & Tubing Mechanical properties:




Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40% 95 217
