API Casing Pipe Copper Coated with API 5CT Standard and Wall Thickness 0.078"-0.625" for Oil and Gas Applications
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API
Model Number:
114.3 - 508 mm
Trading Properties
Minimum Order Quantity:
1 Tons
Price:
600 usd/ton
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,
Supply Ability:
100000Ton/Month
Product Summary
ERW API Casing Pipe with copper coating, wall thickness 0.078"-0.625". Meets API 5CT/5D standards in grades J55, K55, N80. Available in 2-3/8"-4-1/2" diameters for oil industry applications with various length options.
Product Details
Highlight:
steel casing pipe
,seamless casing pipe
Standard:
API 5CT, API 5D
Grade:
K55, J55, L80-1 ,N80,C90,C95, P110, T95
Out Diameter:
API J55, API K55, API L80,
Application:
Oil Pipe
Surface:
Copper Coated
Specification:
2 3/8"-4 1/2"*0.167"-0630"
Product Description
ERW API Casing Pipe Copper Coated Wall Thickness 0.078"-0.625" 5CT J55 K55 N80
Product Overview
OCTG (Oil Country Tubular Goods) pipes designed for conducting combustible materials in oil, gas, and petrochemical industries. Available in longitudinally welded and spirally welded types, these products can be combined with isolation and coatings for enhanced performance.
Technical Specifications
Size Assortment: Ø 21.3-3500 mm
Standards: API 5CT, API 5D, EN 10208-1, EN 10208-2
Steel Grades: K55, J55, L80-1, N80, C90, C95, P110, T95, L245MB/NB, L290MB/NB, L360 MB/NB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA, L360GA
Lengths: 4-13 (20) m
Product Types:
- Ordinary casing
- Anti-collapse casing
- Anti-corrosion casing
- High-strength casing
- Tubing steel pipe
- Drill pipe
Detailed Specifications
| Type | Label (in) | Outside Diameter (mm) | Wall Thickness (mm) | Grade | Type of Thread | Length |
|---|---|---|---|---|---|---|
| Casing | 4-1/2 | 114.30 | 5.21-8.56 | H40-P110 | STC, LC, BC | 4.88-13.5m |
| 5 | 127.00 | 5.59-12.70 | ||||
| 5-1/2 | 139.70 | 6.20-22.22 | ||||
| 6-5/8 | 168.28 | 7.32-12.06 | ||||
| 7 | 177.80 | 5.87-22.22 | ||||
| Oil Pipe | 2-3/8 | 60.32 | 4.24-8.53 | H40-P110 | NU, EU | 6.1-12.8m |
| 2-7/8 | 73.02 | 5.51-11.18 | ||||
| 3-1/2 | 88.90 | 5.49-13.46 | ||||
| 4 | 101.60 | 5.74-15.49 | ||||
| 4-1/2 | 114.30 | 6.88-16.00 |
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Hardness |
|---|---|---|---|
| J55 | 379-522 | >517 | - |
| K55 | 379-552 | >655 | - |
| N80 | 552-758 | >689 | - |
| L80-1 | 552-655 | >689 | 23-241 |
| C90 | 621-724 | >689 | 25.4-255 |
| C95 | 655-758 | >724 | - |
| T95 | 655-758 | >724 | 25.4-255 |
| P110 | 758-965 | >862 | - |

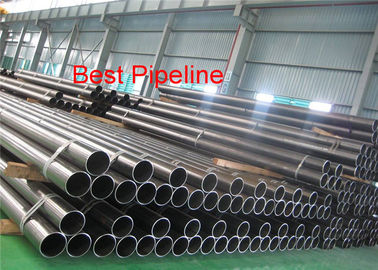

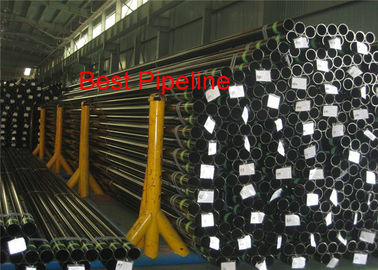

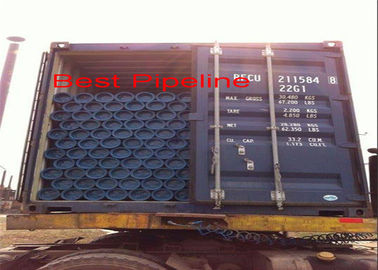

Product Image
