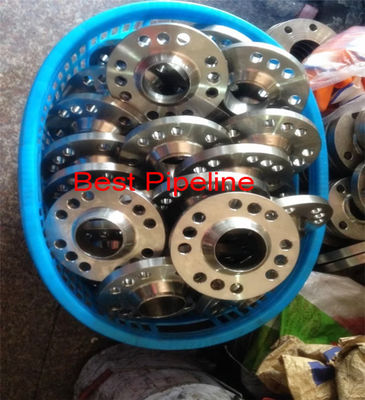

304L Material Lap Joint Flange with 300LBS Pressure and DIN 2631-PN 6 Forged Steel Flange

Basic Properties
Place of Origin: China
Brand Name: Best
Certification: API/CE/ISO/PED
Model Number: 1/2''-48''
Trading Properties
Minimum Order Quantity: 1 Pcs
Price: 1 usd/pcs
Payment Terms: L/C/ TT
Supply Ability: 100000 Ton/Year
Tags

stainless steel flanges

carbon steel forged flanges

weld neck flanges
Product Summary
Lap joint forged steel flanges (304L material, 300LBS pressure) for easy assembly/disassembly of piping systems. Available in DIN 2631-PN 6 to DIN 2638-PN 160 standards with various sizes and pressure ratings.

Product Details

Highlight:

weld neck flanges

,

stainless steel flanges
Name: Lap Joint Flange
Pressure: 300LBS
Material: 304L
Place Of Origin: China
Model Number: RC-BL Flange
Type: Forged Steel Flanges
Product Description
Lap Joint Forged Steel Flanges Art. Nr. 2631-2638 DIN 2631-PN 6 Bis DIN 2638-PN 160
Product Overview

Product Name: Lap Joint Flange
Pressure: 300 lbs
Material: 304L
Construction: Forged Steel Flanges

A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.

Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.

Pressure Ratings

Forged steel flanges are made in seven primary ratings:

  • Class 150
  • Class 300
  • Class 400
  • Class 600
  • Class 900
  • Class 1500
  • Class 2500
Flange Types
  • Weld Neck Flanges
  • Slip-On Flanges
  • Lap Joint Flanges
  • Threaded Flanges
  • Socket Weld Flanges
  • Blind Flanges
Technical Specifications
Size Range
½" TO 54"
Pressure Rating
150#, 300#, 600#, 900#, 1500#, 2500#
Standards
ASME B 16.5, ASME B 16.47, API 6A
Type
SORF, WNRF, SWRF, BLRF, Threaded, etc.
Available Materials
  • Carbon Steel: A-105, A-350 LF2 [NACE + HIC] etc.
  • Alloy Steel: F-5, F-9, F-11, F-22, F-91 etc.
  • Stainless Steel: SS 304, SS 304L, SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, etc.
  • Duplex SS: F-51, F-55
  • High Strength Steel: A694 Gr 52, 60, 65, 70, AISI 4130, 4140
  • Nickel Alloys: Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.
Special Components

Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

150lb Flange Dimensions
Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
1521.488.934.911.147.615.960.3415.9
2027.098.442.912.752.415.969.8415.9
2534.1107.950.814.355.617.579.4415.9
3242.9117.563.515.957.120.688.9415.9
4048.4127.073.017.561.922.298.4415.9
5060.3152.492.119.063.525.4120.6419.0
6573.0177.8104.822.269.828.6139.7419.0
8088.9190.5127.023.869.830.2152.4419.0
90101.6215.9139.723.871.431.7177.8819.0
100114.3228.6157.223.876.233.3190.5819.0
125141.3254.0185.723.888.936.5215.9822.2
150165.1279.4215.925.488.939.7241.3822.2
150168.3279.4215.925.488.939.7241.3822.2
200219.1342.9269.928.6101.644.4298.4822.2
250273.1406.4323.830.2101.649.2361.91225.4
300323.9482.6381.031.7114.355.6431.81225.4
350355.6533.4412.734.9127.057.1476.21228.6
400406.4596.9469.936.5127.063.5539.71628.6
450457.2635.0533.439.7139.768.3577.81631.7
