304L Material Blank Flange and Lap Joint Flange with 300LBS Pressure and PN 6 to PN 100 Ratings
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ISO/PED
Model Number:
1/2''-48''
Trading Properties
Minimum Order Quantity:
1 Pcs
Price:
1 usd/pcs
Payment Terms:
L/C/ TT
Supply Ability:
100000 Ton/Year
Product Summary
Lap joint flange made from forged 304L steel, rated for 300 lbs pressure. Durable forged construction ensures reliability in piping systems. Available in various sizes and pressure ratings to meet industrial needs.
Product Details
Highlight:
stainless steel flanges
,carbon steel forged flanges
Name:
Lap Joint Flange
Pressure:
300LBS
Material:
304L
Place Of Origin:
China
Model Number:
RC-BL Flange
Type:
Forged Steel Flanges
Product Description
BLANK FLANGES Facing A / B1 Type 05 PN 6 PN 10 PN 16 PN 25 PN 40 PN 63 PN 100
Product Overview
Product Name: Lap Joint Flange
Pressure: 300 lbs
Material: 304L
Manufacturing: Forged Steel Flanges
A flange is defined as a plate-type device, typically round, that attaches to the end of a pipe, fitting, valve, or other object to facilitate assembly and disassembly of piping systems.
Flanges are manufactured in various materials to match the pipe and fitting materials. While some are made of cast iron, the majority are forged carbon steel.
Pressure Ratings
Forged steel flanges are available in seven primary pressure ratings:
- Class 150
- Class 300
- Class 400
- Class 600
- Class 900
- Class 1500
- Class 2500
Flange Types
- Weld Neck Flanges
- Slip-On Flanges
- Lap Joint Flanges
- Threaded Flanges
- Socket Weld Flanges
- Blind Flanges
Forged Flanges Specifications
| Size | ½" TO 54" |
| Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Material |
Carbon Steel: A-105, A-350 LF2 [NACE + HIC] etc. Alloy Steel: F-5, F-9, F-11, F-22, F-91 etc. Stainless Steel: SS 304, SS 304L, SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, etc. Duplex SS: F-51, F-55 High Strength Steel: A694 Gr 52, 60, 65, 70, AISI 4130, 4140 Nickel Alloys: Monel 400, Inconel 625, Inconel 825, Alloy 20, etc. |
| Standards | ASME B 16.5, ASME B 16.47, API 6A |
| Type | SORF, WNRF, SWRF, BLRF, Threaded etc. |
| Specials | Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc. |
150lb Flange Dimensions
| Nominal Bore | Pipe OD A | Flange dia. B | Raised Face dia. D | Flange Thickness T | Welding Neck | Slip-on Screwed Socket-weld | Bolt PCD | No. of Bolts | Bolt Hole dia. |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 21.4 | 88.9 | 34.9 | 11.1 | 47.6 | 15.9 | 60.3 | 4 | 15.9 |
| 20 | 27.0 | 98.4 | 42.9 | 12.7 | 52.4 | 15.9 | 69.8 | 4 | 15.9 |
| 25 | 34.1 | 107.9 | 50.8 | 14.3 | 55.6 | 17.5 | 79.4 | 4 | 15.9 |
| 32 | 42.9 | 117.5 | 63.5 | 15.9 | 57.1 | 20.6 | 88.9 | 4 | 15.9 |
| 40 | 48.4 | 127.0 | 73.0 | 17.5 | 61.9 | 22.2 | 98.4 | 4 | 15.9 |
| 50 | 60.3 | 152.4 | 92.1 | 19.0 | 63.5 | 25.4 | 120.6 | 4 | 19.0 |
| 65 | 73.0 | 177.8 | 104.8 | 22.2 | 69.8 | 28.6 | 139.7 | 4 | 19.0 |
| 80 | 88.9 | 190.5 | 127.0 | 23.8 | 69.8 | 30.2 | 152.4 | 4 | 19.0 |
| 90 | 101.6 | 215.9 | 139.7 | 23.8 | 71.4 | 31.7 | 177.8 | 8 | 19.0 |
| 100 | 114.3 | 228.6 | 157.2 | 23.8 | 76.2 | 33.3 | 190.5 | 8 | 19.0 |
| 125 | 141.3 | 254.0 | 185.7 | 23.8 | 88.9 | 36.5 | 215.9 | 8 | 22.2 |
| 150 | 165.1 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 150 | 168.3 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 200 | 219.1 | 342.9 | 269.9 | 28.6 | 101.6 | 44.4 | 298.4 | 8 | 22.2 |
| 250 | 273.1 | 406.4 | 323.8 | 30.2 | 101.6 | 49.2 | 361.9 | 12 | 25.4 |
| 300 | 323.9 | 482.6 | 381.0 | 31.7 | 114.3 | 55.6 | 431.8 | 12 | 25.4 |
| 350 | 355.6 | 533.4 | 412.7 | 34.9 | 127.0 | 57.1 | 476.2 | 12 | 28.6 |
| 400 | 406.4 | 596.9 | 469.9 | 36.5 | 127.0 | 63.5 | 539.7 | 16 | 28.6 |
| 450 | 457.2 | 635.0 | 533.4 | 39.7 | 139.7 | 68.3 | 577.8 | 16 | 31.7 |

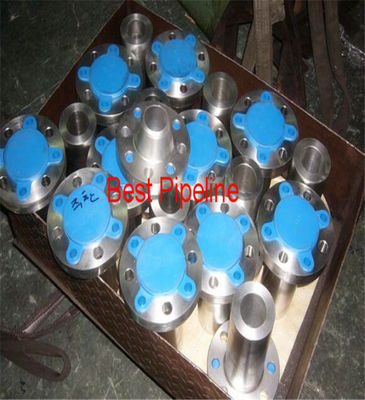

Product Images
