LOOSE PLATE FLANGES Facing A Type 02 PN 6 PN 10 PN 16 PN 25 PN 40

Place of Origin China
Brand Name Best
Certification API/CE/ISO/PED
Model Number 1/2''-48''
Minimum Order Quantity 1 Pcs
Price 1 usd/pcs

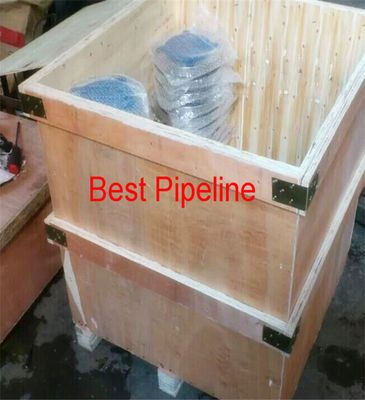

Packaging Details Standard export seaworthy package,by wooden box,or as required
Delivery Time 5-8 working days
Payment Terms L/C/ TT
Supply Ability 100000 Ton/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Lap Joint Flange Pressure 300LBS
Material 304L Place Of Origin China
Model Number RC-BL Flange Type Forged Steel Flanges
High Light

stainless steel flanges

,

carbon steel forged flanges

Leave a Message
Product Description

Product Name : Lap joint Flange Pressure : 300 lbs Material : 304L Made by Forged Steel Flanges


A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.


Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.


Forged steel flanges are made in seven primary ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500




Flange Types

· Weld Neck Flanges

· Slip-On Flanges

· Lap Joint Flanges

· Threaded Flanges

· Socket Weld Flanges

· Blind Flanges


Forged Flanges

Size : ½" TO 54"
Pressure Rating : 150#, 300#, 600#, 900#, 1500#, 2500#
Material :
Carbon Steel : A-105, A-350 LF2 [NACE + HIC] etc..
Alloy Steel : F-5, F-9, F-11, F-22, F-91 etc.
Stainless Steel : SS 304, SS 304L SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, Etc..
Duplex SS : F-51, F-55
High Strength Steel : A694 Gr 52, 60, 65, 70, AISI 4130, 4140
Nickel Alloys : Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.



Standards : ASME B 16.5, ASME B 16.47, API 6A
Type : SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials : Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.



150lb Flange

Length through Hub Y

Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
15 21.4 88.9 34.9 11.1 47.6 15.9 60.3 4 15.9
20 27.0 98.4 42.9 12.7 52.4 15.9 69.8 4 15.9
25 34.1 107.9 50.8 14.3 55.6 17.5 79.4 4 15.9
32 42.9 117.5 63.5 15.9 57.1 20.6 88.9 4 15.9
40 48.4 127.0 73.0 17.5 61.9 22.2 98.4 4 15.9
50 60.3 152.4 92.1 19.0 63.5 25.4 120.6 4 19.0
65 73.0 177.8 104.8 22.2 69.8 28.6 139.7 4 19.0
80 88.9 190.5 127.0 23.8 69.8 30.2 152.4 4 19.0
90 101.6 215.9 139.7 23.8 71.4 31.7 177.8 8 19.0
100 114.3 228.6 157.2 23.8 76.2 33.3 190.5 8 19.0
125 141.3 254.0 185.7 23.8 88.9 36.5 215.9 8 22.2
150 165.1 279.4 215.9 25.4 88.9 39.7 241.3 8 22.2
  168.3 279.4 215.9 25.4 88.9 39.7 241.3 8 22.2
200 219.1 342.9 269.9 28.6 101.6 44.4 298.4 8 22.2
250 273.1 406.4 323.8 30.2 101.6 49.2 361.9 12 25.4
300 323.9 482.6 381.0 31.7 114.3 55.6 431.8 12 25.4
350 355.6 533.4 412.7 34.9 127.0 57.1 476.2 12 28.6
400 406.4 596.9 469.9 36.5 127.0 63.5 539.7 16 28.6
450 457.2 635.0 533.4 39.7 139.7 68.3 577.8 16 31.7




   Flange Pictures

  LOOSE PLATE FLANGES  Facing A Type 02 PN 6 PN 10 PN 16 PN 25 PN 40 0


LOOSE PLATE FLANGES  Facing A Type 02 PN 6 PN 10 PN 16 PN 25 PN 40 1
